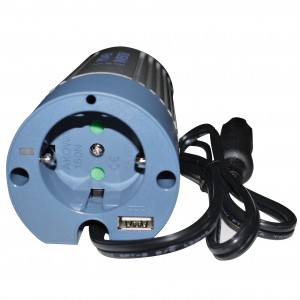

12 V / 220 V - 150 W
Art. N°: ACMA612
Size (mm) :
Ø 65 x 170
Main
| : Output signal | Modified sine wave |
| : Power Source | 10 to 15 V CC |
| : Max. load current | 15 A |
| : Standby current | < 0,25 A |
| : Output voltage | 220 V (AC) +/- 2% |
| : Output frequency | 50 Hz / 60 Hz (+/- 2 %) |
| : Continuous Output Power | 150 W |
| : Peak output power | 300 W |
| : USB power supply | 5 V DC 500 mA (Max.) |
| : Efficiency | 90 % |
| : Thermal protection | 60° C ± 5°C |
| : Overload protect | |
| : Short circuit protection | |
| : too low battery voltage alarm | 10 ± 0,5 V DC |
| : Low battery cut-off | 9,5 ± 0,5 V DC |
| : Overvoltage protection | |
| : Reverse polarity protection | Yes (by fuse) |
| : Input fuse | 15 A |
| : Size (mm) | Ø 65 x 170 |
| : Weight | 480 g |
| : Output jack |  ,  |
