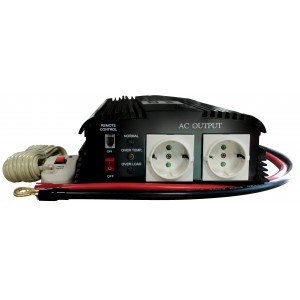

12 V / 220 V - 1700 W
Art. N°: ACMA866
Size (mm) :
458 x 210 x 85
Main
| : Output signal | Modified sine wave |
| : Power Source | 10 to 15 V CC |
| : Max. load current | 150 A |
| : Standby current | < 0,6 A |
| : Output voltage | 220 V (AC) +/- 2% |
| : Output frequency | 50 Hz / 60 Hz (+/- 2 %) |
| : Continuous Output Power | 1500 W |
| : Temporary output power (30 min) | 1700 W |
| : Peak output power | 3000 W |
| : Efficiency | 85 ~ 90 % |
| : Thermal protection | 60° C ± 5°C |
| : Overload protect | |
| : Short circuit protection | Auto resume after solve short problem |
| : too low battery voltage alarm | 10 ± 0,5 V DC |
| : Low battery cut-off | 9,5 ± 0,5 V DC |
| : Overvoltage protection | 15.5 ± 0,5 V DC |
| : Reverse polarity protection | Yes (by fuse) |
| : Input fuse | 30 A (8 pcs) |
| : Size (mm) | 458 x 210 x 85 |
| : Weight | 5,5 Kg |
