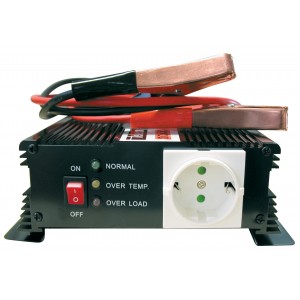

24 V / 220 V - 600 W
Art. N°: ACMA716
Size (mm) :
213 x 200 x 70
Main
| : Output signal | Modified sine wave |
| : Power Source | 20 to 30 V CC |
| : Max. load current | 30 A |
| : Standby current | < 0,35 A |
| : Output voltage | 220 V (AC) +/- 2% |
| : Output frequency | 50 Hz / 60 Hz (+/- 2 %) |
| : Continuous Output Power | 600 W |
| : Peak output power | 1500 W |
| : Efficiency | 85 ~ 90 % |
| : Thermal protection | 60° C ± 5°C |
| : Overload protect | |
| : Short circuit protection | |
| : too low battery voltage alarm | 20 ± 0,8 V DC |
| : Low battery cut-off | 19 ± 0,8 V DC |
| : Overvoltage protection | |
| : Reverse polarity protection | Yes (by fuse) |
| : Input fuse | 20 A (3 pcs) |
| : Size (mm) | 213 x 200 x 70 |
| : Weight | 2 kg |
| : Output jack |  |
