R/WYOMING 7MM new

Ref.: AMMI909
1/4 wave
1,1/1 PreAdjustable
+ 2 dBi
280 Watt P.E.P
1200 kHz (120 cx)
0.065 kg
680 mm
Thread M7
Fiber / graphite


Specifications

Antenna type: 1/4 wave
Impedance: 50 Ohms
Frequency: 26-28 MHz
Polarization: Vertical
S.W.R. value: 1,1/1 PreAdjustable
Gain: + 2 dBi
Maximum power: 280 Watt P.E.P
Band width / Number of channels: 1200 kHz (120 cx)
Weight: 0.065 kg
Length: 680 mm

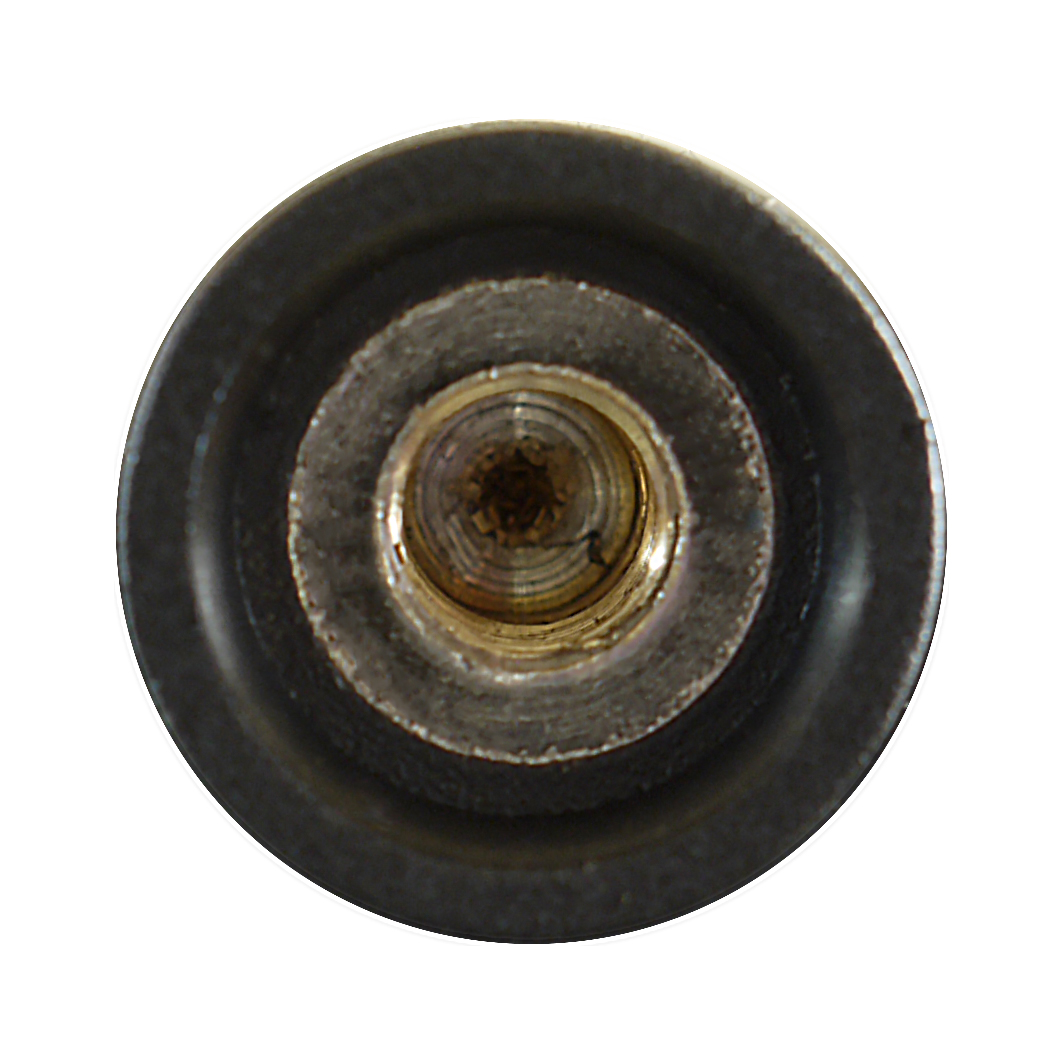

Base type: Thread M7
Whip: Fiber / graphite

Photos

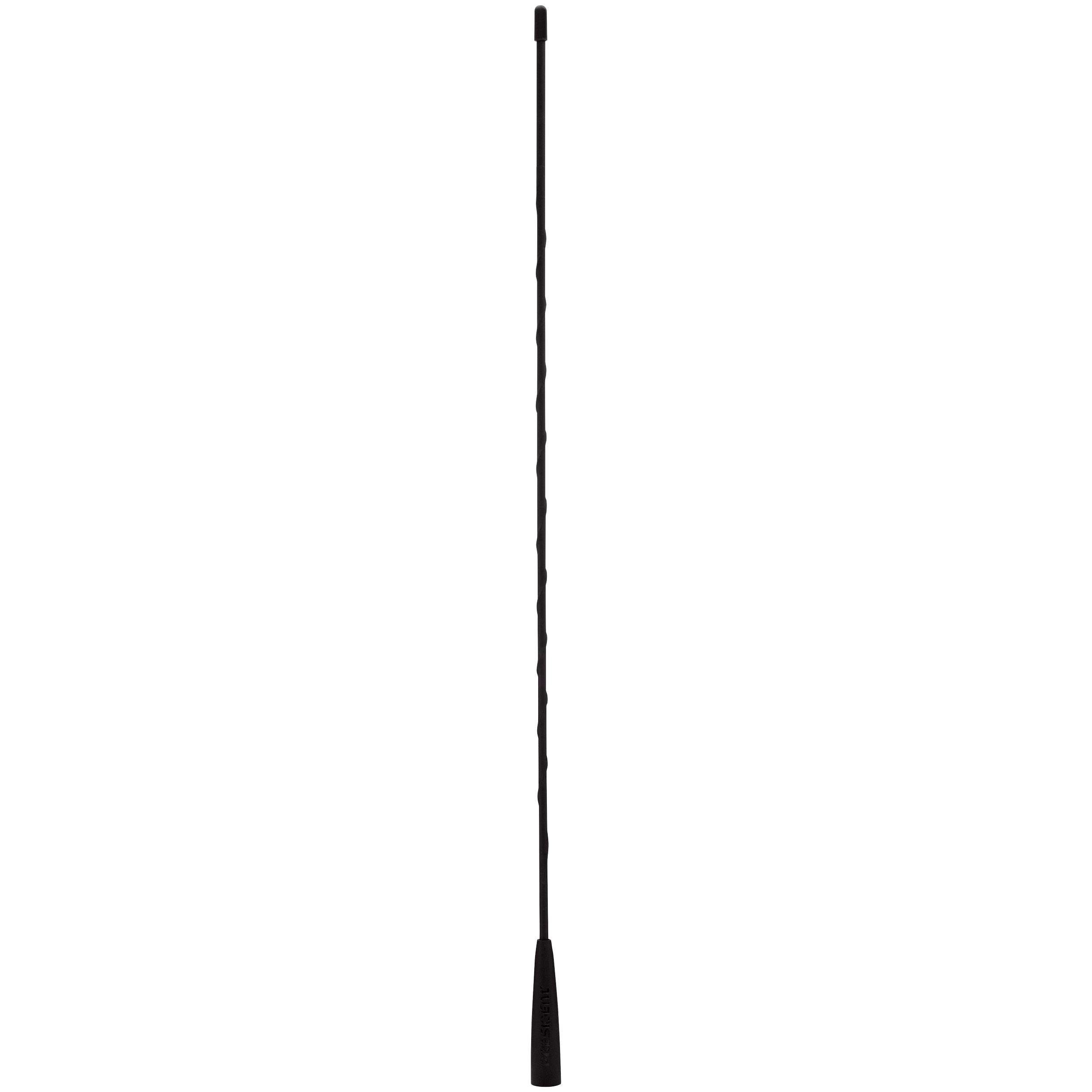

R/WYOMING 7MM

R/WYOMING 7MM

123.72Kb

Download

R/WYOMING 7MM

R/WYOMING 7MM

344.75Kb

Download
