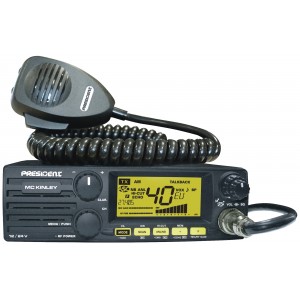

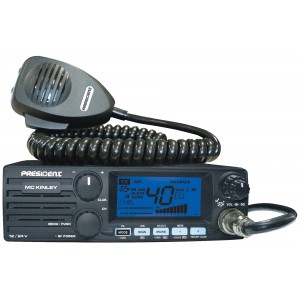

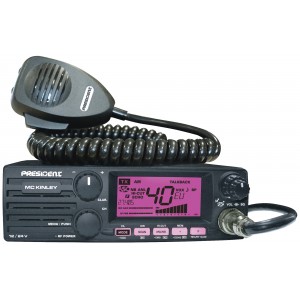

MC KINLEY
Art. N°: TXPR600
Size (mm) :
170 (W) x 150 (D) x 52 (H)
DIN Size :
Supply :
12 V / 24 V
AM :
FM :
SSB :
Memory :
3
Scan :
channels , memories
Filter ANL :
Filter NB :
Filter HI-CUT :
⬤ ⬤ ⬤ ⬤ ⬤ ⬤ ⬤
Main

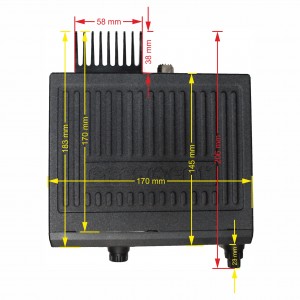

| : Size (mm) | 170 (W) x 150 (D) x 52 (H) |
| : DIN Size | |
| : Weight | 1 kg |
| : Accessories supplied | 1 microphone UP/DOWN and its hanger , 1 mounting bracket with fixing screws , power cord with fuse |
| : Antenna socket | SO-239 |
| : Antenna impedance | 50 ohms |
| : Multiconfiguration | EU / U / D / PL / IN |
| : Number of channels | 40 |
| : Frequency ranges | from 26.965 MHz to 27.405 MHz |
| : Power supply | 13.2 V / 26.4 V |
| : Microphone plug | front (6 pins) |
| : Compatible microphone type | Electret , Dynamic |
| : External Vox microphone jack | |
| : Front loudspeaker | |
| : External loudspeaker jack | |
| : Public address | |
| : External HP PA socket | |
| : Display | LCD multifunction |
| : Dimmer | |
| : Channel display | |
| : Frequencies display | |
| : S-meter | Digital |
| : Modulation modes | AM / FM / USB / LSB |
| : Volume adjustment and ON/OFF | |
| : Squelch | Manual squelch |
| : ASC | |
| : Channel selector | Rotary |
| : Mode switch | |
| : F / Menu function key | |
| : Repeater / Relay (only D band) | |
| : Key Beep | , Switchable |
| : Roger beep | , Switchable |
| : Tone | |
| : Memory | 3 |
| : Channel preselection | 2 , emergency channel (EMG) programmable |
| : Span | |
| : Dual watch | |
| : Scan | channels , memories |
| : RF Power | |
| : RF Gain | |
| : Mike-Gain | |
| : Clarifier | |
| : Talkback | |
| : Vox | |
| : Automatic SWR meter | |
| : SWR (Power Reading /SWR) | |
| : Echo | |
| : TOT | |
| : Filter ANL | |
| : Filter NB | |
| : Filter HI-CUT |
Transmission
| :Frequency allowance | ± 300 Hz |
| :Carrier power | 4 W (AM/FM) / 12 W (USB/LSB) |
| :Transmission interference | < 4 nW (-54 dBm) |
| :Audio response | 300 Hz to 3 kHz |
| :Emitted power in the adj. channel | < 20 μW |
| :Microphone sensitivity | 3 mV |
| :Drain | 3 A (with modulation) |
| :Modulated signal distortion | 1.8% |
Reception
| :Max. sensitivity at 20 dB sinad | 0.5 µV - 113 dBm (AM/FM) / 0.28 µV - 118 dBm (USB/LSB) |
| :Frequency response | 300 Hz to 3 kHz |
| :Adjacent channel selectivity | 60 dB |
| :Maximum audio power | 3 W |
| :Squelch sensitivity | min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm |
| :Frequency image rejection rate | 60 dB |
| :Intermediate frequency rej. rate | 70 dB |
| :Drain | 400 mA nominal / 1000 mA max. |
