JERRY
Art. N°: TXPR612
Size (mm) :
152 (H) x 66.5 (W) x 37 (D)
Supply :
7,4 V (conf. portable) / 12 V (conf. mobile)
AM :
FM :
Scan :
channels
Scan Skip :
Filter ANL :
Filter NB :
Filter HI-CUT :
Never use two antennas at the same time, as this may damage the device and reduce its performance.
⬤
Main
| : Size (mm) | 152 (H) x 66.5 (W) x 37 (D) |
| : Weight | 305 g (with battery, without antenna) |
| : Flashlight (LED) | |

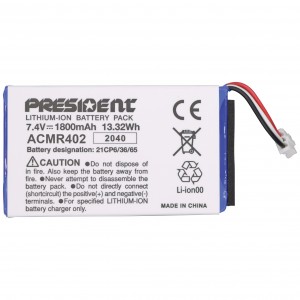

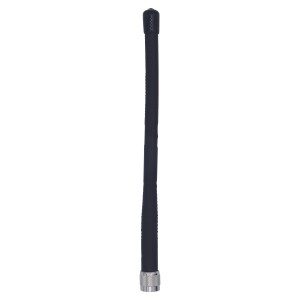

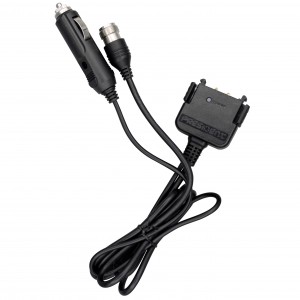

| : Accessories supplied | 1 Flexible antenna , battery Li-Ion , 1 Mobile adapter , 1 Fuse , User manual |
| : Antenna socket | S-20 |
| : Antenna impedance | 50 ohms |
| : Multiconfiguration | EU / U / D / PL / IN |
| : Number of channels | 40 |
| : Frequency ranges | from 26.965 MHz to 27.405 MHz |
| : Power supply | 7.4 V (Handheld configuration) / 13.2 V (Mobile configuration) |
| : Microphone plug | jack Ø2.5 |
| : Front loudspeaker | |
| : External loudspeaker jack | |
| : Loud speaker | 16 ohms, 1 W |
| : Display | LCD multifunction |
| : Channel display | |
| : Frequencies display | |
| : S-meter | Digital |
| : Modulation modes | AM / FM |
| : Volume adjustment and ON/OFF | |
| : Squelch | Manual squelch |
| : ASC | |
| : Channel selector | Up / down |
| : Mode switch | |
| : F / Menu function key | |
| : Key Beep | , Switchable |
| : Roger beep | , Switchable , 6 tones |
| : Key locking | |
| : Tone | |
| : Channel preselection | 2 , emergency channel (EMG) programmable |
| : Dual watch | |
| : Scan | channels |
| : Scan Skip | |
| : Vox | |
| : TOT | |
| : Filter ANL | |
| : Filter NB | |
| : Filter HI-CUT | |
| : Noise Gate | |
| : Monitor |
Transmission
| :Frequency allowance | ± 200 Hz |
| :Carrier power | 4 W (AM/FM) |
| :Transmission interference | < 4 nW (-54 dBm) |
| :Audio response | 300 Hz to 3 kHz |
| :Emitted power in the adj. channel | < 20 μW |
| :Microphone sensitivity | 7 mV |
| :Drain | 1,8 A max. |
| :Modulated signal distortion | 2% |
Reception
| :Max. sensitivity at 20 dB sinad | 0.5 μV - 113 dBm (AM) / 0.35 μV - 116 dBm (FM) |
| :Frequency response | 300 Hz to 3 kHz |
| :Adjacent channel selectivity | 60 dB |
| :Maximum audio power | 1 W |
| :Squelch sensitivity | min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm |
| :Frequency image rejection rate | 60 dB |
| :Intermediate frequency rej. rate | 70 dB |
| :Drain | Mode ECO |
