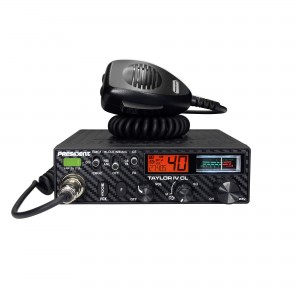

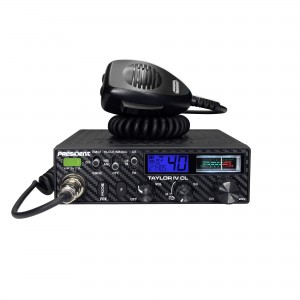

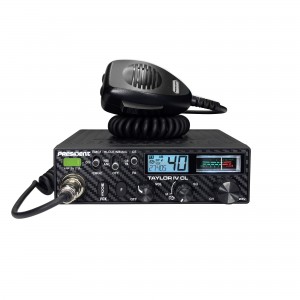

TAYLOR IV CL
Art. N°: TXPR423
Size (mm) :
150 (W) x 165 (D) x 45 (H)
Supply :
12 V / 24 V
AM :
FM :
P CHANNELS :
Scan :
channels
Filter ANL :
Filter NB :
Filter HI-CUT :
NRC :
Le TAYLOR IV CL fait partie de notre nouvelle série Carbon Line, avec une façade au design carbone unique et des fonctionnalités supplémentaires pour une expérience encore plus complète.
⬤ ⬤ ⬤ ⬤ ⬤ ⬤ ⬤
Main
| : Size (mm) | 150 (W) x 165 (D) x 45 (H) |
| : Weight | 750 g |
| : Accessories supplied | 1 microphone UP/DOWN and its hanger , 1 mounting bracket with fixing screws , power cord with fuse |
| : Antenna socket | SO-239 |
| : Antenna impedance | 50 ohms |
| : Multiconfiguration | EU / U / D / PL / IN |
| : Number of channels | 40 |
| : Frequency ranges | from 26.965 MHz to 27.405 MHz |
| : Power supply | 13.2 V / 26.4 V |
| : Microphone Up/Down | Activate / Deactivate |
| : Microphone plug | front (6 pins) |
| : Compatible microphone type | Electret , Dynamic |
| : Compatible REMOTE BT MIKE / REMOTE MIKE | |
| : External Vox microphone jack | |
| : External loudspeaker jack | |
| : Public address | |
| : External HP PA socket | |
| : USB socket (front) | 5 V / 2,1 A |
| : Display | LCD multifunction |
| : Dimmer | |
| : Channel display | |
| : Frequencies display | |
| : S-meter | Vu-meter |
| : Modulation modes | AM / FM |
| : Volume adjustment and ON/OFF | |
| : Squelch | Manual squelch |
| : ASC | |
| : Channel selector | Rotary |
| : Mode switch | |
| : P CHANNELS | |
| : F / Menu function key | |
| : Key Beep | , Switchable |
| : Roger beep | , Switchable |
| : Channel preselection | 2 , emergency channel (EMG) programmable |
| : Scan | channels |
| : Talkback | |
| : Vox | |
| : Automatic SWR meter | |
| : SWR (Power Reading /SWR) | |
| : TOT | |
| : Filter ANL | |
| : Filter NB | |
| : Filter HI-CUT | |
| : NRC |
Transmission
| :Frequency allowance | ± 200 Hz |
| :Carrier power | 4 W (AM/FM) |
| :Transmission interference | < 4 nW (-54 dBm) |
| :Audio response | 300 Hz to 3 kHz |
| :Emitted power in the adj. channel | < 20 μW |
| :Microphone sensitivity | 3 mV |
| :Drain | 1.7 A (with modulation) |
| :Modulated signal distortion | 2% |
Reception
| :Max. sensitivity at 20 dB sinad | 0.5 μV - 113 dBm (AM/FM) |
| :Frequency response | 300 Hz to 3 kHz |
| :Adjacent channel selectivity | 60 dB |
| :Maximum audio power | 3 W |
| :Squelch sensitivity | min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm |
| :Frequency image rejection rate | 60 dB |
| :Intermediate frequency rej. rate | 70 dB |
| :Drain | 500 mA nominal / 800 mA max. |
