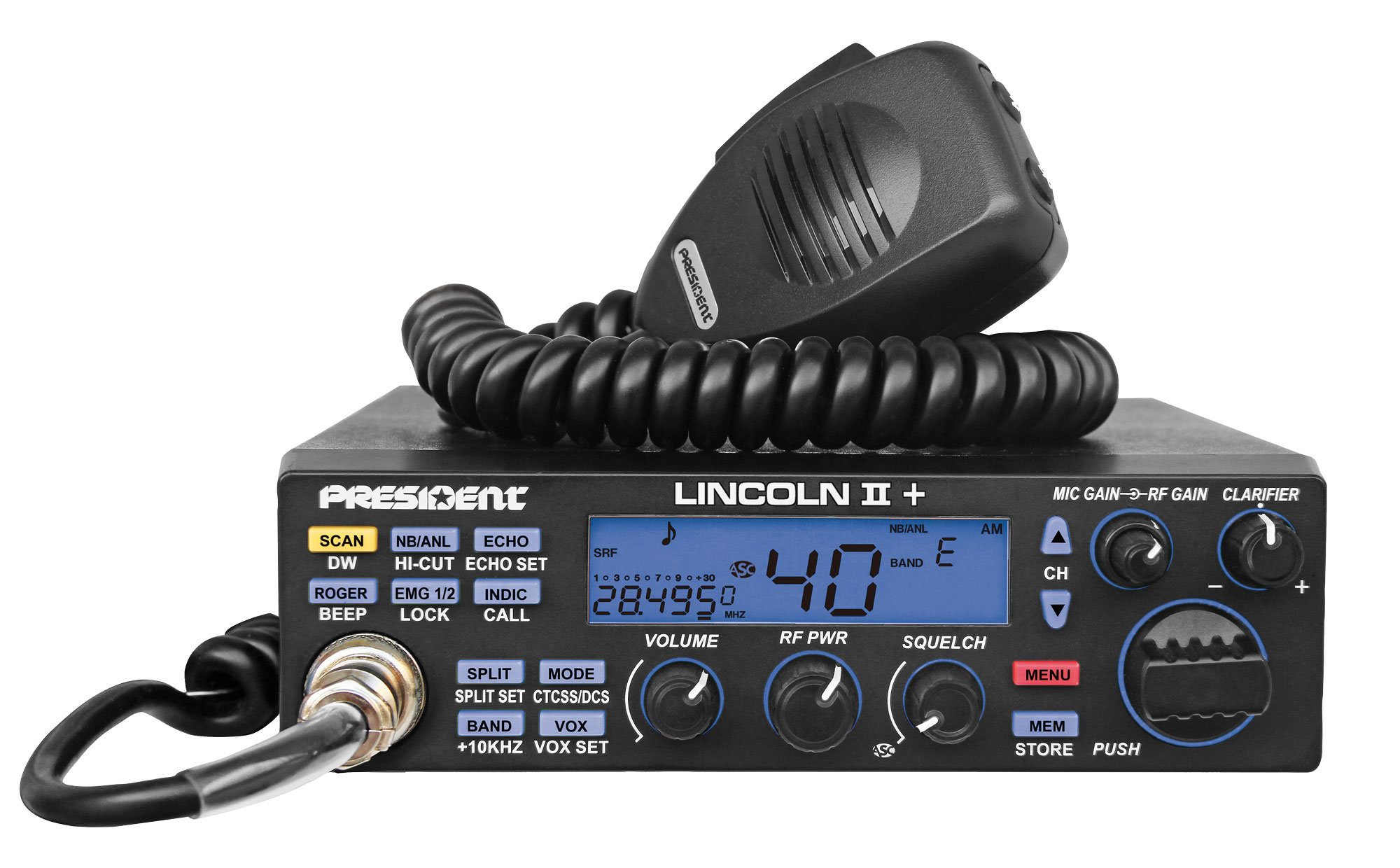

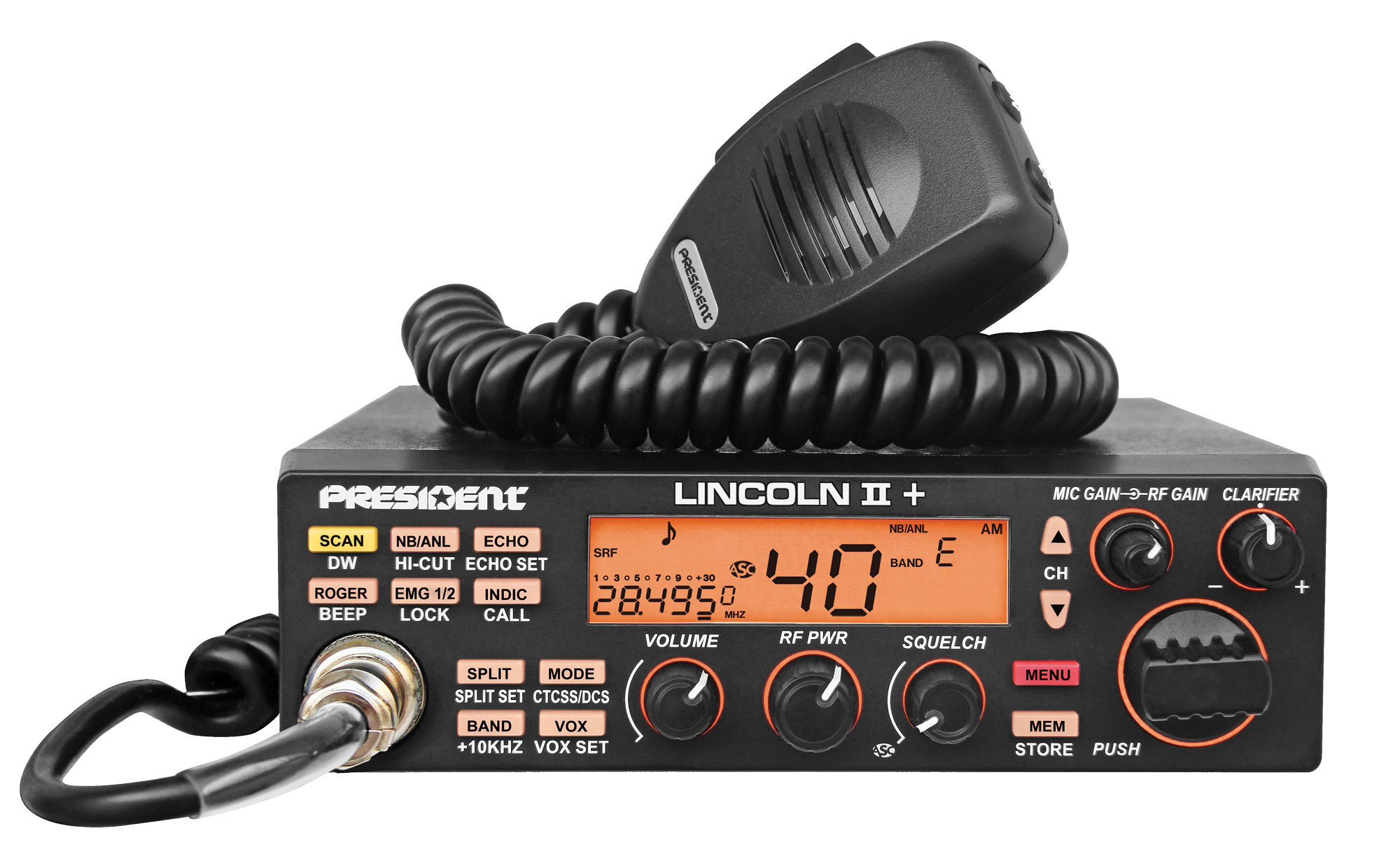

LINCOLN II +

Art. N°: TXSR041
Size (mm) : 170 (W) x 250 (D) x 52 (H) DIN Size : Supply : 12 V AM : FM : SSB : CW : Memory : 6 Scan : channels Filter ANL : Filter NB : Filter HI-CUT :

Features

: Size (mm)   170 (W) x 250 (D) x 52 (H)
: DIN Size
: Weight   1,4 kg
: Accessories supplied   1 microphone UP/DOWN and its hanger , 1 mounting bracket with fixing screws , power cord with fuse
: Antenna socket   SO-239
: Antenna impedance   50 ohms
: Multiconfiguration   EU / U / D / PL / IN
: Frequency ranges   from 24.890 Mhz to 24.990 Mhz and from 28.000 Mhz to 29.700 Mhz (continuous scanning)
: Power supply   13.2 V
: Microphone plug   front (6 pins)
: Compatible microphone type   Electret
: External Vox microphone jack
: External loudspeaker jack
: Public address
: External HP PA socket
: Display   LCD multifunction
: Channel display
: Frequencies display
: VFO mode
: S-meter   Digital
: Modulation modes   AM / FM / USB / LSB / CW
: Volume adjustment and ON/OFF
: Squelch   Manual squelch
: ASC
: Channel selector   Rotary , Up / down
: Mode switch
: F / Menu function key
: Key Beep   , Switchable
: Roger beep   , Switchable
: Key locking
: Memory   6
: Channel preselection   2 , emergency channel (EMG) programmable
: Span
: Dual watch
: Scan   channels
: RF Power
: RF Gain
: Mike-Gain
: Clarifier
: Vox
: SWR (Power Reading /SWR)
: Echo
: TOT
: Filter ANL
: Filter NB
: Filter HI-CUT
: CTCSS   38 tones
: DCS   104 codes
: Monitor
:Frequency allowance  ± 300 Hz
:Carrier power  50 W PEP (AM) / 35 W (FM) / 35 W PEP (USB-LSB) / 12 W (CW)
:Transmission interference  < -50 dBc
:Audio response   300 Hz to 3 kHz
:Emitted power in the adj. channel  < 20 μW
:Microphone sensitivity  3 mV
:Drain  6 A (with modulation)
:Modulated signal distortion  2%
:Max. sensitivity at 20 dB sinad  0.7 µV - 110 dBm (AM) / 0.35 µV - 116 dBm (FM) / 0.28 µV - 118 dBm (USB/LSB/CW)
:Frequency response  300 Hz to 3 kHz
:Adjacent channel selectivity  60 dB
:Maximum audio power  3 W
:Squelch sensitivity  min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
:Frequency image rejection rate  60 dB
:Intermediate frequency rej. rate  70 dB
:Drain  400 mA nominal / 600 mA max.
Freq. (Hz) Freq. (Hz) Freq. (Hz)
00 - oFOFF 13103.5 26162.2
167.0 14107.2 27167.9
271.9 15110.9 28173.8
374.4 16114.8 29179.9
477.0 17118.8 30186.2
579.7 18123.0 31192.8
682.5 19127.3 32203.5
785.4 20131.8 33210.7
888.5 21136.5 34218.1
991.5 22141.3 35225.7
1094.8 23146.2 36233.6
1197.4 24151.4 37241.8
12100.0 25156.7 38250.3
DCS (Octal) DCS (Octal) DCS (Octal) DCS (Octal)
123 27152 53311 79466
225 28155 54315 80503
326 29156 55325 81506
431 30162 56331 82516
532 31165 57332 83523
636 32172 58343 84526
743 33174 59346 85532
847 34205 60351 86546
951 35212 61356 87565
1053 36223 62364 88606
1154 37225 63365 89612
1265 38226 64371 90624
1371 39243 65411 91627
1472 40244 66412 92631
1573 41245 67413 93632
1674 42246 68423 94654
17114 43251 69431 95662
18115 44252 70432 96664
19116 45255 71445 97703
20122 46261 72446 98712
21125 47263 73452 99723
22131 48265 74454 100731
23132 49266 75455 101732
24134 50271 76462 102734
25143 51274 77464 103743
26145 52306 78465 104754
