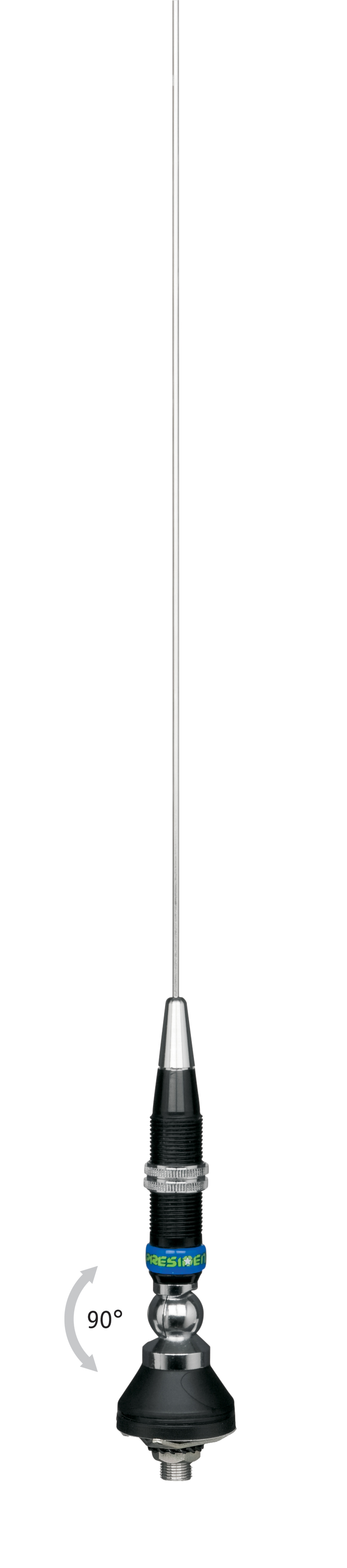

HAWAI
Ref.: AMMI117
1/2 wave
1,1/1 adjustable
+ 3 dBi
150 Watt P.E.P
1500 kHz (150 cx)
0.140 kg
720 mm
Type "N"
AC4 Stainless steel
Specifications
| Antenna type | : | 1/2 wave |
| Impedance | : | 50 Ohms |
| Frequency | : | 26-28 MHz |
| Polarization | : | Vertical |
| S.W.R. value | : | 1,1/1 adjustable |
| Gain | : | + 3 dBi |
| Maximum power | : | 150 Watt P.E.P |
| Band width / Number of channels | : | 1500 kHz (150 cx) |
| Weight | : | 0.140 kg |
| Length | : | 720 mm |
| Base type | : | Type "N" |
| Boring diameter | : | Ø 13 mm |
| Reclining | : | |
| Whip | : | AC4 Stainless steel |
| FME plug | : | Supplied with PL plug + FME plug  |
