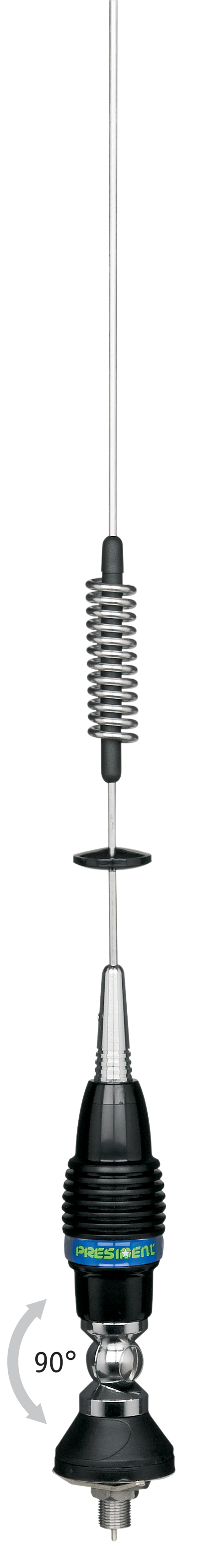

KENTUCKY

Ref.: AMMI097
1/4 wave
1,1/1 adjustable
+ 3 dBi
100 Watt P.E.P
1200 kHz (120 cx)
0.300 kg
750 mm
Type "N"
AC4 Stainless steel


Specifications

Antenna type: 1/4 wave
Impedance: 50 Ohms
Frequency: 26-28 MHz
Polarization: Vertical
S.W.R. value: 1,1/1 adjustable
Gain: + 3 dBi
Maximum power: 100 Watt P.E.P
Band width / Number of channels: 1200 kHz (120 cx)
Weight: 0.300 kg
Length: 750 mm
Base type: Type "N"
Boring diameter: Ø 13 mm
Reclining:
Whip: AC4 Stainless steel
FME plug:
Supplied with PL plug + FME plug
FME + PL
