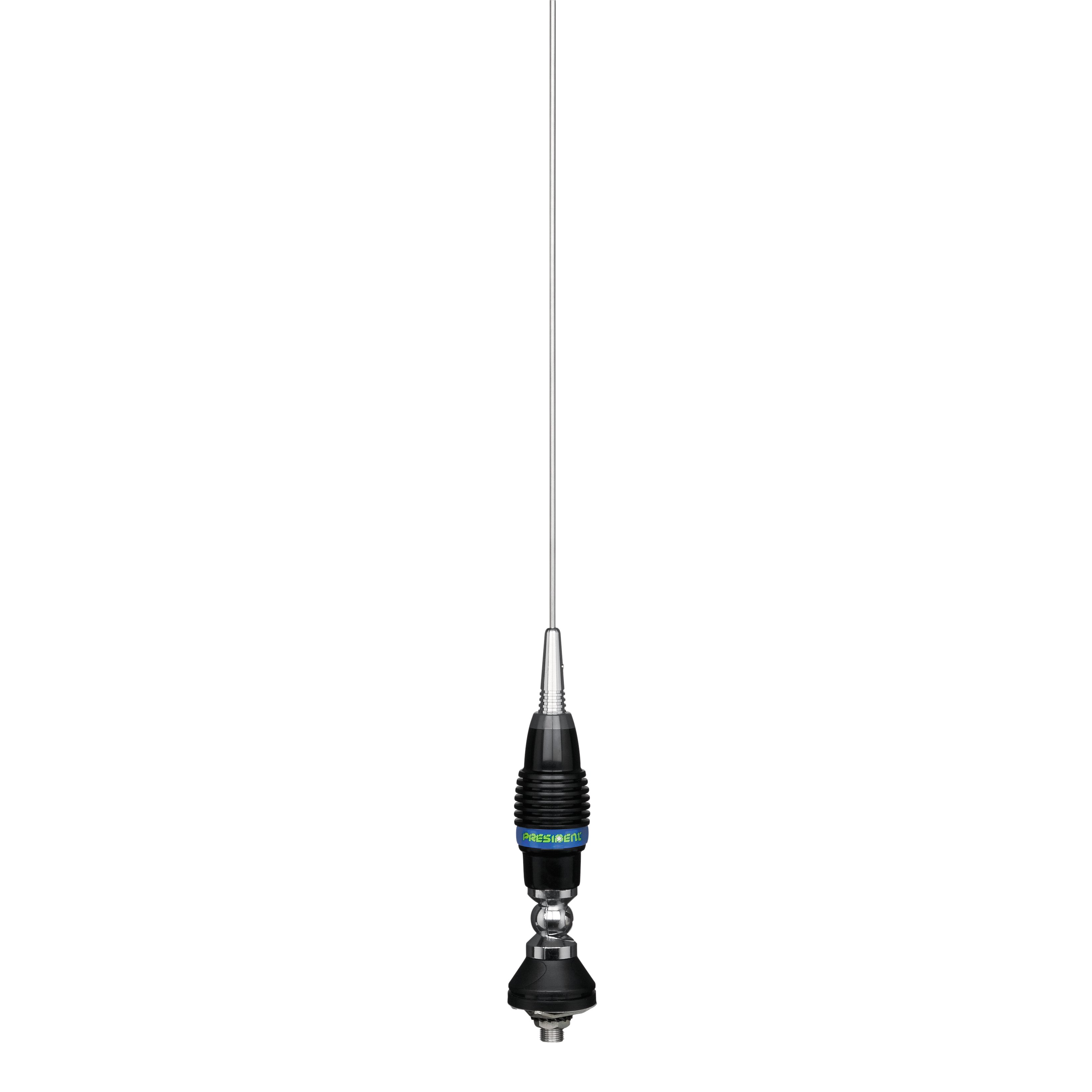

OREGON

Ref.: AMMI090
5/8 wave
1,1 adjustable
+ 4 dBi
500 Watt P.E.P
2000 kHz (200 cx)
0,300 kg
1550 mm
Type "N"
AC4 Stainless steel


Specifications

Antenna type: 5/8 wave
Impedance: 50 Ohms
Frequency: 26-28 MHz
Polarization: Vertical
S.W.R. value: 1,1 adjustable
Gain: + 4 dBi
Maximum power: 500 Watt P.E.P
Band width / Number of channels: 2000 kHz (200 cx)
Weight: 0,300 kg
Length: 1550 mm
Base type: Type "N"
Boring diameter: Ø 13 mm
Reclining:
Whip: AC4 Stainless steel
