JOHNSON II VOX
Ref.: TXPR667- 40 channels AM / FM
- 12 / 24 V
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- ANL filter, NB and HI-CUT
- Local DX key
- Channels and memories scan
- 3 Memories
- F function key
- Beep Function
- Roger beep
- VOX
- Mode switch AM / FM
- Dual watch
- Preset 9/19
- Front microphone plug
- External loudspeaker jack
- Front loudspeaker

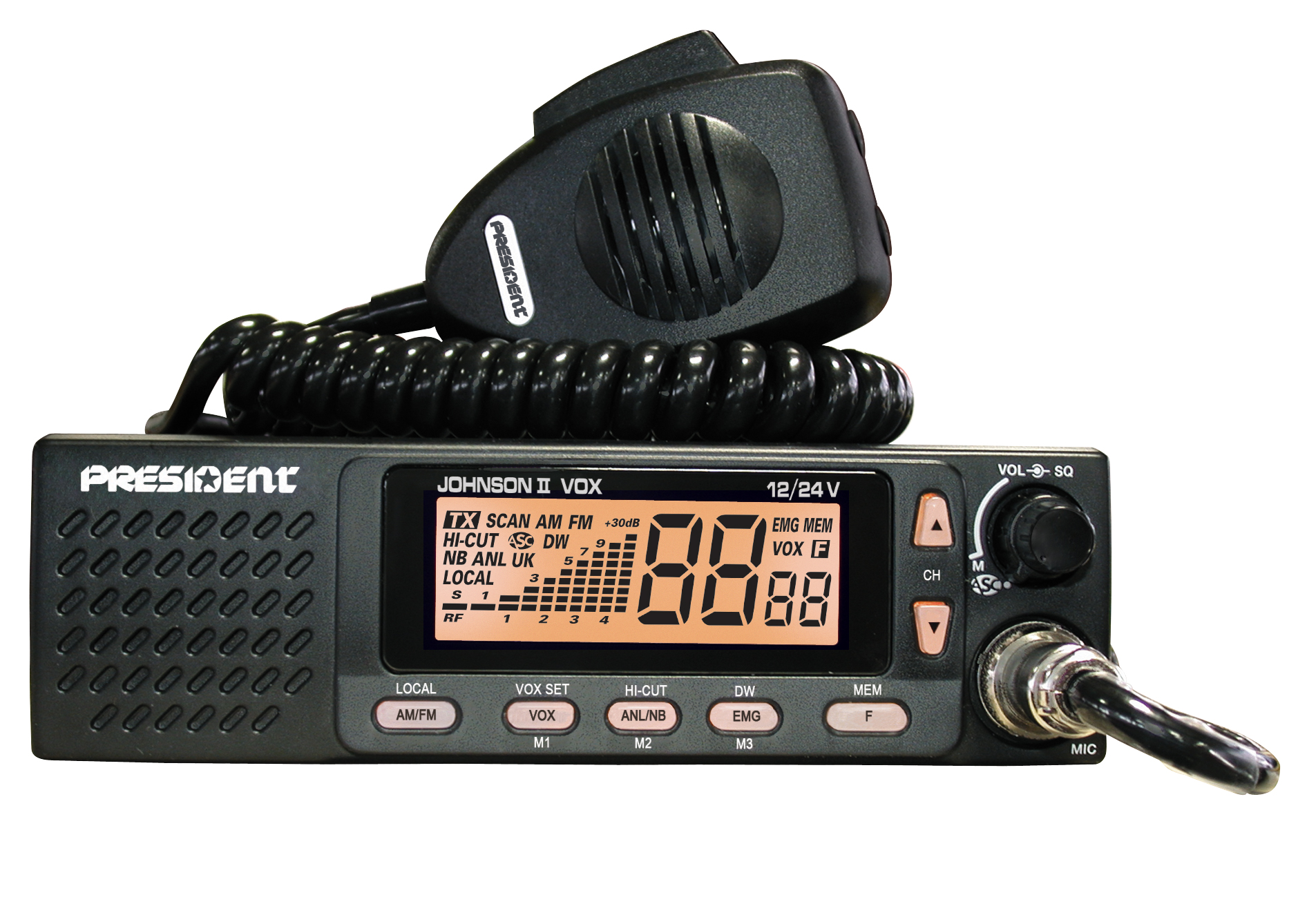

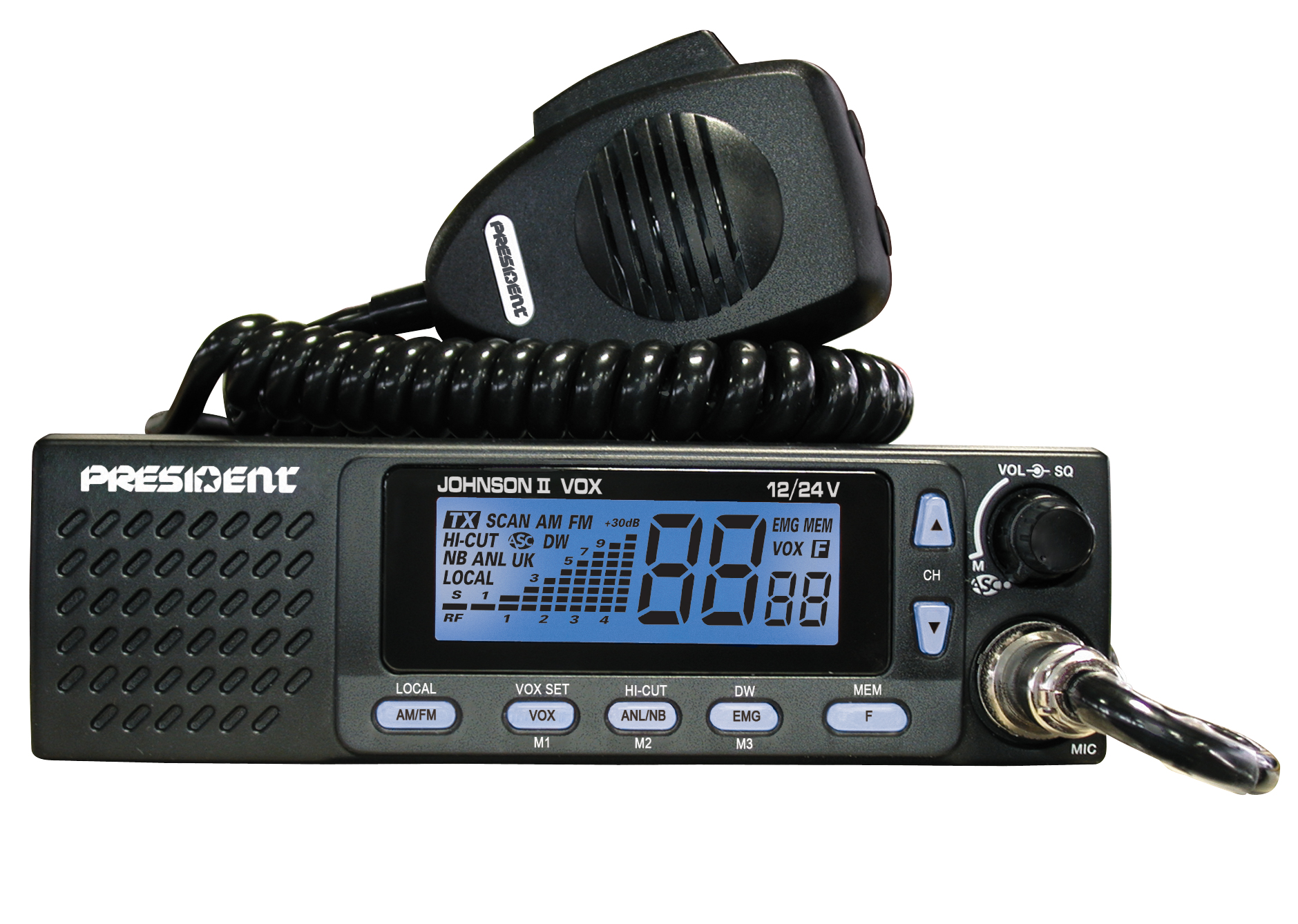

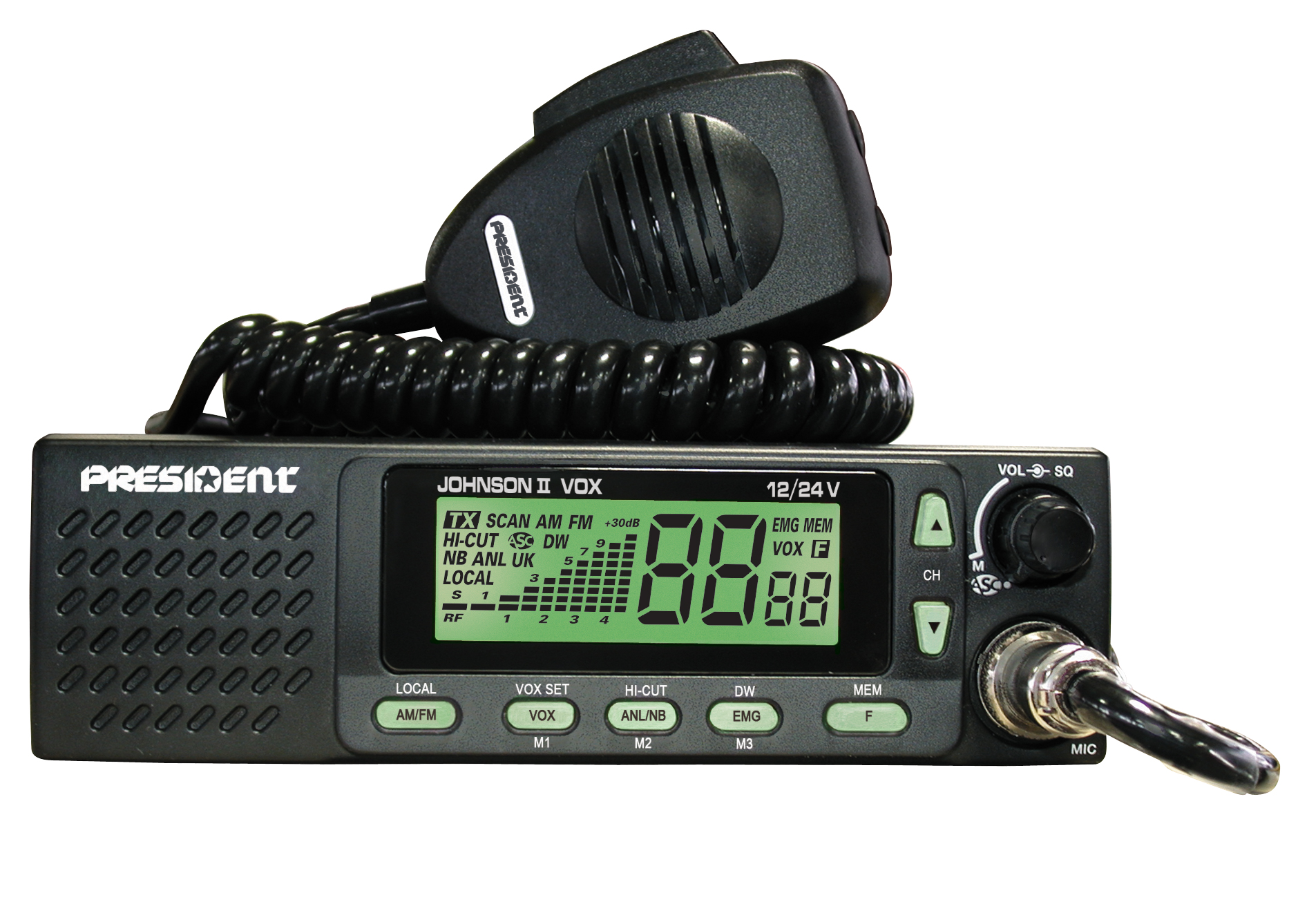

Back light color:
Specifications
| Supply | : | 13.2 V / 24 V |
| Number of channels | : | 40 |
| AM | : | |
| FM | : | |
| Channel selector | : | up / down |
| Volume | : | Volume adjustment and ON/OFF |
| Squelch | : | Manual squelch |
| ASC | : | |
| Display | : | LCD multifunction |
| S-meter | : | Digital |
| Vox | : | |
| Filter ANL | : | |
| Filter NB | : | |
| Filter HI-CUT | : | |
| Local DX key | : | |
| Scan | : | |
| Memory | : | 3 |
| F / Menu function key | : | |
| Key Beep | : | |
| Dual watch | : | |
| Preset channel | : | 9 / 19 |
| Front loudspeaker | : | |
| Microphone plug | : | front (6 pins) |
| External Vox microphone jack | : | |
| External loudspeaker jack | : | |
| Size | : | 170 (W) x 150 (D) x 52 (H) |
| DIN Size | : | |
| Weight | : | 1 kg |
Technical characteristics
| Number of channels | : | 40 |
| Modulation modes | : | AM / FM |
| Frequency ranges | : | from 26.965 MHz to 27.405 MHz |
| Antenna impedance | : | 50 ohms |
| Power supply | : | 12 V / 24 V |
| Size | : | 170 (W) x 150 (D) x 52 (H) |
| DIN Size | : | |
| Weight | : | 1 kg |
| Accessories supplied | : | power cord with fuse 1 microphone UP/DOWN and its hanger 1 mounting bracket with fixing screws |
| Frequency allowance | : | +/- 300 Hz |
| Carrier power | : | 4 W AM / 4 W FM |
| Transmission interference | : | inferior to 4 nW (- 54 dBm) |
| Audio response | : | 300 Hz to 3 KHz in AM/FM |
| Emitted power in the adj. channel | : | inferior to 20 μW |
| Microphone sensitivity | : | 3,0 mV |
| Drain | : | 2 A (with modulation) |
| Modulated signal distortion | : | 1,8 % |
| Maxi. sensitivity at 20 dB sinad | : | 0.5 μV - 113 dBm (AM/FM) |
| Frequency response | : | 300 Hz to 3 kHz in AM/FM |
| Adjacent channel selectivity | : | 60 dB |
| Maximum audio power | : | 3 W |
| Squelch sensitivity | : | minimum 0.2 μV - 120 dBm / maximum 1 mV - 47 dBm |
| Frequency image rejection rate | : | 60 dB |
| Intermediate frequency rej. rate | : | 70 dB |
| Drain | : | 400 mA nominal / 1000 mA maximum |
Antennas recommended
Main rule for best antenna performance: "More the antenna is long, better are the performances." Please consult your dealer for advice.
                |
