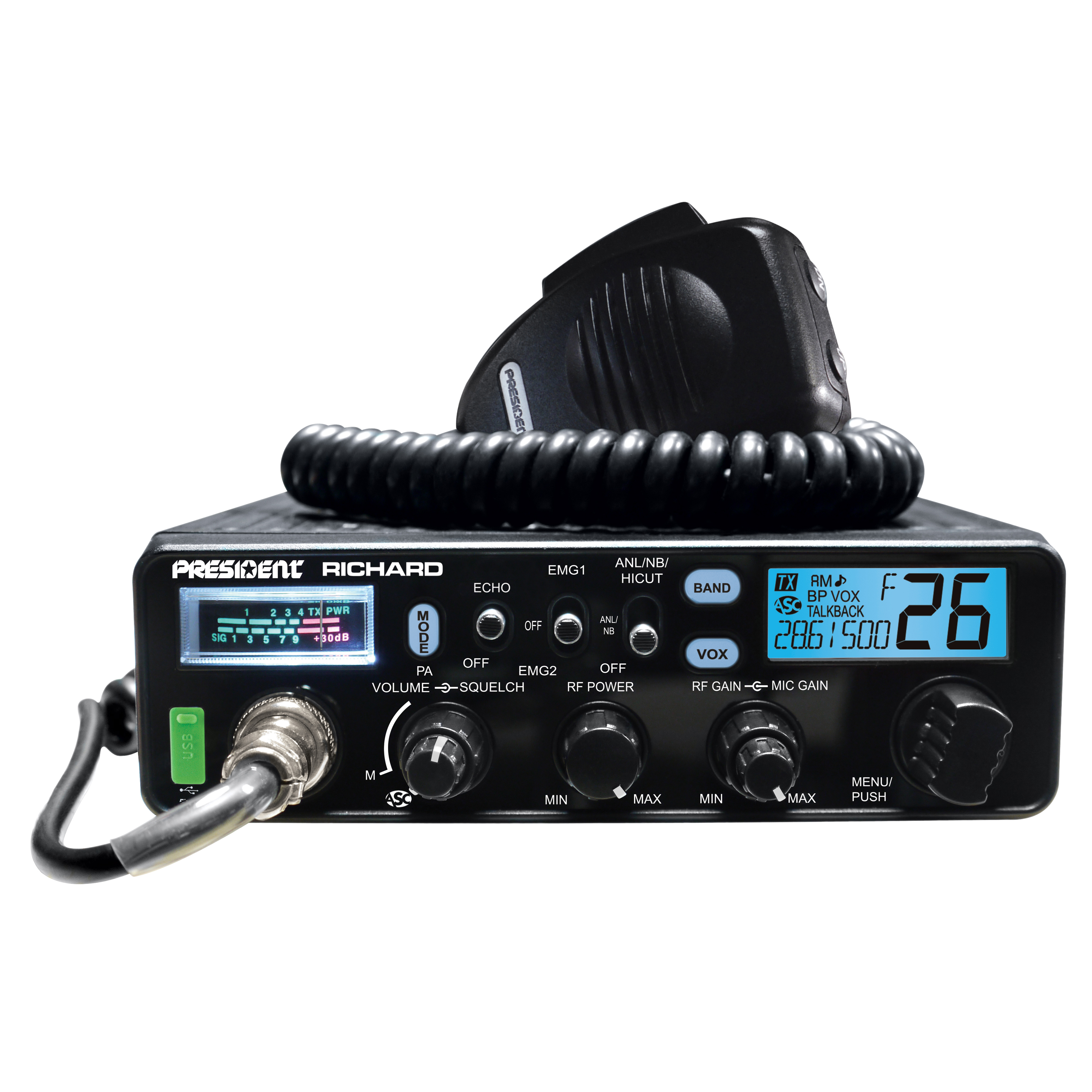

RICHARD new

Ref.: TXPR034

- Rotary switch channel selector
- Volume adjustment and ON/OFF
- RF Power
- Manual squelch and ASC
- Multi-functions LCD display
- Frequencies display
- S-meter
- Public Address
- ANL filter, NB and HI-CUT
- RF Gain / Mike gain
- Scan
- Talkback
- MENU function key
- Beep Function
- Roger Beep
- Mode switch AM/FM
- Tone
- VFO Mode
  (continuous scanning of 28.000 Mhz to 29.700 Mhz)
- Vox
- Echo
- Mic type electret / dynamic
- SWR (Power Reading /SWR)
- Preset emergency (EMG 1&2)
- TOT (Time Out Timer)
- Front microphone plug
- External loudspeaker jack
- USB 5V 2.1A

Back light color :



Specifications

Supply: 13.2 V
AM:
FM:
Channel selector: rotary
VFO mode:
Volume: Volume adjustment and ON/OFF
RF Power:
Squelch: Manual squelch
ASC:
Display: LCD multifunction
Frequencies display:
S-meter: vu-meter
Public address:
Talkback:
Vox:
Tone:
Filter ANL:
Filter NB:
Filter HI-CUT:
RF Gain:
Mike-Gain:
Scan:
Dimmer:
F / Menu function key:
Key Beep:
Roger beep:
SWR (Power Reading /SWR):
Preset channel: EMG 1/2 (customizable)
Microphone plug: front (6 pins)
External Vox microphone jack:
External loudspeaker jack:
Size: 170 (W) x 160 (D) x 52 (H)
DIN Size:
Weight: 1.1 kg
Compatible LIBERTY-MIC

Technical characteristics

General
Modulation modes: AM / FM
Frequency ranges: from 28.000 MHz to 29.700 MHz
Antenna impedance: 50 ohms
Power supply: 12 V
Size: 170 (W) x 160 (D) x 52 (H)
DIN Size:
Weight: 1.1 kg
Accessories supplied: power cord with fuse
1 microphone UP/DOWN and its hanger
1 mounting bracket with fixing screws
Transmission
Frequency allowance: +/- 300 Hz
Carrier power: 13 W AM (~50 W PEP) / 40 W FM
Transmission interference: inferior to 4 nW (- 54 dBm)
Audio response : 300 Hz to 3 KHz in AM/FM
Emitted power in the adj. channel: inferior to 20 μW
Microphone sensitivity: 3,0 mV
Drain: 7 A max. (with modulation)
Modulated signal distortion: 1.8%
Reception
Maxi. sensitivity at 20 dB sinad: 0,7 μV -110 dBm (AM) / 0,35 μV -116 dBm (FM)
Frequency response: 300 Hz to 3 kHz in AM/FM
Adjacent channel selectivity: 60 dB
Maximum audio power: 3 W
Squelch sensitivity: mini 0.2 μV - 120 dBm / maxi 1 mV - 47 dBm
Frequency image rejection rate: 60 dB
Intermediate frequency rej. rate: 70 dB
Drain: 500 mA max

Antennas recommended

Antennas recommended for this transceiver
ExcellentVery GoodCorrectNot Recommended

Main rule for best antenna performance: "More the antenna is long, better are the performances." Please consult your dealer for advice.

MS 145 CN

View product

COLORADO 1800 Power

View product

TEXAS 1800 Power

View product

WYOMING UP

View product

DAKOTA UP

View product

ML-145 UP

View product

HIMALAYA WB

View product

MISSISSIPPI

View product

FLORIDA UP

View product

MISSOURI UP

View product

MONTANA UP

View product

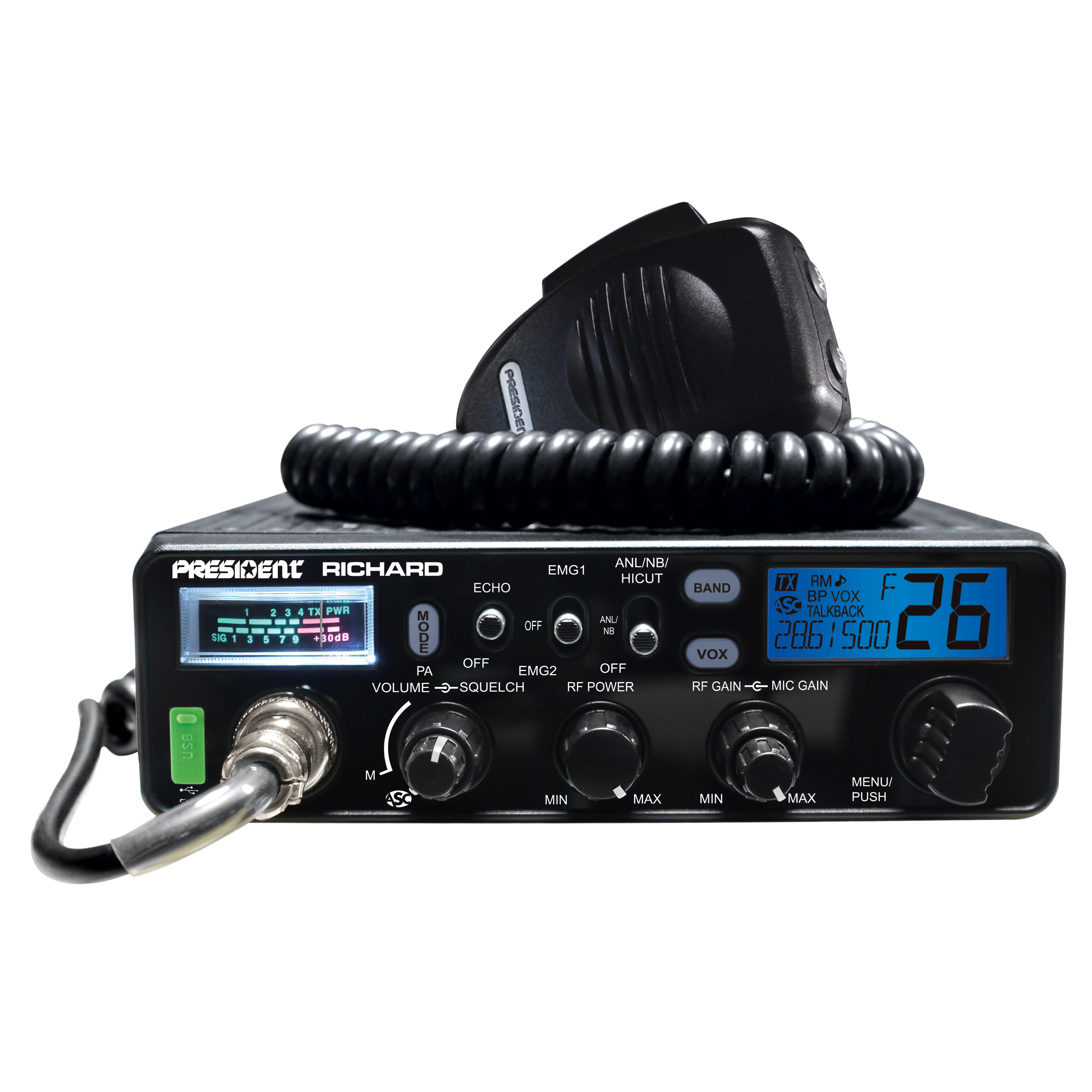

Photos
