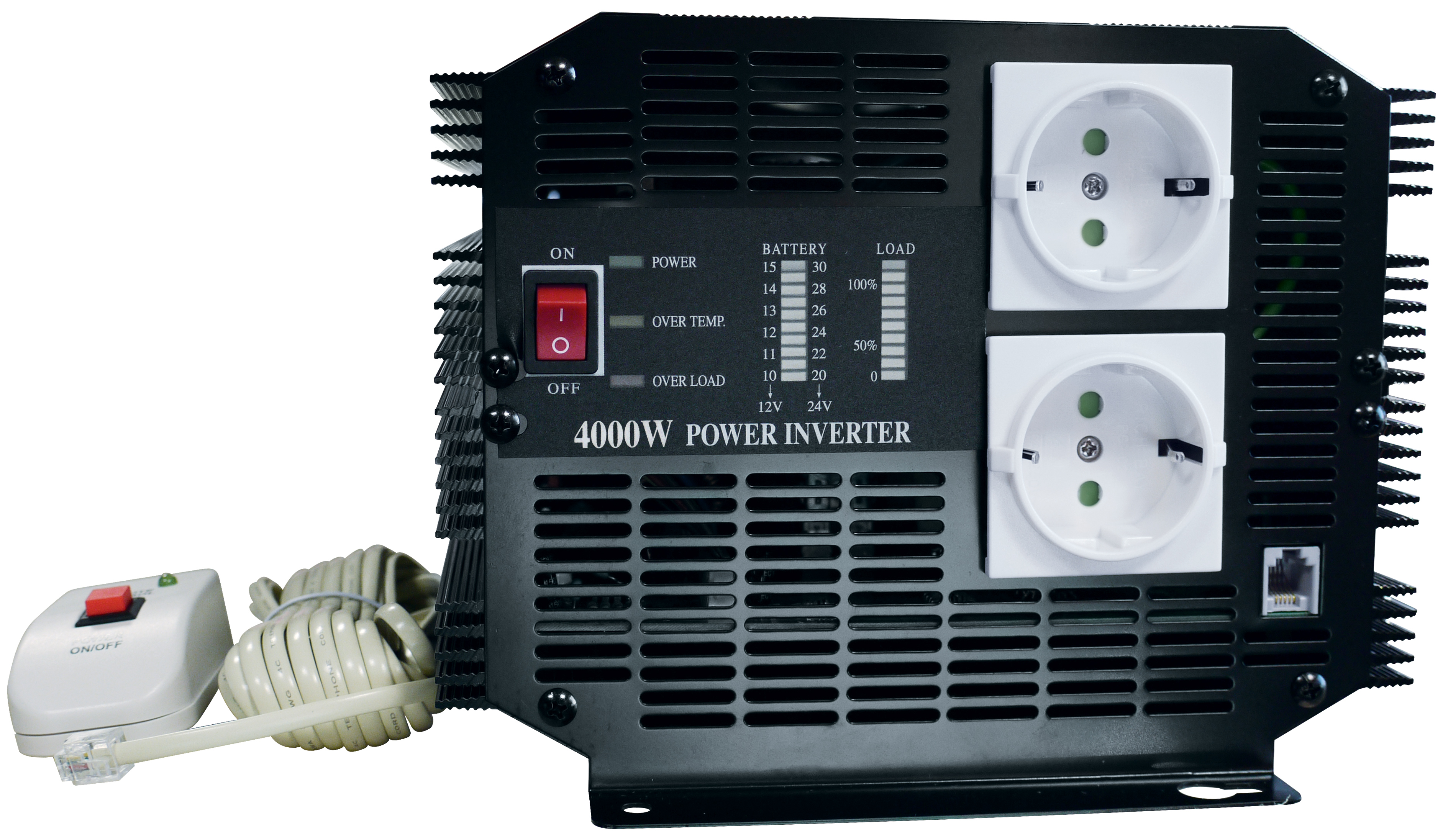

12 V / 220 V - 4000 W

Art. N°: ACMA926
Size (mm) : 550 x 210 x 159

Features

: Output signal   Modified sine wave
: Power Source   10 to 15 V CC
: Max. load current   400 A
: Standby current   < 1,7 A
: Output voltage   220 V (AC) +/- 2%
: Output frequency   50 Hz / 60 Hz (+/- 2 %)
: Continuous Output Power   4000 W
: Peak output power   8000 W
: Efficiency   85 ~ 90 %
: Thermal protection   60° C ± 5°C
: Overload protect
: Short circuit protection
: voltage alarm too high   15 ± 0,5 V DC
: too low battery voltage alarm   10 ± 0,5 V DC
: Low battery cut-off   9,5 ± 0,5 V DC
: Overvoltage protection
: Reverse polarity protection   Yes (by fuse)
: Input fuse   30 A (18 pcs)
: Size (mm)   550 x 210 x 159
: Weight   11,2 Kg

Manual

Manual

CV 12 4000 W.pdf
Français
733.54 Kb
Inverter 12 V / 220 V - 4000 W
1.98 Mb
