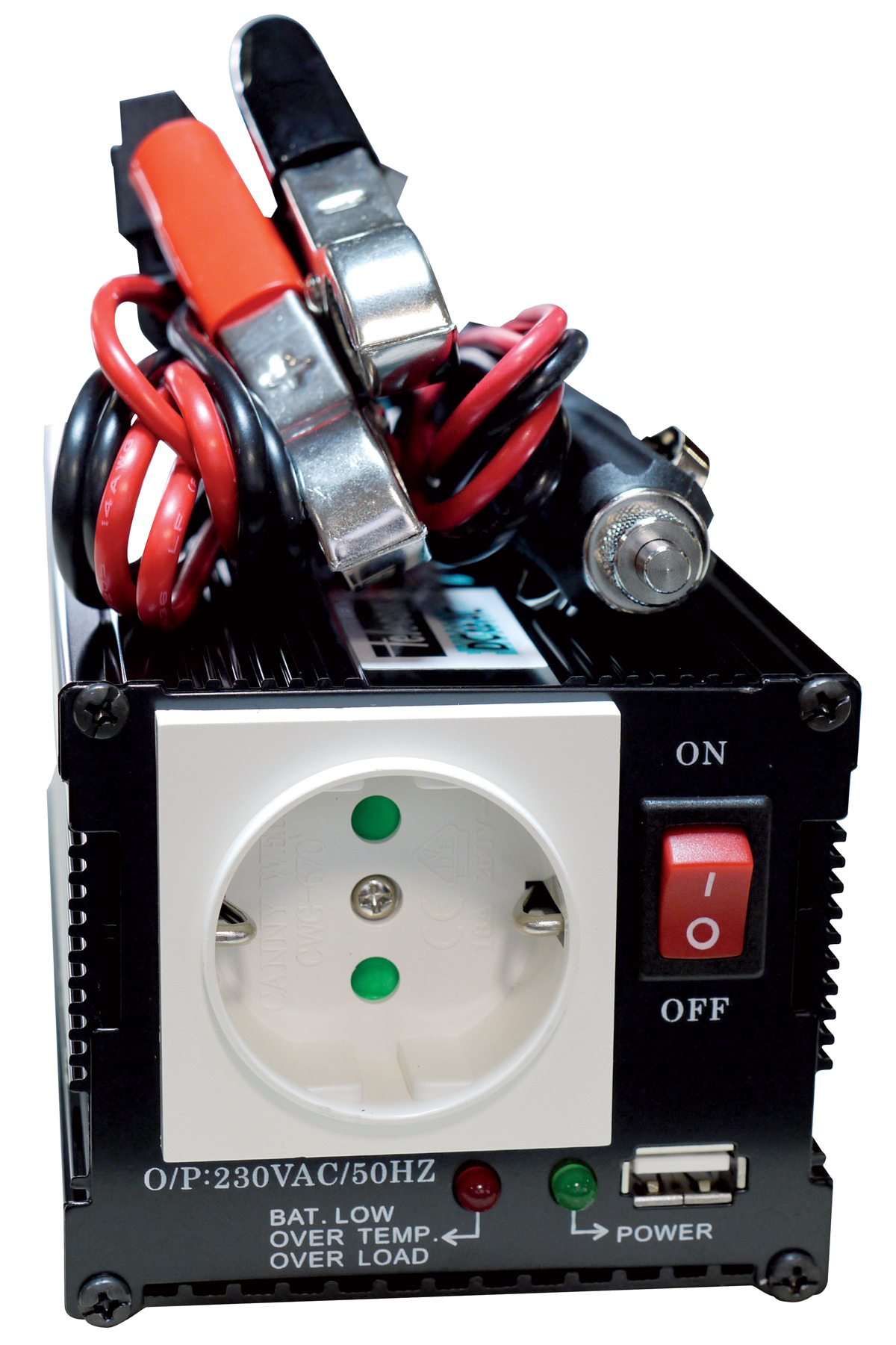

12 V / 220 V - 400 W

Art. N°: ACMA416
Size (mm) : 181 x 90 x 75

Features

: Output signal   Modified sine wave
: Power Source   10 to 15 V CC
: Max. load current   40 A
: Standby current   < 0,36 A
: Output voltage   220 V (AC) +/- 2%
: Output frequency   50 Hz / 60 Hz (+/- 2 %)
: Continuous Output Power   400 W
: Peak output power   800 W
: USB power supply   5 V DC 500 mA (Max.)
: Efficiency   90 %
: Thermal protection   60° C ± 5°C
: Overload protect
: Short circuit protection
: too low battery voltage alarm   10 ± 0,5 V DC
: Low battery cut-off   9,5 ± 0,5 V DC
: Overvoltage protection
: Reverse polarity protection   Yes (by fuse)
: Fuse power cable   15 A (1 pc)
: Fuse cable alligator clip   25 A (2 pcs)
: Input fuse   25 A on cable (x2) / 15 A on PAC (x1)
: Size (mm)   181 x 90 x 75
: Weight   1,3 kg
: Output jack   Prise SCHUKO , Prise USB

Manual

Manual

CV 12 400W USB.pdf
Français
734.59 Kb
version USB
Document

Declaration of conformity

ACMA416
1.46 Mb
1.11 Mb
