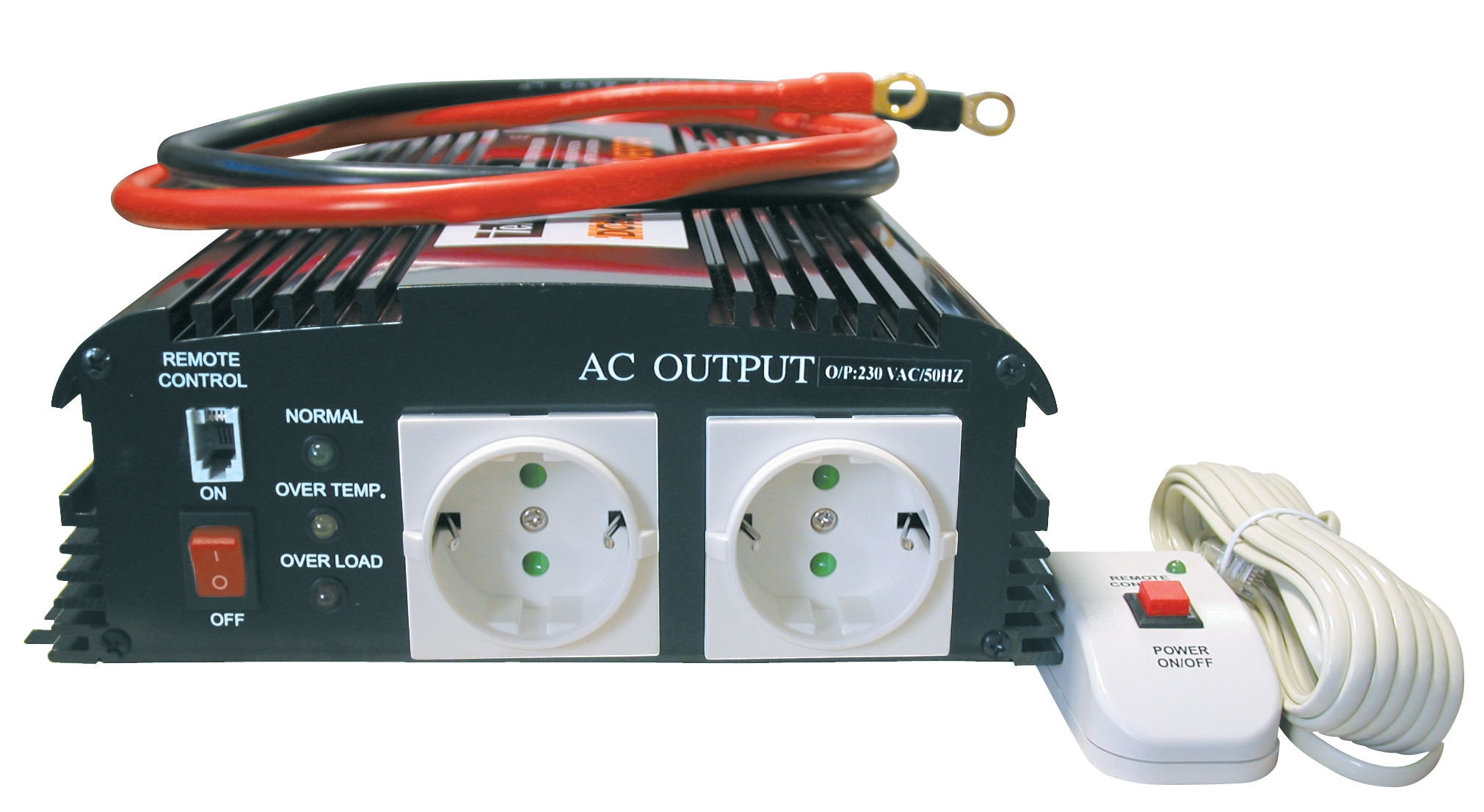

24 V / 220 V - 1200 W

Art. N°: ACMA906
Size (mm) : 320 x 210 x 85

Features

: Output signal   Modified sine wave
: Power Source   20 to 30 V CC
: Max. load current   65 A
: Standby current   < 0,2 A
: Output voltage   220 V (AC) +/- 2%
: Output frequency   50 Hz / 60 Hz (+/- 2 %)
: Continuous Output Power   1200 W
: Temporary output power (30 min)   1400 W
: Peak output power   2400 W
: Efficiency   85 ~ 90 %
: Thermal protection   60° C ± 5°C
: Overload protect
: Short circuit protection   Auto resume after solve short problem
: too low battery voltage alarm   21 ± 0,8 V DC
: Low battery cut-off   20 ± 0,8 V DC
: Overvoltage protection   30 ± 0,8 V DC
: Reverse polarity protection   Yes (by fuse)
: Input fuse   20 A (5 pcs)
: Size (mm)   320 x 210 x 85
: Weight   3,9 Kg

Manual

Manual

CV 24 1200W.pdf
Français
629.70 Kb
Document

Declaration of conformity

ACMA906
Français
1.44 Mb
838.38 Kb
