24 V / 220 V - 1700 W

Art. N°: ACMA876
Size (mm) : 458 x 210 x 85

Features

: Output signal   Modified sine wave
: Power Source   20 to 30 V CC
: Max. load current   85 A
: Standby current   < 0,28 A
: Output voltage   220 V (AC) +/- 2%
: Output frequency   50 Hz / 60 Hz (+/- 2 %)
: Continuous Output Power   1500 W
: Temporary output power (30 min)   1700 W
: Peak output power   3000 W
: Efficiency   85 ~ 90 %
: Thermal protection   60° C ± 5°C
: Overload protect
: Short circuit protection   Auto resume after solve short problem
: too low battery voltage alarm   21 ± 0,8 V DC
: Low battery cut-off   20 ± 0,8 V DC
: Overvoltage protection   30 ± 0,8 V DC
: Reverse polarity protection   Yes (by fuse)
: Input fuse   15 A (8 pcs)
: Size (mm)   458 x 210 x 85
: Weight   5,5 Kg

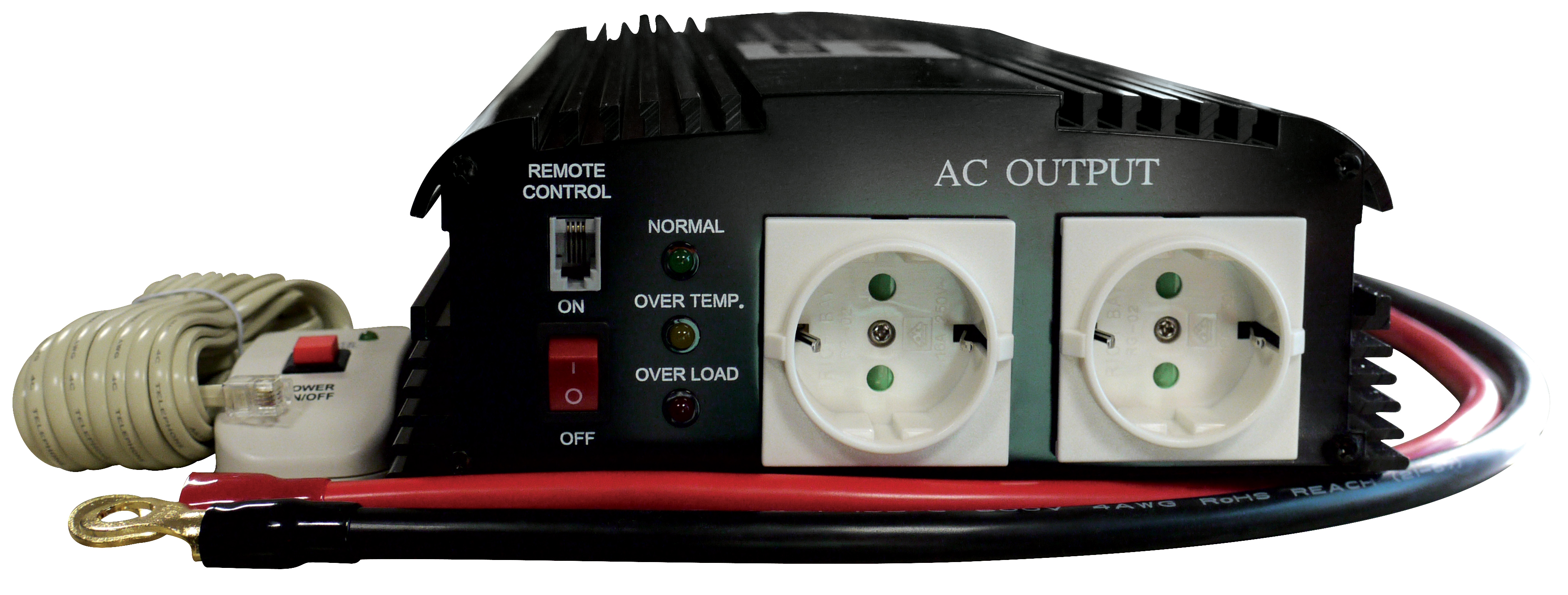

Inverter 24 V / 220 V - 1700 W
Manual

Manual

CV 24 1700W.pdf
Français
726.63 Kb
Open
Inverter 24 V / 220 V - 1700 W
1.33 Mb
Download
