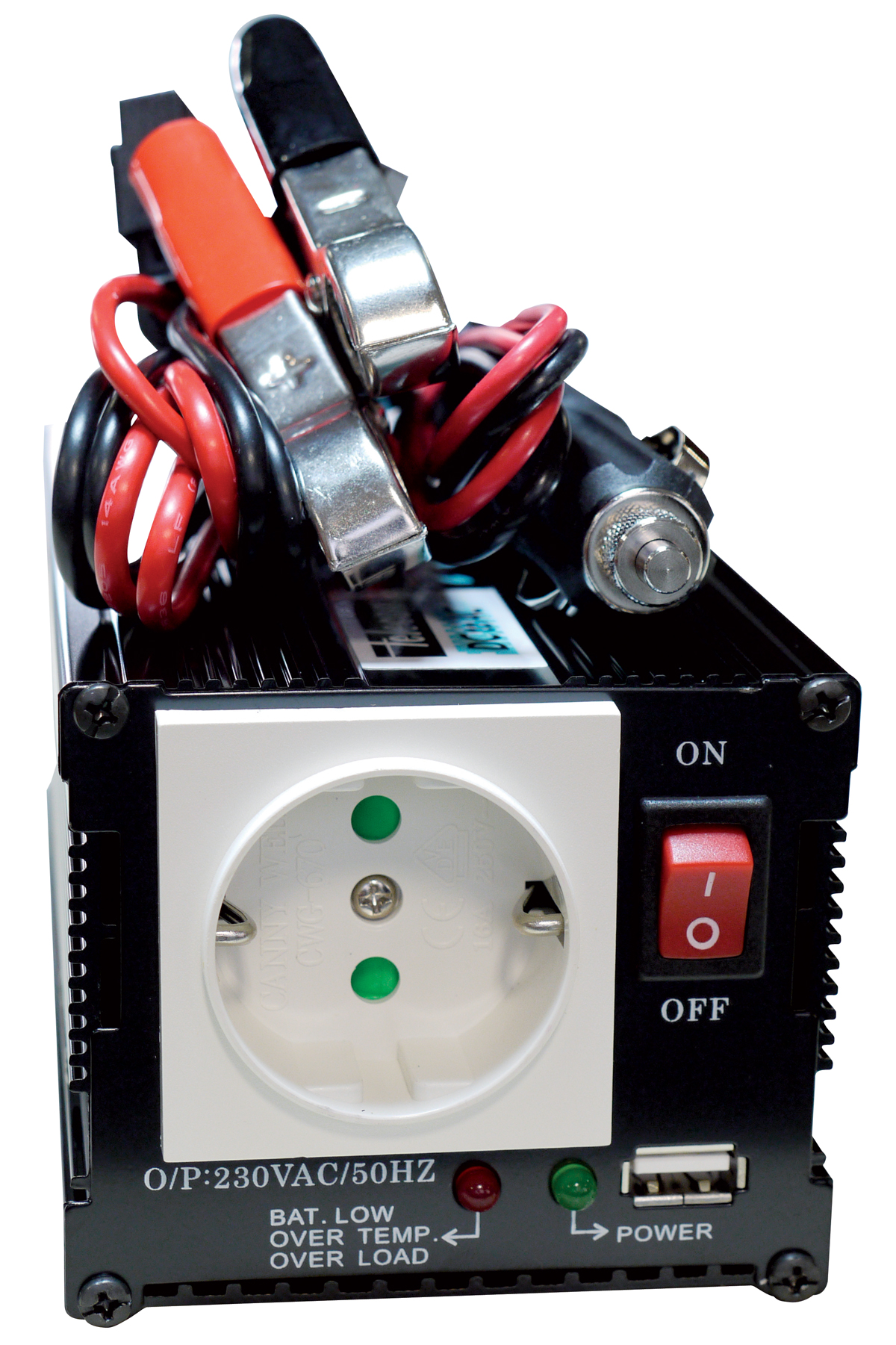

24 V / 220 V - 400 W

Art. N°: ACMA516

Size (mm) : 181 x 90 x 75

: Output signal	Modified sine wave
: Power Source	20 to 30 V CC
: Max. load current	20 A
: Standby current	< 0,2 A
: Output voltage	220 V (AC) +/- 2%
: Output frequency	50 Hz / 60 Hz (+/- 2 %)
: Continuous Output Power	400 W
: Peak output power	800 W
: USB power supply	5 V DC 500 mA (Max.)
: Efficiency	90 %
: Thermal protection	60° C ± 5°C
: Overload protect
: Short circuit protection
: too low battery voltage alarm	20 ± 0,8 V DC
: Low battery cut-off	19 ± 0,8 V DC
: Overvoltage protection
: Reverse polarity protection	Yes (by fuse)
: Fuse power cable	10 A (1 pc)
: Fuse cable alligator clip	35 A (2 pcs)
: Input fuse	35 A on cable (x2) / 10 A on PAC (x1)
: Size (mm)	181 x 90 x 75
: Weight	1,3 kg
: Output jack	,
