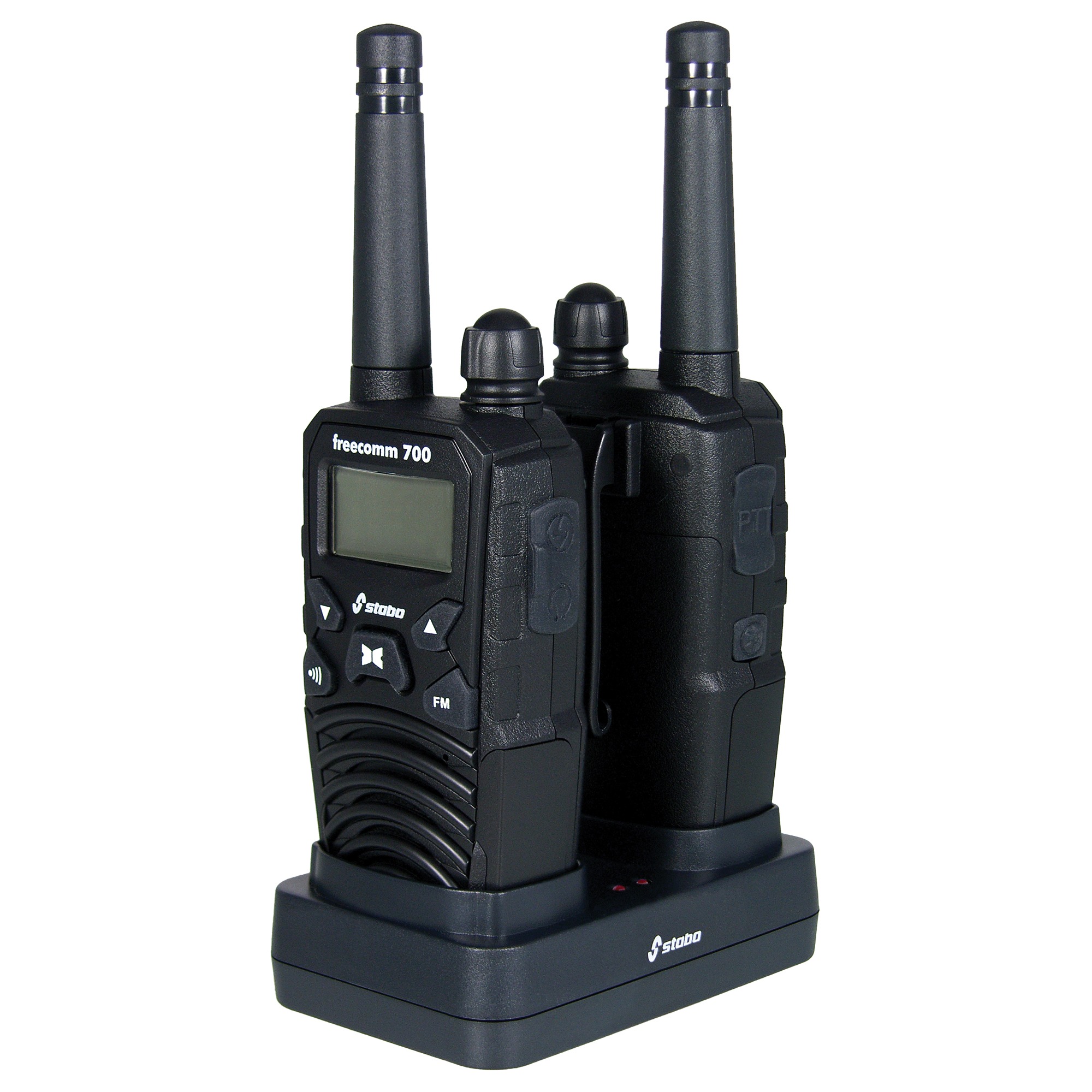

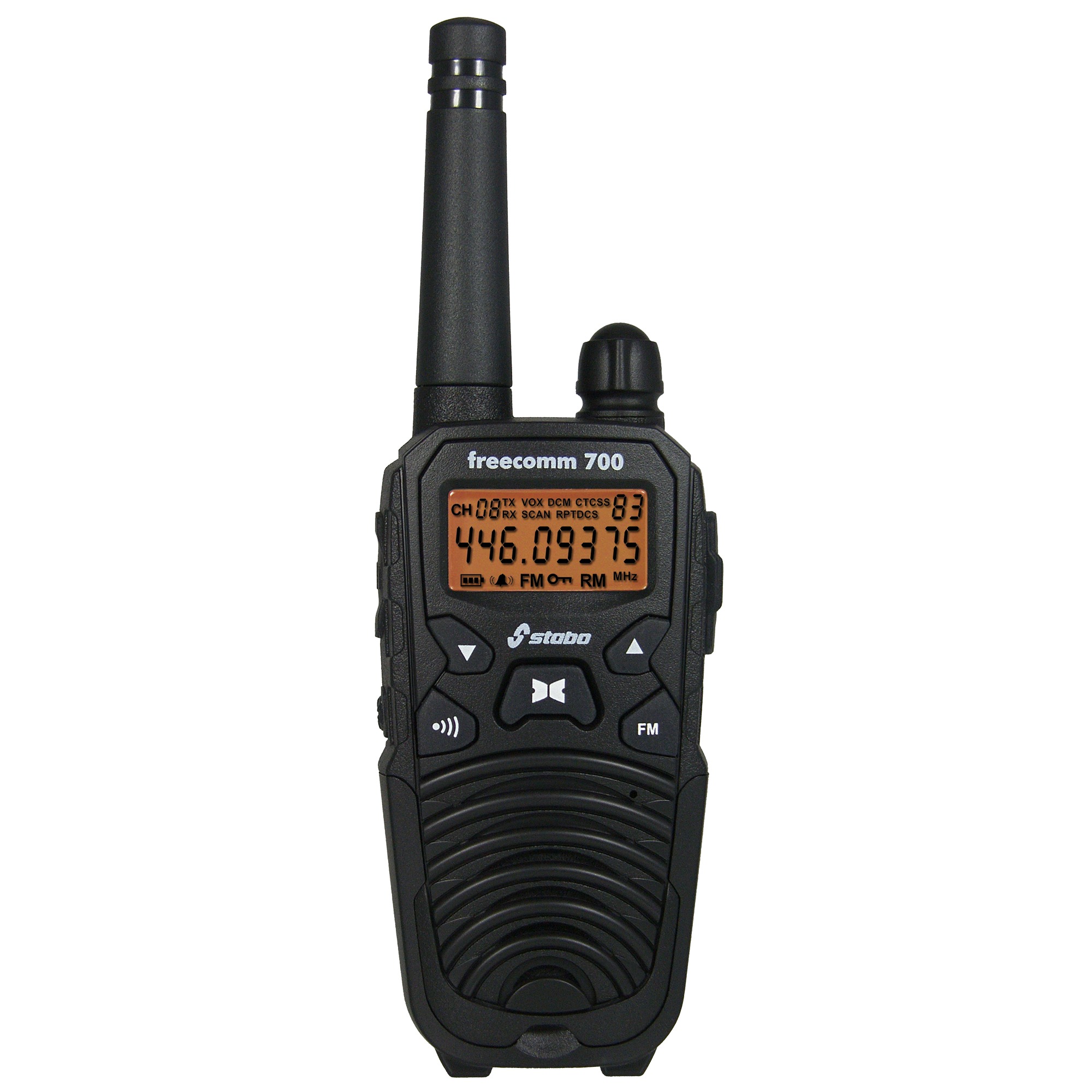

CASE FREECOMM 700
Ref.: TXMS770- Electric torch LED
- 8 channels
- Emission power 500 mW
- Volume adjustment (rotatif)
- Vox function (Hands free)
- ROGER beep
- Squelch
- Vibrator
- Monitoring function
- "baby monitoring" function
- Scan
- 15 ringing tones
- CTCSS (38 tones)
- DSC (83 codes)
- Dual watch
- Battery indicator
- Lock function
- Microphone plug
- Jack for external speaker
- Can be used with batteries
- Long range Antenna
- FM Radio
Specifications
| Number of channels | : | 8 |
| CTCSS | : | 38 tones |
| DCS | : | 83 codes |
| Range | : | max. 10 km |
| Output Power | : | ≤ 500 mW |
| Alimentation | : | 4,8 V / 600 mAh accu NiMH or 4 batteries, type AAA, LR03 |
| Size | : | 175 (H) x 58 (L) x 35 (P) mm |
| Weight | : | 160 g (With batteries) |
Technical characteristics
General
| Number of channels | : | 8 |
| CTCSS | : | 38 tones |
| DCS | : | 83 codes |

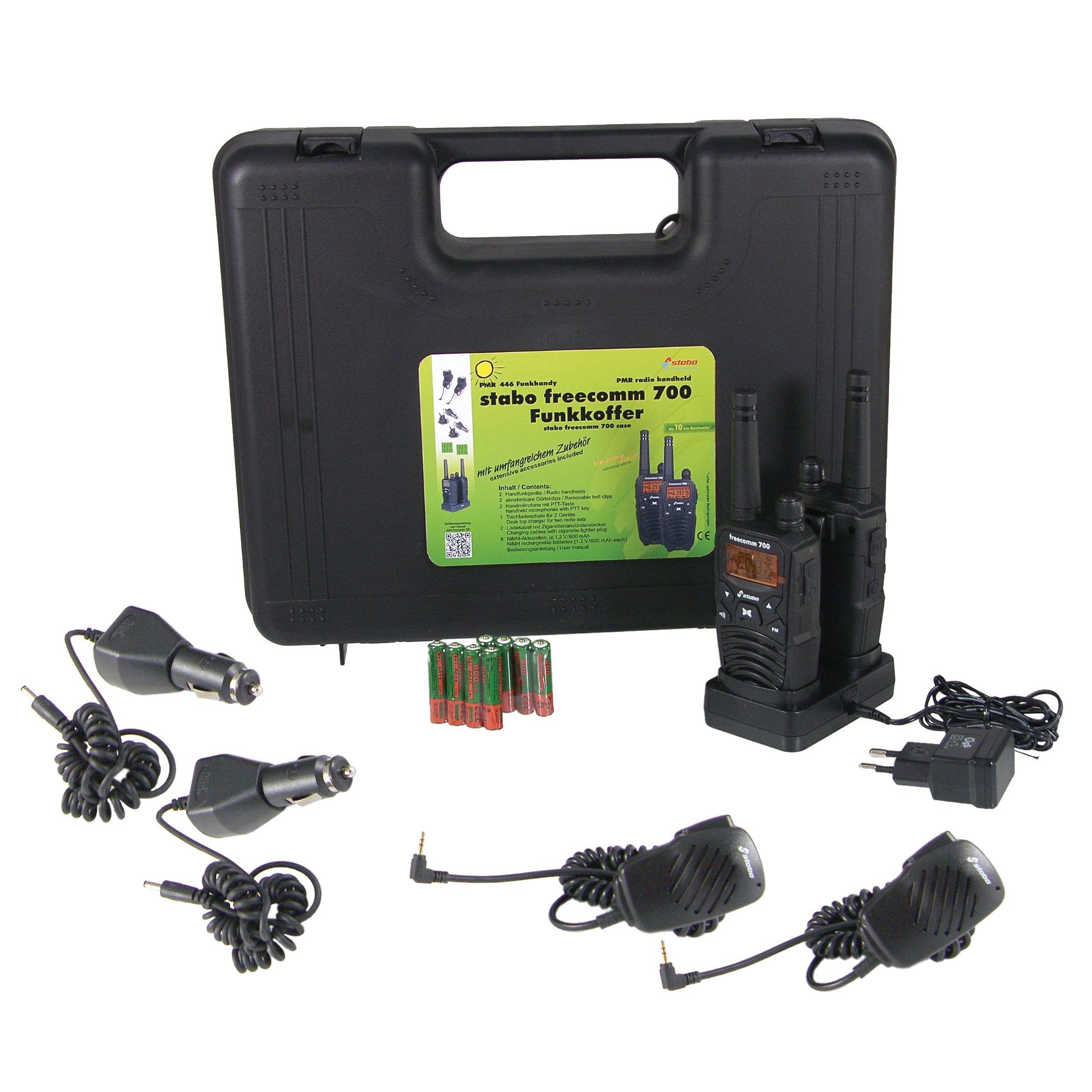

| Accessories supplied | : | 2 PMR 2 removable belt clips desktop charger for two radio sets 2 x 4 NiMH rechargeable batteries (1.2v/600mAh each) 2 mini micros 2 cables charging with cigarette lighter User manual |
| Size | : | 175 (H) x 58 (L) x 35 (P) mm |
| Weight | : | 160 g (With batteries) |
CTCSS Tone List
| N° | Freq. (Hz) | N° | Freq. (Hz) | N° | Freq. (Hz) |
|---|---|---|---|---|---|
| 00 - oF | OFF | 13 | 103.5 | 26 | 162.2 |
| 1 | 67.0 | 14 | 107.2 | 27 | 167.9 |
| 2 | 71.9 | 15 | 110.9 | 28 | 173.8 |
| 3 | 74.4 | 16 | 114.8 | 29 | 179.9 |
| 4 | 77.0 | 17 | 118.8 | 30 | 186.2 |
| 5 | 79.7 | 18 | 123.0 | 31 | 192.8 |
| 6 | 82.5 | 19 | 127.3 | 32 | 203.5 |
| 7 | 85.4 | 20 | 131.8 | 33 | 210.7 |
| 8 | 88.5 | 21 | 136.5 | 34 | 218.1 |
| 9 | 91.5 | 22 | 141.3 | 35 | 225.7 |
| 10 | 94.8 | 23 | 146.2 | 36 | 233.6 |
| 11 | 97.4 | 24 | 151.4 | 37 | 241.8 |
| 12 | 100.0 | 25 | 156.7 | 38 | 250.3 |
DCS Code List
| N° | DCS (Octal) | N° | DCS (Octal) | N° | DCS (Octal) | N° | DCS (Octal) |
|---|---|---|---|---|---|---|---|
| 1 | 23 | 27 | 152 | 53 | 311 | 79 | 466 |
| 2 | 25 | 28 | 155 | 54 | 315 | 80 | 503 |
| 3 | 26 | 29 | 156 | 55 | 325 | 81 | 506 |
| 4 | 31 | 30 | 162 | 56 | 331 | 82 | 516 |
| 5 | 32 | 31 | 165 | 57 | 332 | 83 | 523 |
| 6 | 36 | 32 | 172 | 58 | 343 | 84 | 526 |
| 7 | 43 | 33 | 174 | 59 | 346 | 85 | 532 |
| 8 | 47 | 34 | 205 | 60 | 351 | 86 | 546 |
| 9 | 51 | 35 | 212 | 61 | 356 | 87 | 565 |
| 10 | 53 | 36 | 223 | 62 | 364 | 88 | 606 |
| 11 | 54 | 37 | 225 | 63 | 365 | 89 | 612 |
| 12 | 65 | 38 | 226 | 64 | 371 | 90 | 624 |
| 13 | 71 | 39 | 243 | 65 | 411 | 91 | 627 |
| 14 | 72 | 40 | 244 | 66 | 412 | 92 | 631 |
| 15 | 73 | 41 | 245 | 67 | 413 | 93 | 632 |
| 16 | 74 | 42 | 246 | 68 | 423 | 94 | 654 |
| 17 | 114 | 43 | 251 | 69 | 431 | 95 | 662 |
| 18 | 115 | 44 | 252 | 70 | 432 | 96 | 664 |
| 19 | 116 | 45 | 255 | 71 | 445 | 97 | 703 |
| 20 | 122 | 46 | 261 | 72 | 446 | 98 | 712 |
| 21 | 125 | 47 | 263 | 73 | 452 | 99 | 723 |
| 22 | 131 | 48 | 265 | 74 | 454 | 100 | 731 |
| 23 | 132 | 49 | 266 | 75 | 455 | 101 | 732 |
| 24 | 134 | 50 | 271 | 76 | 462 | 102 | 734 |
| 25 | 143 | 51 | 274 | 77 | 464 | 103 | 743 |
| 26 | 145 | 52 | 306 | 78 | 465 | 104 | 754 |
