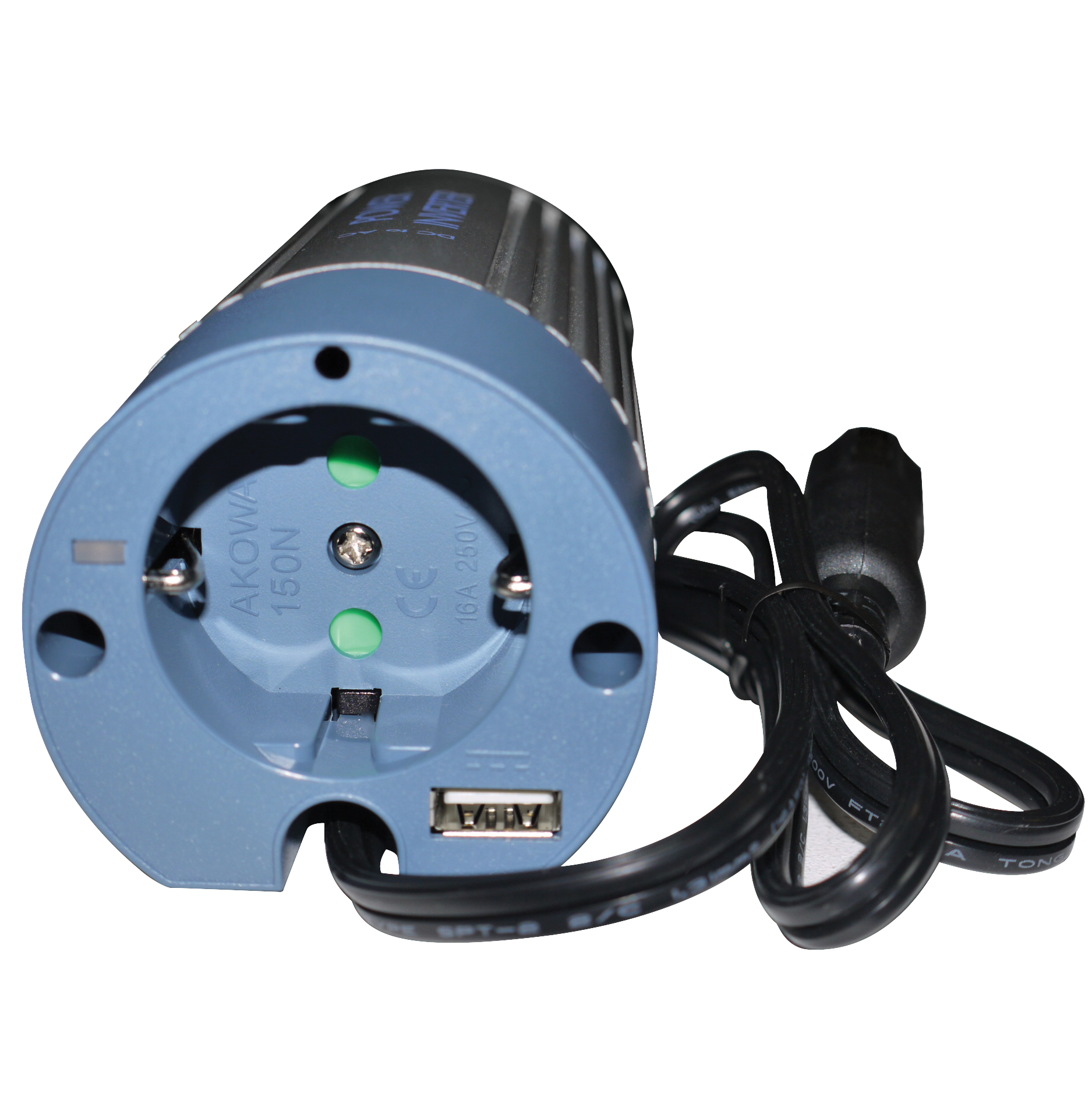

12 V / 220 V - 150 W

Art. N°: ACMA612

Size (mm) : Ø 65 x 170

: Output signal	Modified sine wave
: Power Source	10 to 15 V CC
: Max. load current	15 A
: Standby current	< 0,25 A
: Output voltage	220 V (AC) +/- 2%
: Output frequency	50 Hz / 60 Hz (+/- 2 %)
: Continuous Output Power	150 W
: Peak output power	300 W
: USB power supply	5 V DC 500 mA (Max.)
: Efficiency	90 %
: Thermal protection	60° C ± 5°C
: Overload protect
: Short circuit protection
: too low battery voltage alarm	10 ± 0,5 V DC
: Low battery cut-off	9,5 ± 0,5 V DC
: Overvoltage protection
: Reverse polarity protection	Yes (by fuse)
: Input fuse	15 A
: Size (mm)	Ø 65 x 170
: Weight	480 g
: Output jack	,
