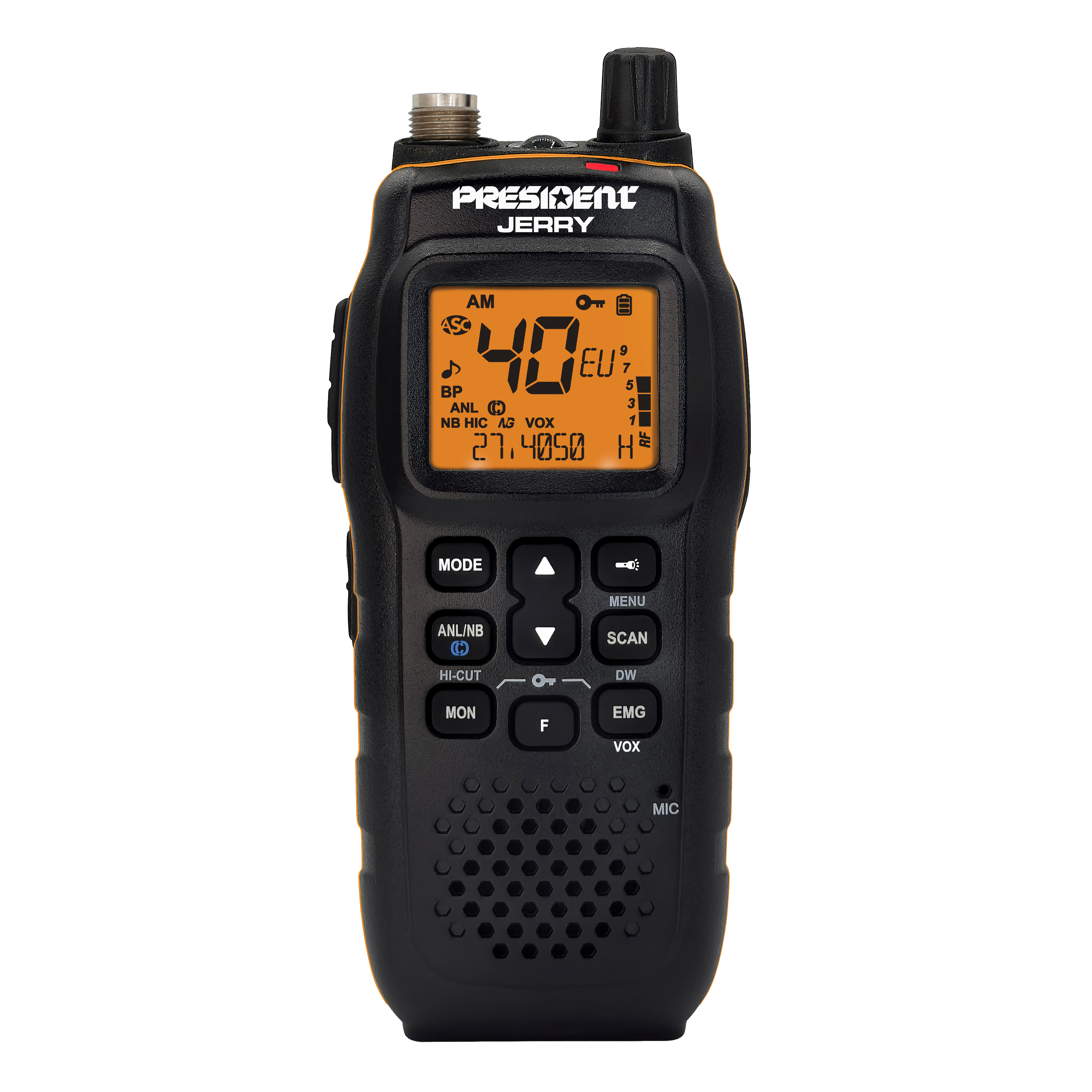

JERRY NEW

Art. N°: TXPR612
Size (mm) : 152 (H) x 66.5 (W) x 37 (D) Supply : 7,4 V (conf. portable) / 12 V (conf. mobile) AM : FM : Scan : channels Scan Skip : Filter ANL : Filter NB : Filter HI-CUT :

Never use two antennas at the same time, as this may damage the device and reduce its performance.

Features

: Size (mm)   152 (H) x 66.5 (W) x 37 (D)
: Weight   305 g (with battery, without antenna)
: Flashlight (LED)

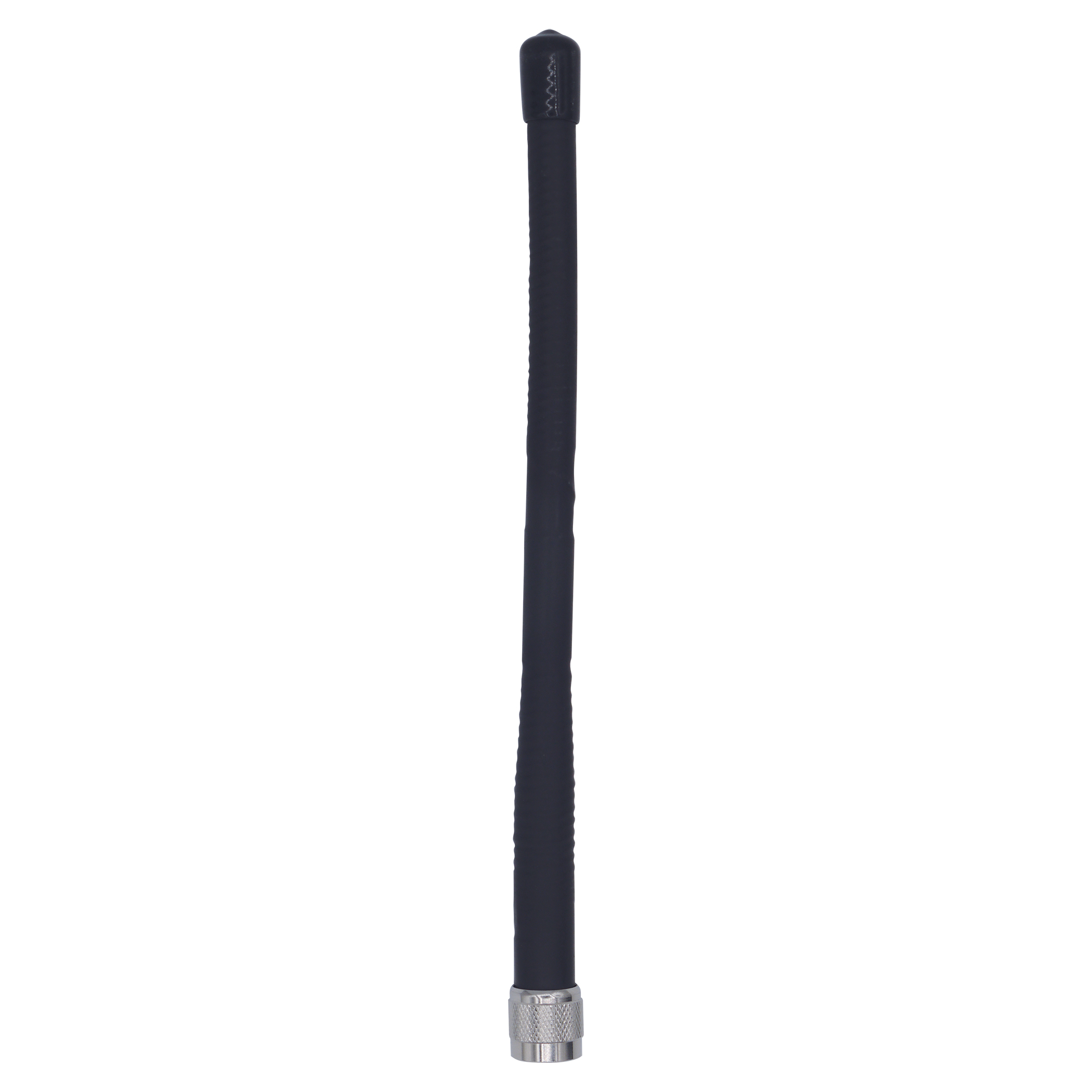

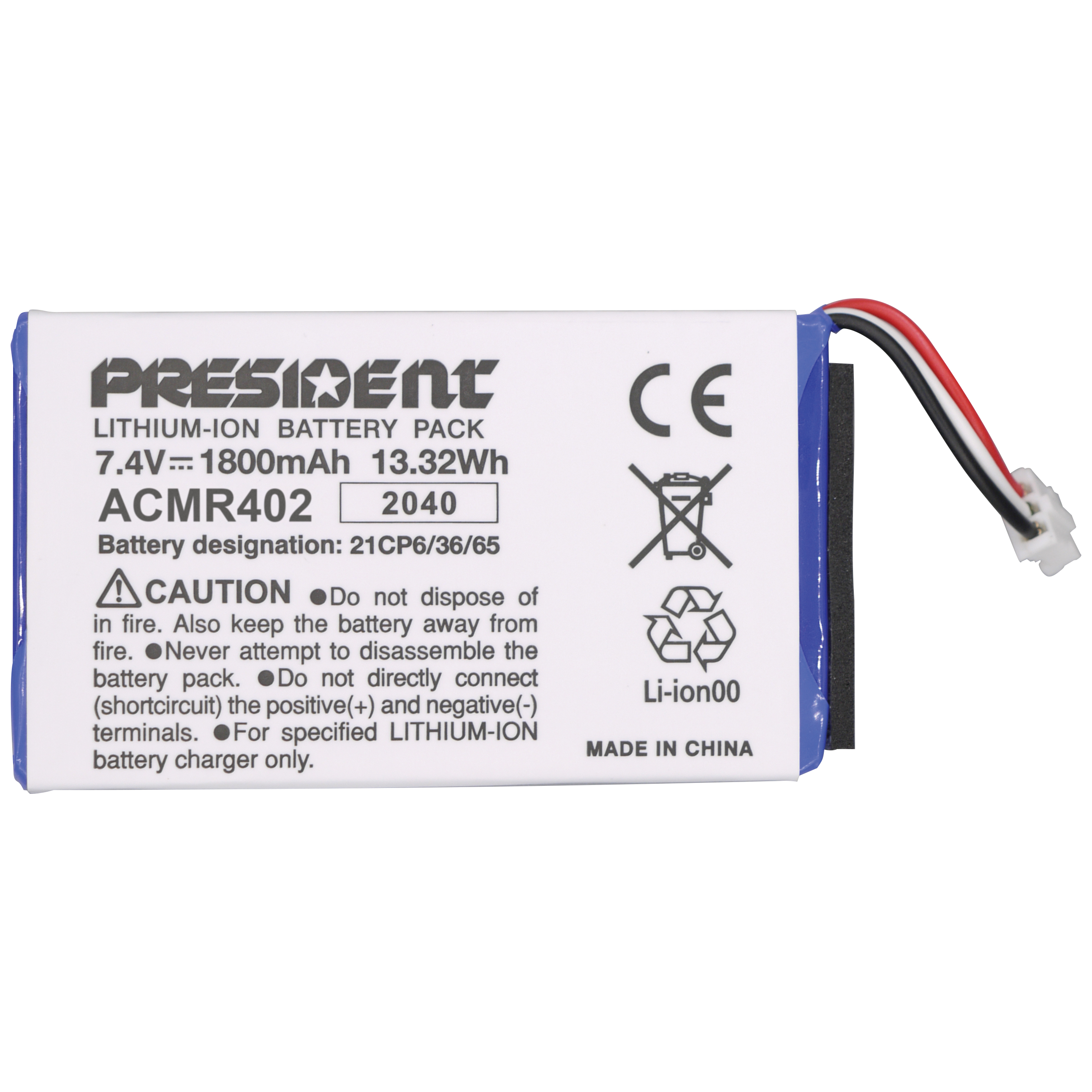

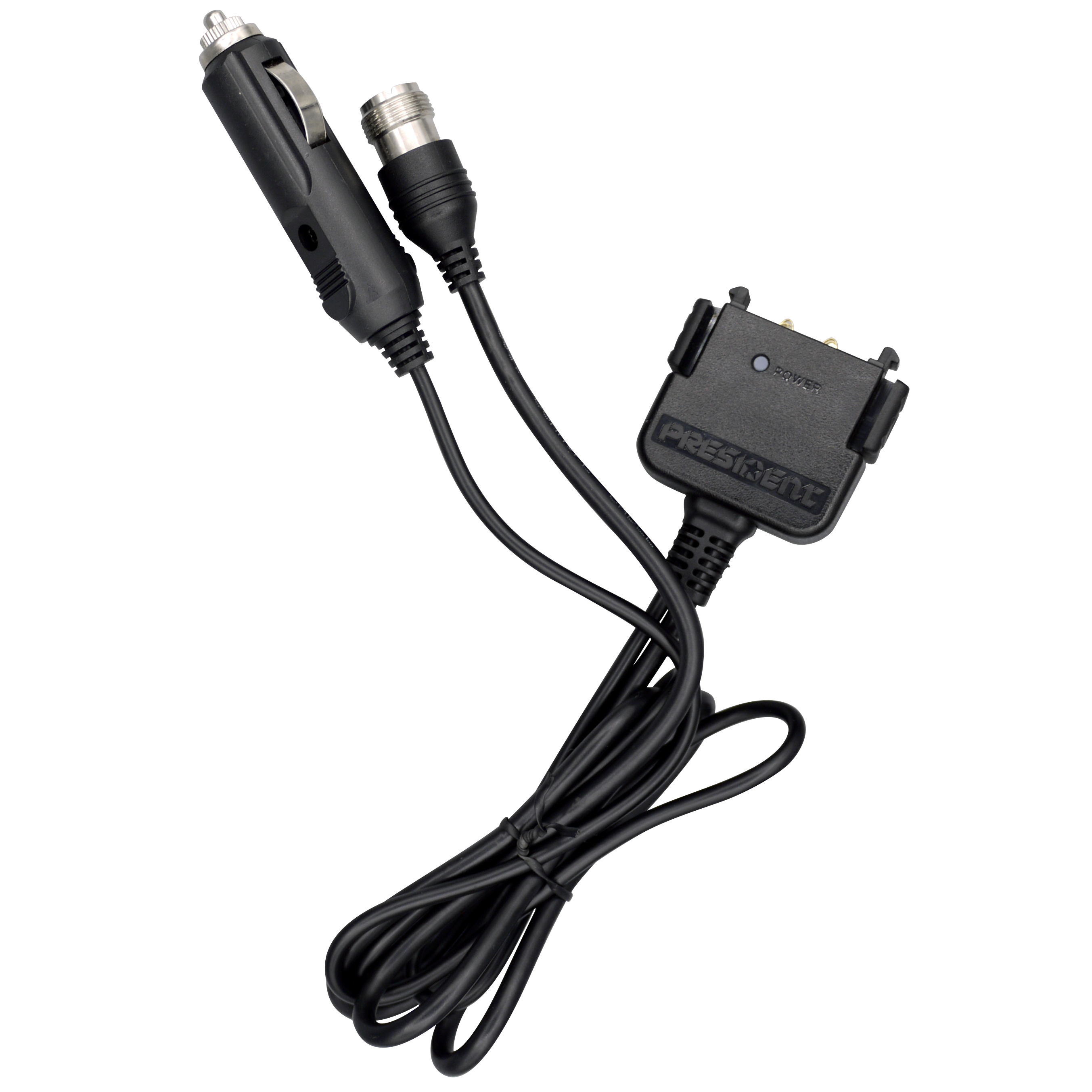

: Accessories supplied   1 Antenne flexible , battery Li-Ion , 1 Adaptateur Mobile , 1 Fusible , User manual
: Antenna socket   S-20
: Antenna impedance   50 ohms
: Multiconfiguration   EU / U / D / PL / IN
: Number of channels   40
: Frequency ranges   from 26.965 MHz to 27.405 MHz
: Power supply   7.4 V (Handheld configuration) / 13.2 V (Mobile configuration)
: Microphone plug   jack Ø2.5
: Front loudspeaker
: External loudspeaker jack
: Loud speaker   16 ohms, 1 W
: Display   LCD multifunction
: Channel display
: Frequencies display
: S-meter   Digital
: Modulation modes   AM / FM
: Volume adjustment and ON/OFF
: Squelch   Manual squelch
: ASC
: Channel selector   Up / down
: Mode switch
: F / Menu function key
: Key Beep   , Switchable
: Roger beep   , Switchable , 6 tones
: Key locking
: Tone
: Channel preselection   2 , emergency channel (EMG) programmable
: Dual watch
: Scan   channels
: Scan Skip
: Vox
: TOT
: Filter ANL
: Filter NB
: Filter HI-CUT
: Noise Gate
: Monitor
:Frequency allowance  ± 200 Hz
:Carrier power  4 W (AM/FM)
:Transmission interference  < 4 nW (-54 dBm)
:Audio response   300 Hz to 3 kHz
:Emitted power in the adj. channel  < 20 μW
:Microphone sensitivity  7 mV
:Drain  1,8 A max.
:Modulated signal distortion  2%
:Max. sensitivity at 20 dB sinad  0.5 μV - 113 dBm (AM) / 0.35 μV - 116 dBm (FM)
:Frequency response  300 Hz to 3 kHz
:Adjacent channel selectivity  60 dB
:Maximum audio power  1 W
:Squelch sensitivity  min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
:Frequency image rejection rate  60 dB
:Intermediate frequency rej. rate  70 dB
:Drain  Mode ECO
