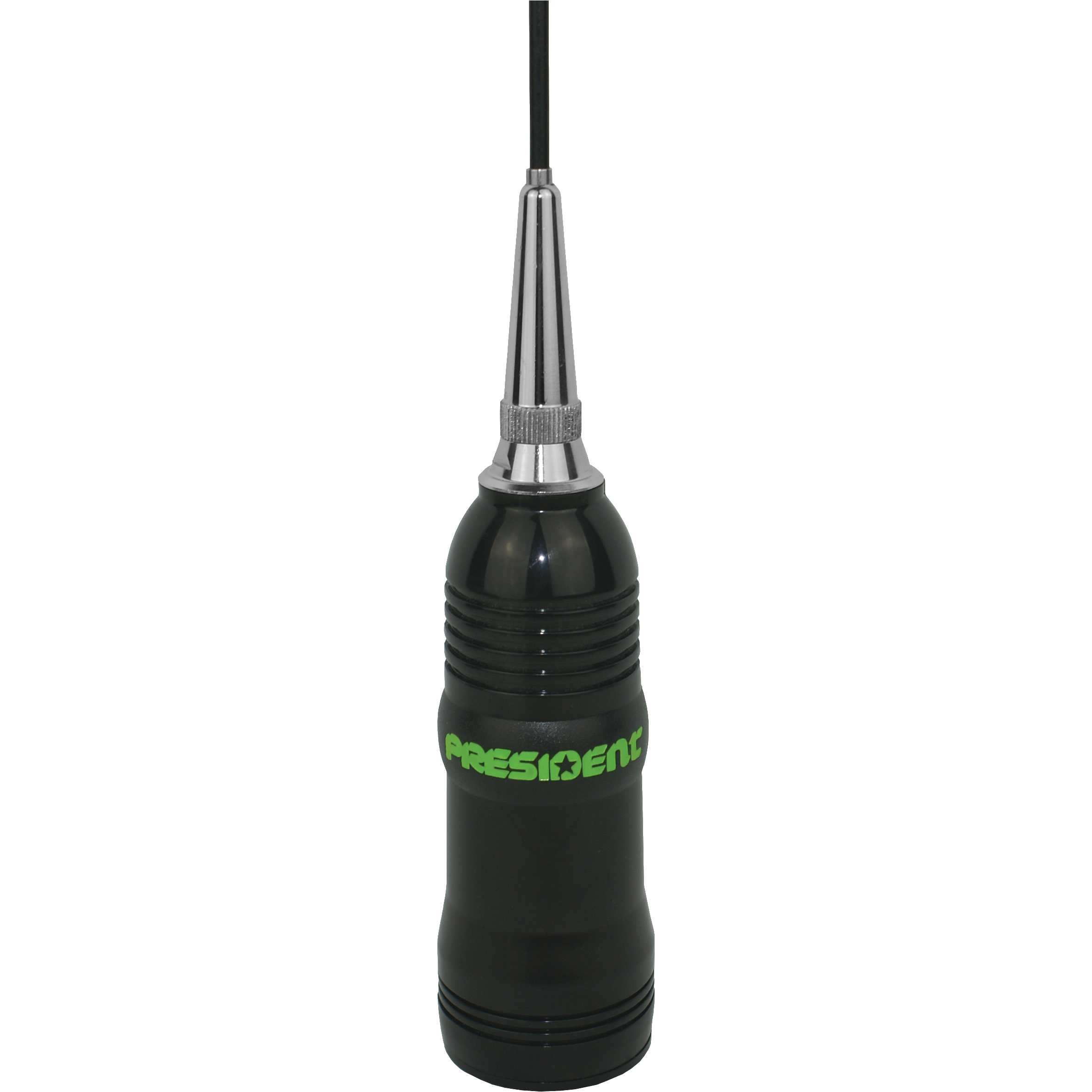

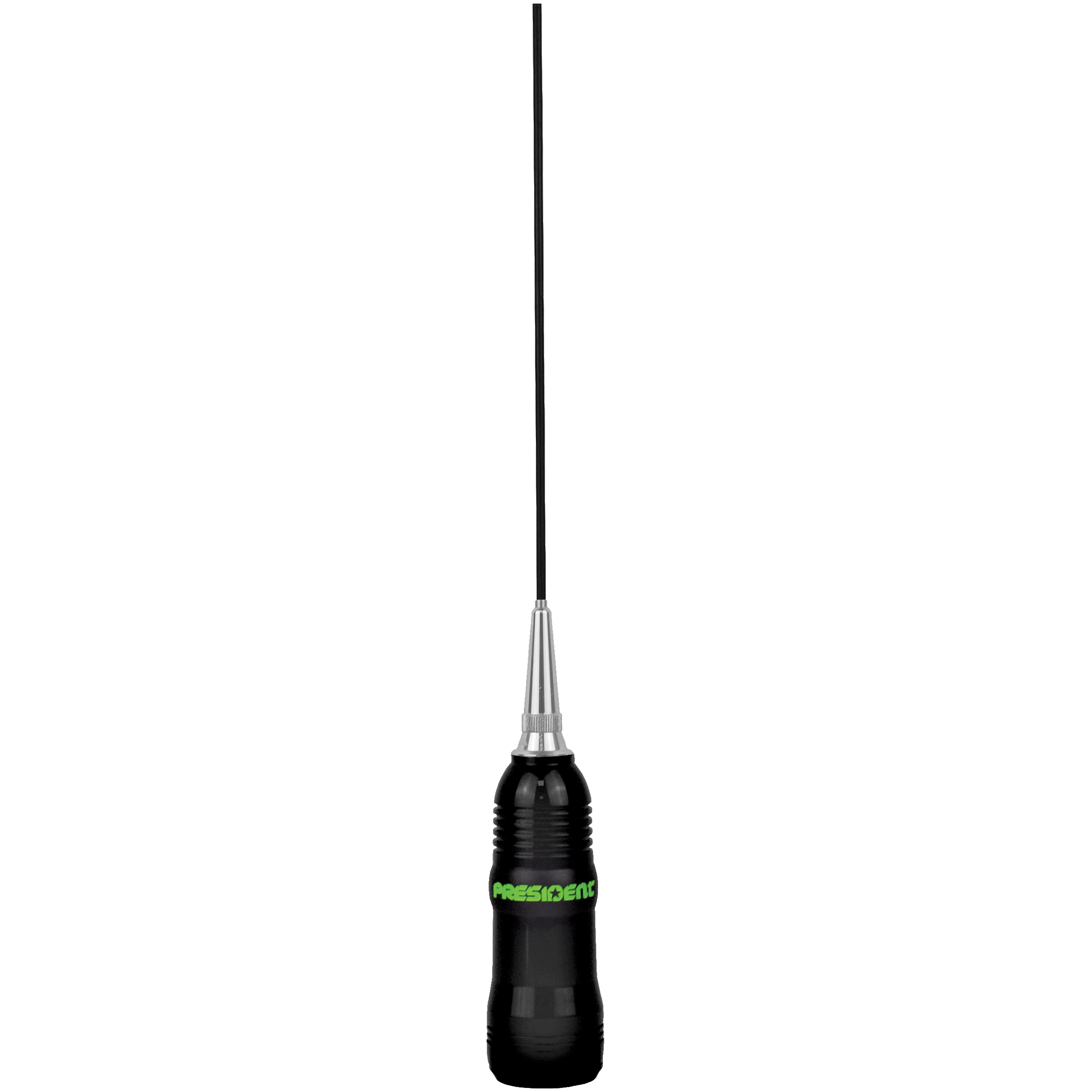

COLORADO 800 WB new

Ref.: AMMI914

without base and cable

5/8 wave
1.2/1 preadjusted
+ 5 dBi
140 Watt P.E.P
8000 kHz (800 cx)
0.250 kg
1300 mm
without base - PL259
Fiber / graphite


Specifications

Antenna type: 5/8 wave
Impedance: 50 Ohms
Frequency: 1-30 MHz (SWR 2:1)
Polarization: Vertical
S.W.R. value: 1.2/1 preadjusted
Gain: + 5 dBi
Maximum power: 140 Watt P.E.P
Band width / Number of channels: 8000 kHz (800 cx)
Weight: 0.250 kg
Length: 1300 mm

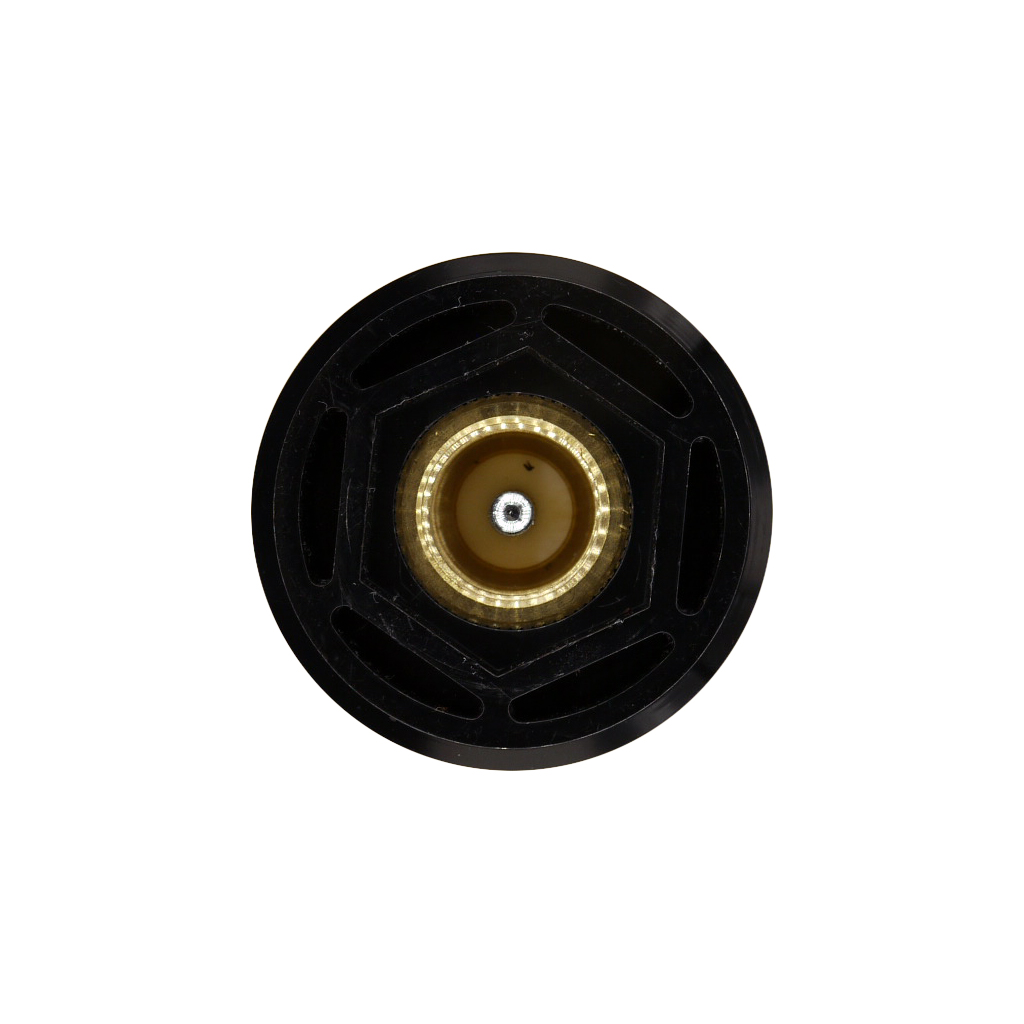

Base type: without base - PL259
Whip: Fiber / graphite
