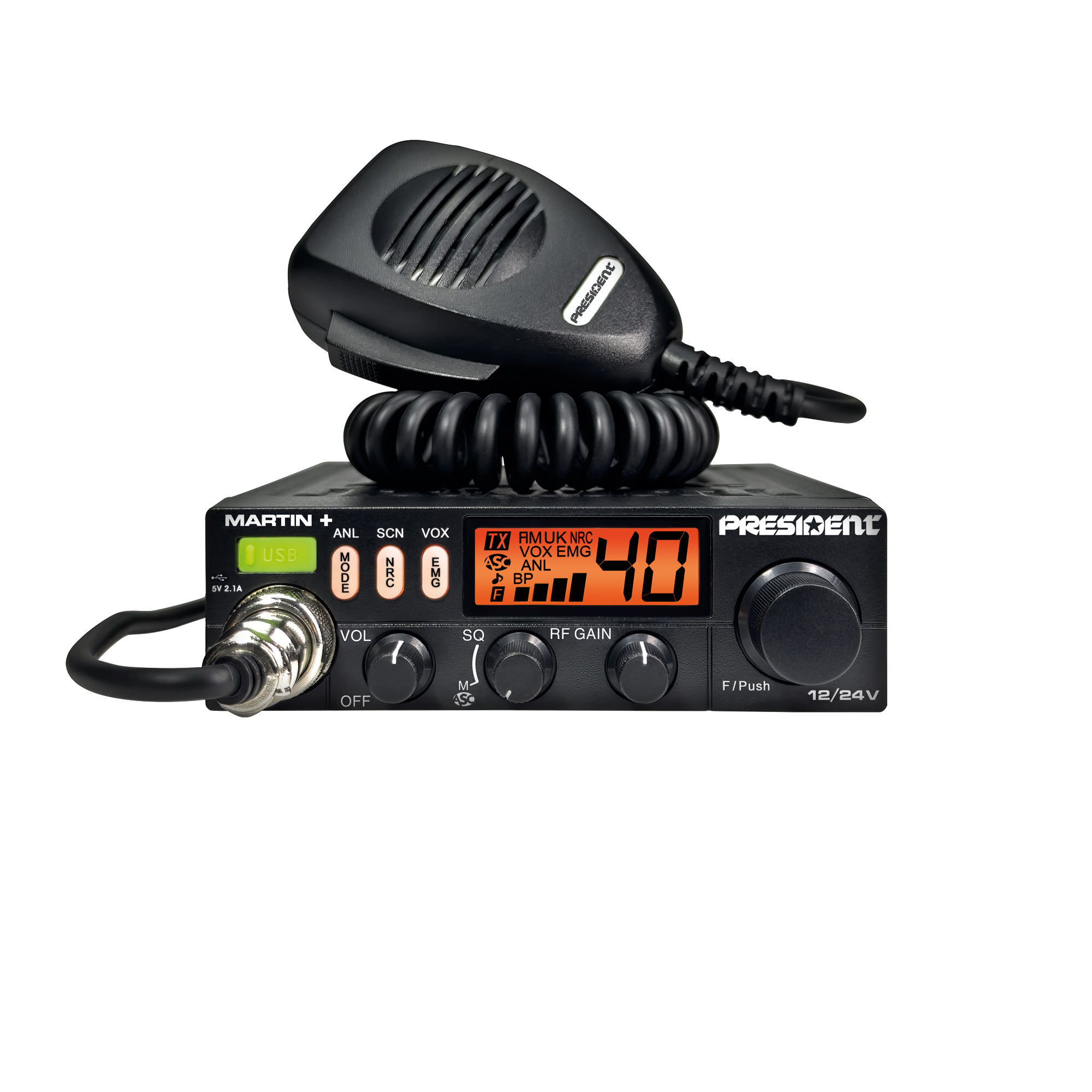

MARTIN +

Art. N°: TXPR318

Size (mm) : 115 (W) x 165 (D) x 35 (H) Supply : 12 V / 24 V AM : FM : P CHANNELS : Scan : channels Scan Skip : Filter ANL : NRC :

: Size (mm)	115 (W) x 165 (D) x 35 (H)
: Weight	± 0.517 Kg
: Accessories supplied	Ultra light electret microphone with support , mounting cradle , screws , power cord with fuse
: Antenna socket	SO-239
: Antenna impedance	50 ohms
: Multiconfiguration	EU / U / D / PL / IN
: Number of channels	40
: Frequency ranges	from 26.965 MHz to 27.405 MHz
: Power supply	13.2 V / 26.4 V
: Microphone Up/Down	Activate / Deactivate
: Microphone plug	front (6 pins)
: Compatible microphone type	Electret
: External Vox microphone jack
: External loudspeaker jack
: USB socket (front)	5 V / 2,1 A
: Display	LCD multifunction
: Channel display
: S-meter	Digital
: Modulation modes	AM / FM
: Volume adjustment and ON/OFF
: Squelch	Manual squelch
: ASC
: Channel selector	Rotary
: Mode switch
: P CHANNELS
: F / Menu function key
: Key Beep	, Switchable
: Roger beep	, Switchable
: Channel preselection	2 , emergency channel (EMG) programmable
: Scan	channels
: Scan Skip
: RF Gain
: Vox
: TOT
: Filter ANL
: NRC

:Frequency allowance	± 200 Hz
:Carrier power	4 W (AM/FM)
:Transmission interference	< 4 nW (-54 dBm)
:Audio response	300 Hz to 3 kHz
:Emitted power in the adj. channel	< 20 μW
:Microphone sensitivity	3 mV
:Drain	< 2 A max. (with 13.2 V modulation) / < 1 A max. (with 26.4 V modulation)
:Modulated signal distortion	2%

:Max. sensitivity at 20 dB sinad	0.5 μV - 113 dBm (AM) / 0.35 μV - 116 dBm (FM)
:Frequency response	300 Hz to 3 kHz
:Adjacent channel selectivity	60 dB
:Maximum audio power	3 W
:Squelch sensitivity	min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
:Frequency image rejection rate	60 dB
:Intermediate frequency rej. rate	70 dB
:Drain	180 ~ 500 mA max. (13.2 V) / 90 ~ 250 mA max. (26.4 V)
