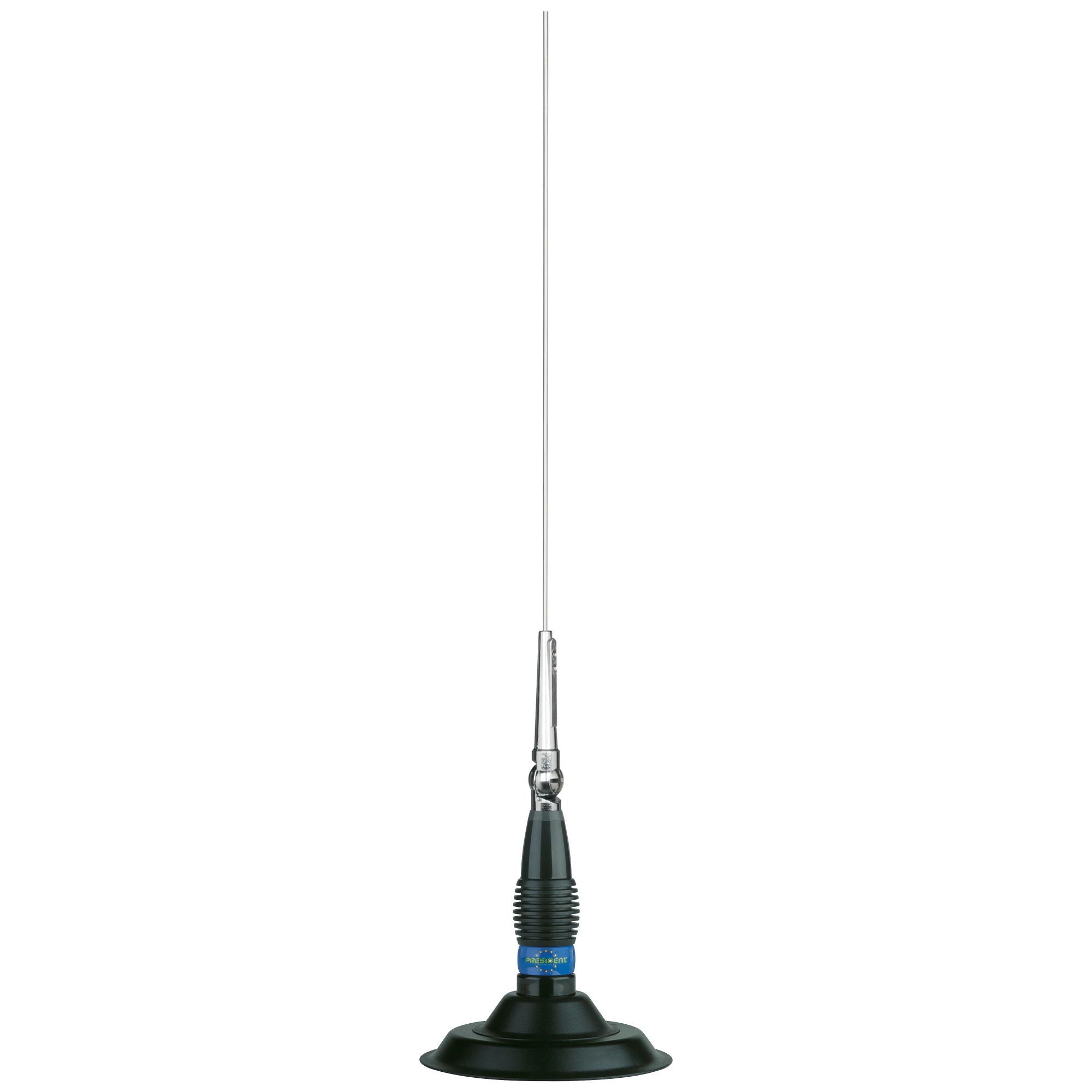

MLA - 145

Ref.: AMMI637
5/8 wave
1,1/1 adjustable
+ 6 dBi
500 Watt P.E.P
1400 kHz (140 cx)
1,100 kg
1580 mm
Magnetic
AC4 Stainless steel


Specifications

Antenna type: 5/8 wave
Impedance: 50 Ohms
Frequency: 26-28 MHz
Polarization: Vertical

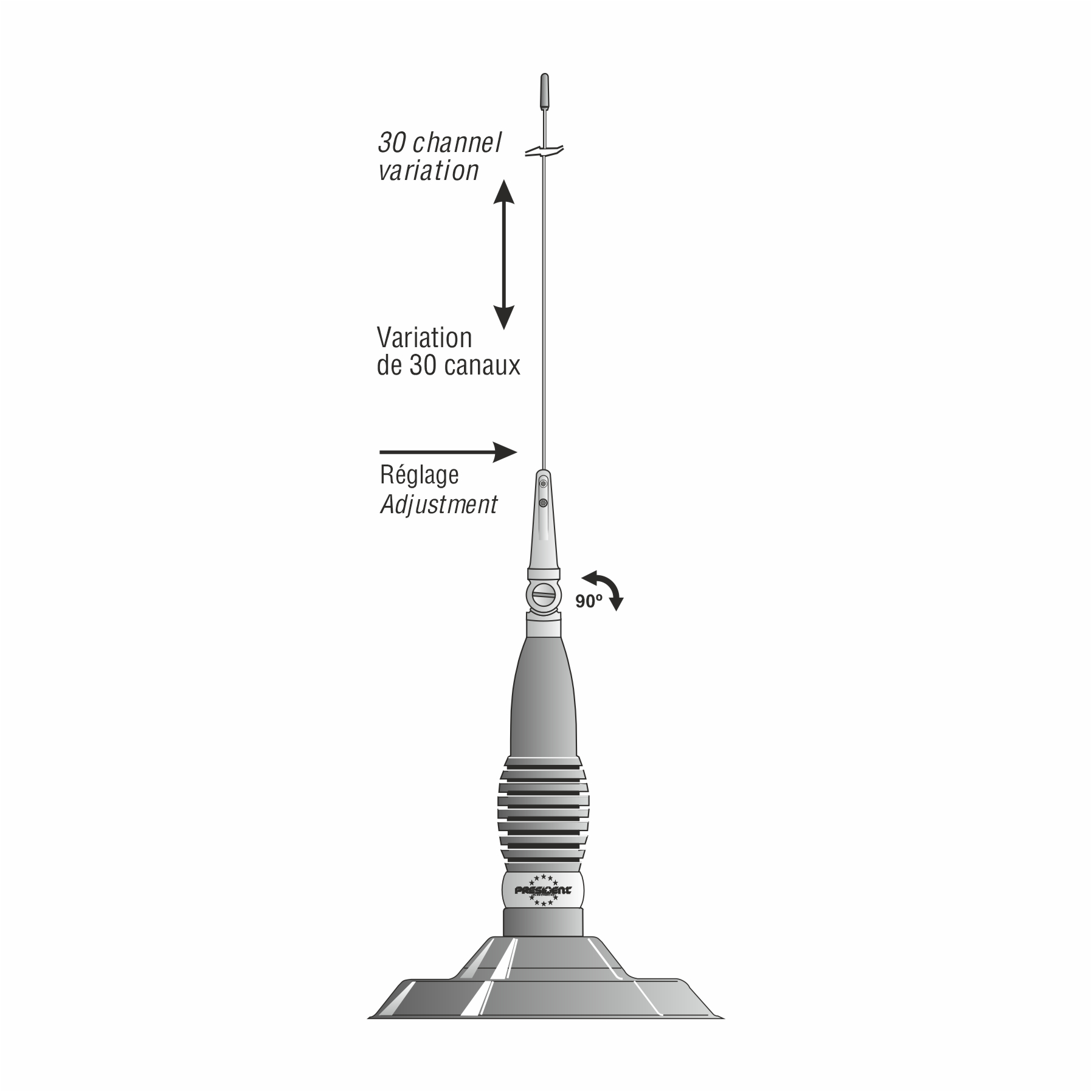

S.W.R. value: 1,1/1 adjustable
Gain: + 6 dBi
Maximum power: 500 Watt P.E.P
Band width / Number of channels: 1400 kHz (140 cx)
Weight: 1,100 kg
Length: 1580 mm
Base type: Magnetic
Reclining:
Dismantled magnetic base:
Whip: AC4 Stainless steel
