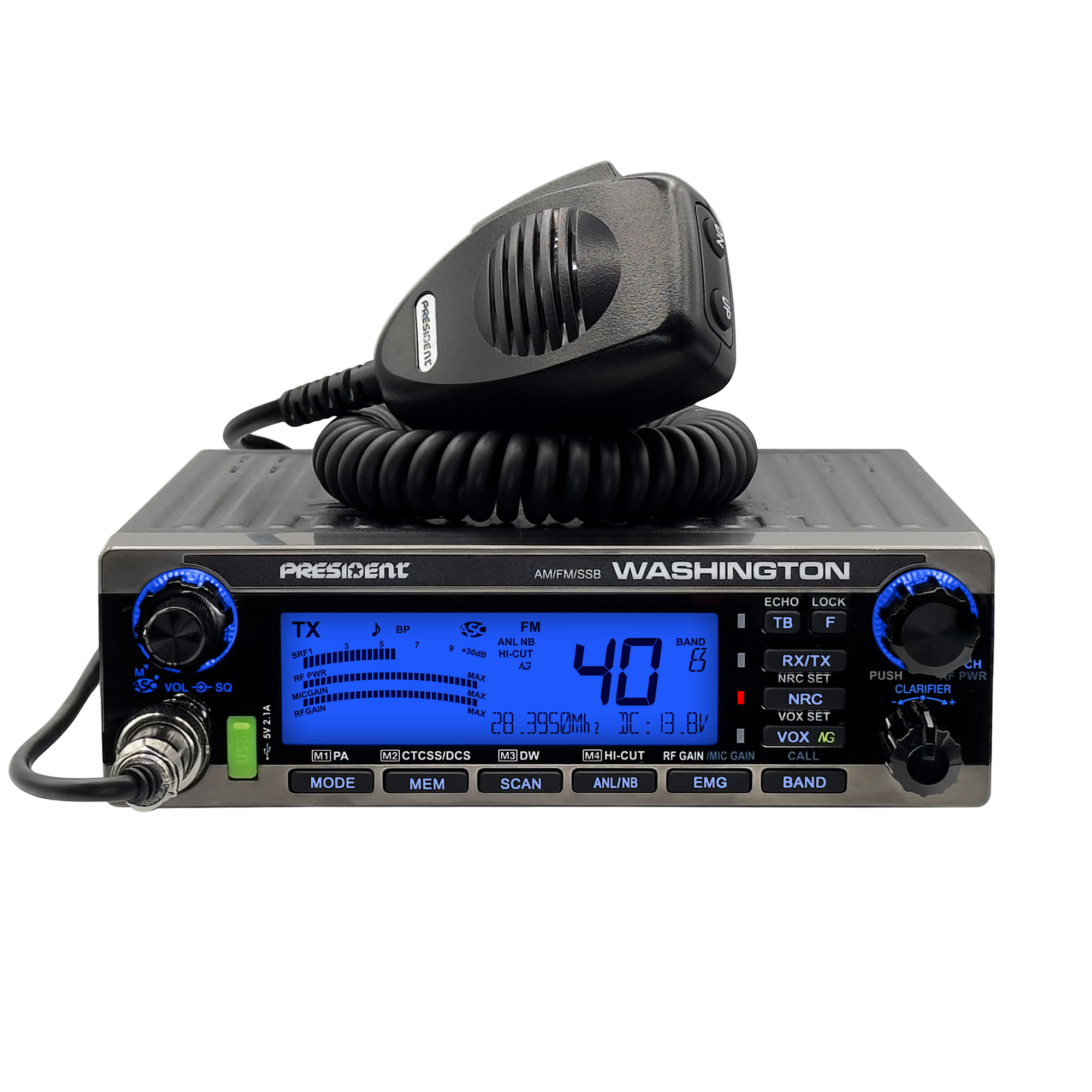

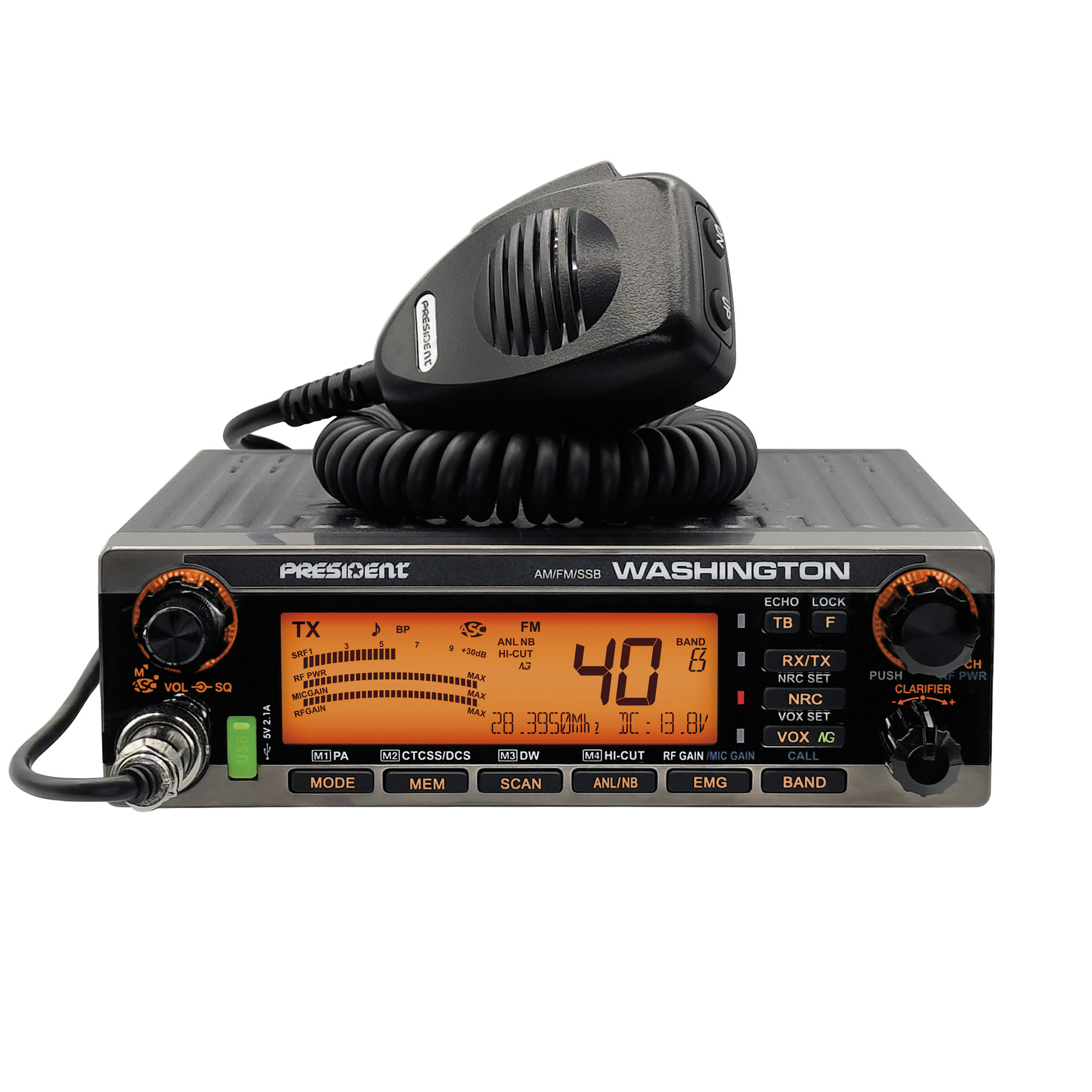

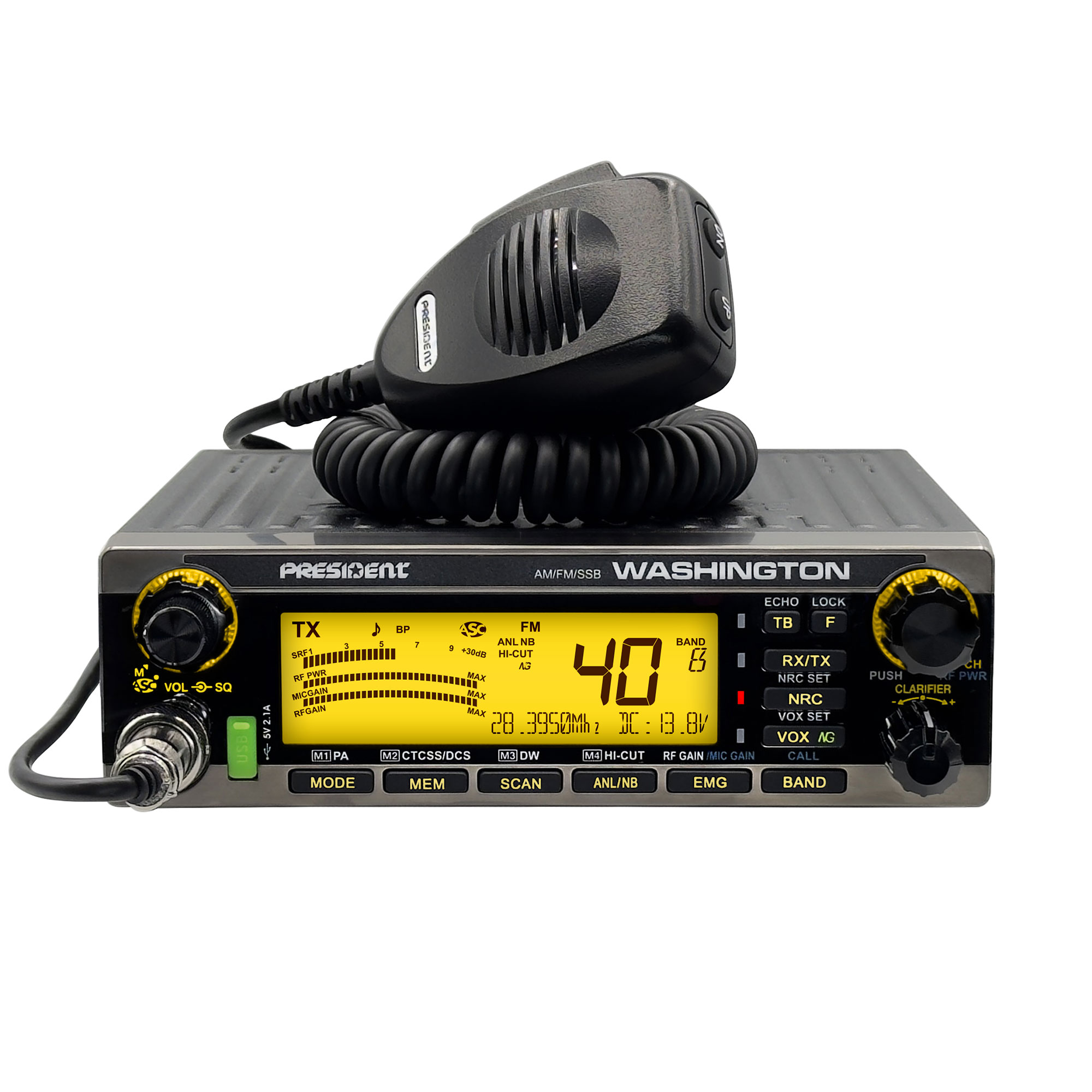

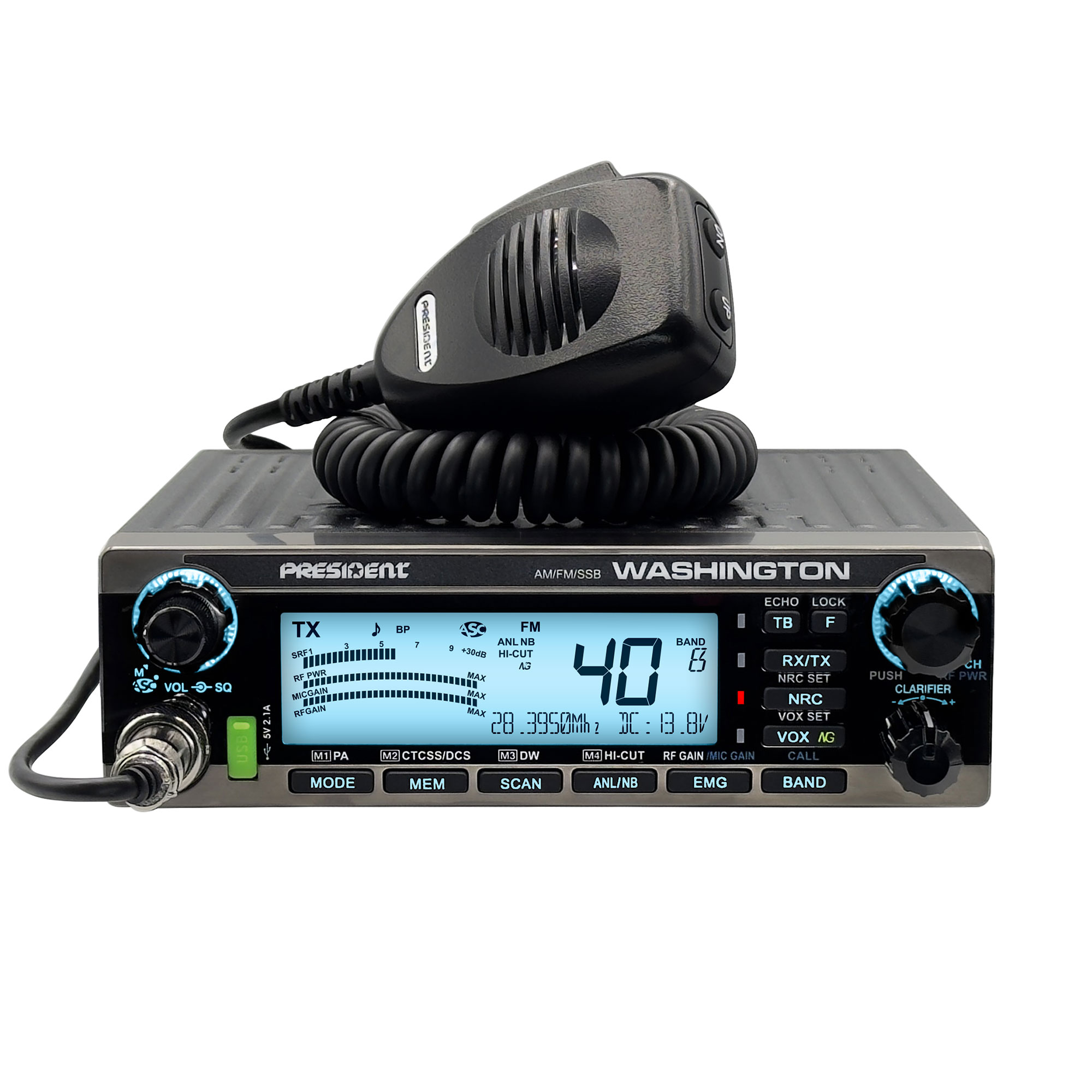

WASHINGTON
Art. N°: TXPR901
Size (mm) :
170 (W) x 250 (D) x 52 (H)
Supply :
12 V
DC\TEMP :
AM :
FM :
SSB :
Automatic Relay :
Memory :
4
Scan :
channels , memories
Scan Skip :
CALL function :
Call / Message :
Filter ANL :
Filter NB :
Filter HI-CUT :
NRC :
Power limitation :
4/10W
APM :
Notes :
FANS (Options - Not included with the radio)
80+ Watt PEP
|
|
|
|
|
|
|
Features
| : Size (mm) | 170 (W) x 250 (D) x 52 (H) |
| : Weight | 1,4 kg |
| : Accessories supplied | 1 microphone UP/DOWN and its hanger , 1 mounting bracket with fixing screws , power cord with fuse |
| : Antenna socket | SO-239 |
| : Antenna impedance | 50 ohms |
| : Multiconfiguration | EU / U / D / PL / IN |
| : Frequency ranges | from 24.890 Mhz to 24.990 Mhz and from 28.000 Mhz to 29.700 Mhz (continuous scanning) |
| : Power supply | Nominal 13.8V DC, negative ground (10.5 VDC to 16.0 VDC) |
| : Microphone plug | front (6 pins) |
| : Compatible microphone type | Electret , Dynamic |
| : External Vox microphone jack | |
| : External loudspeaker jack | |
| : Public address | |
| : External HP PA socket | |
| : USB socket (front) | 5 V / 2,1 A |
| : Display | LCD multifunction |
| : Dimmer | |
| : Frequencies display | |
| : Band name | |
| : VFO mode | |
| : S-meter | Digital |
| : Modulation modes | AM / FM / USB / LSB |
| : Volume adjustment and ON/OFF | |
| : Squelch | Manual squelch |
| : ASC | |
| : Channel selector | Rotary |
| : Mode switch | |
| : F / Menu function key | |
| : Automatic Relay | |
| : Key Beep | , Switchable |
| : Roger beep | , Switchable , 6 tones |
| : Key locking | |
| : Tone | |
| : Memory | 4 |
| : Channel preselection | 2 , channel 9 & 19 , emergency channel (EMG) programmable |
| : Span | |
| : Dual watch | |
| : Scan | channels , memories |
| : Scan Skip | |
| : RF Power | |
| : RF Gain | |
| : Mike-Gain | |
| : Clarifier | |
| : Talkback | |
| : Vox | |
| : Automatic SWR meter | |
| : SWR (Power Reading /SWR) | |
| : Echo | |
| : CALL function | |
| : TOT | |
| : Filter ANL | |
| : Filter NB | |
| : Filter HI-CUT | |
| : NRC | |
| : Noise Gate | |
| : CTCSS | 38 tones |
| : DCS | 104 codes |
| : APM | |
| : Notes | FANS (Options - Not included with the radio) |
| :Frequency allowance | ± 200 Hz |
| :Carrier power | 70 W PEP (AM/USB/LSB) / 50 W (FM) |
| :Power limitation | 4/10W |
| :APM | |
| :Transmission interference | < 4 nW (-54 dBm) |
| :Audio response | 300 Hz to 3 kHz |
| :Emitted power in the adj. channel | < 20 μW |
| :Microphone sensitivity | 3 mV |
| :Drain | 6 A (with modulation) |
| :Modulated signal distortion | 2% |
| :Max. sensitivity at 20 dB sinad | 0.7 µV - 110 dBm (AM) / 0.35 µV - 116 dBm (FM) / 0.28 µV - 118 dBm (USB/LSB/CW) |
| :Frequency response | 300 Hz to 3 kHz |
| :Adjacent channel selectivity | 60 dB |
| :Maximum audio power | 3 W |
| :Squelch sensitivity | min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm |
| :Frequency image rejection rate | 60 dB |
| :Intermediate frequency rej. rate | 70 dB |
| :Drain | 400 mA nominal / 600 mA max. |
| N° | Freq. (Hz) | N° | Freq. (Hz) | N° | Freq. (Hz) |
|---|---|---|---|---|---|
| 00 - oF | OFF | 13 | 103.5 | 26 | 162.2 |
| 1 | 67.0 | 14 | 107.2 | 27 | 167.9 |
| 2 | 71.9 | 15 | 110.9 | 28 | 173.8 |
| 3 | 74.4 | 16 | 114.8 | 29 | 179.9 |
| 4 | 77.0 | 17 | 118.8 | 30 | 186.2 |
| 5 | 79.7 | 18 | 123.0 | 31 | 192.8 |
| 6 | 82.5 | 19 | 127.3 | 32 | 203.5 |
| 7 | 85.4 | 20 | 131.8 | 33 | 210.7 |
| 8 | 88.5 | 21 | 136.5 | 34 | 218.1 |
| 9 | 91.5 | 22 | 141.3 | 35 | 225.7 |
| 10 | 94.8 | 23 | 146.2 | 36 | 233.6 |
| 11 | 97.4 | 24 | 151.4 | 37 | 241.8 |
| 12 | 100.0 | 25 | 156.7 | 38 | 250.3 |
| N° | DCS (Octal) | N° | DCS (Octal) | N° | DCS (Octal) | N° | DCS (Octal) |
|---|---|---|---|---|---|---|---|
| 1 | 23 | 27 | 152 | 53 | 311 | 79 | 466 |
| 2 | 25 | 28 | 155 | 54 | 315 | 80 | 503 |
| 3 | 26 | 29 | 156 | 55 | 325 | 81 | 506 |
| 4 | 31 | 30 | 162 | 56 | 331 | 82 | 516 |
| 5 | 32 | 31 | 165 | 57 | 332 | 83 | 523 |
| 6 | 36 | 32 | 172 | 58 | 343 | 84 | 526 |
| 7 | 43 | 33 | 174 | 59 | 346 | 85 | 532 |
| 8 | 47 | 34 | 205 | 60 | 351 | 86 | 546 |
| 9 | 51 | 35 | 212 | 61 | 356 | 87 | 565 |
| 10 | 53 | 36 | 223 | 62 | 364 | 88 | 606 |
| 11 | 54 | 37 | 225 | 63 | 365 | 89 | 612 |
| 12 | 65 | 38 | 226 | 64 | 371 | 90 | 624 |
| 13 | 71 | 39 | 243 | 65 | 411 | 91 | 627 |
| 14 | 72 | 40 | 244 | 66 | 412 | 92 | 631 |
| 15 | 73 | 41 | 245 | 67 | 413 | 93 | 632 |
| 16 | 74 | 42 | 246 | 68 | 423 | 94 | 654 |
| 17 | 114 | 43 | 251 | 69 | 431 | 95 | 662 |
| 18 | 115 | 44 | 252 | 70 | 432 | 96 | 664 |
| 19 | 116 | 45 | 255 | 71 | 445 | 97 | 703 |
| 20 | 122 | 46 | 261 | 72 | 446 | 98 | 712 |
| 21 | 125 | 47 | 263 | 73 | 452 | 99 | 723 |
| 22 | 131 | 48 | 265 | 74 | 454 | 100 | 731 |
| 23 | 132 | 49 | 266 | 75 | 455 | 101 | 732 |
| 24 | 134 | 50 | 271 | 76 | 462 | 102 | 734 |
| 25 | 143 | 51 | 274 | 77 | 464 | 103 | 743 |
| 26 | 145 | 52 | 306 | 78 | 465 | 104 | 754 |
