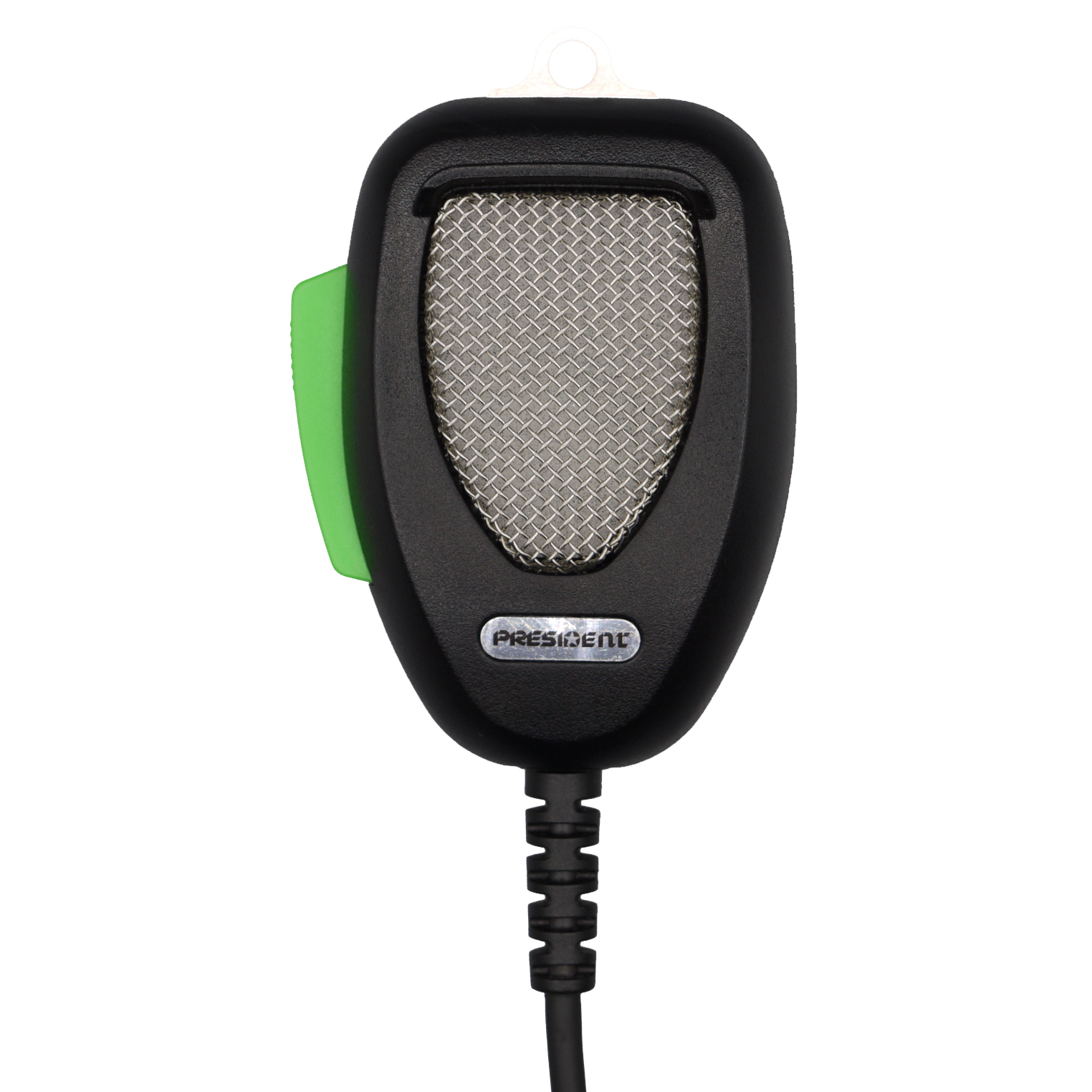

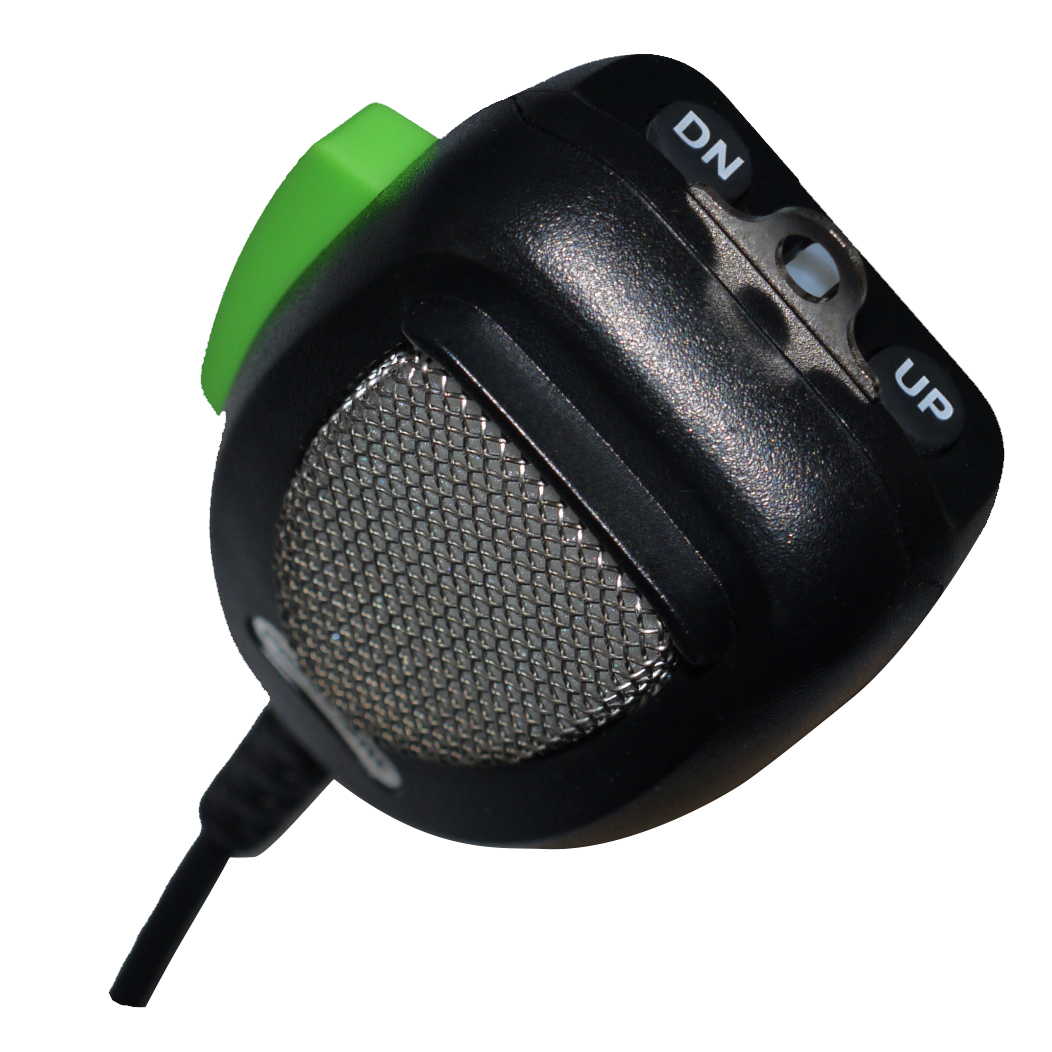

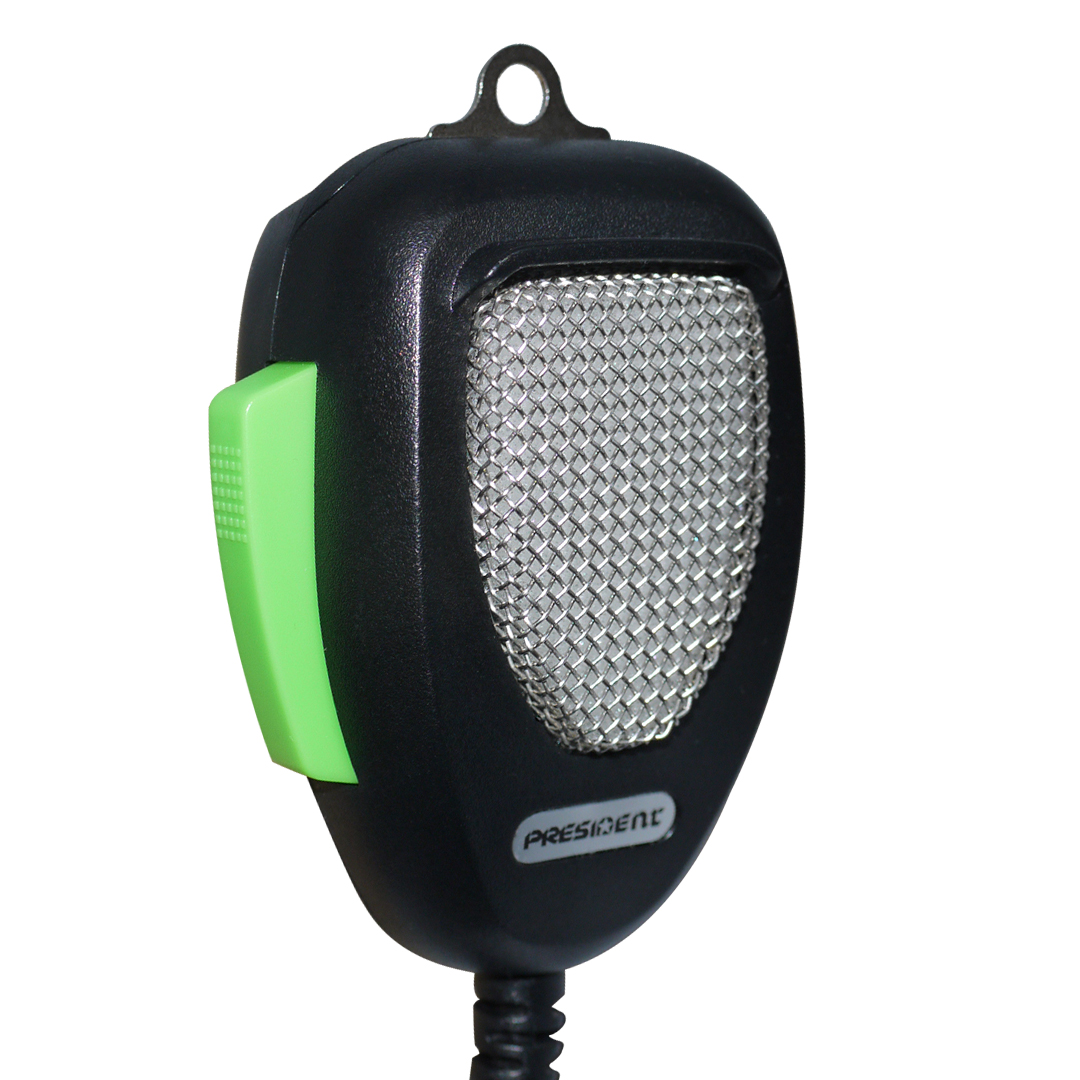

DIGIMIKE
The DIGIMIKE microphone is designed to make your modulation as clear as possible in all modes (AM/FM/SSB) by eliminating the background noise.
In order to optimize the performance of your DIGIMIKE NRC microphone
(NRC: Noise Reduction Circuit), please carefully read the user's manual and note the following points:
- The filtering level from 1 to 5 (maximum level) must be fixed with your correspondent (DURING ANY QSO) who will confirm the optimal sound balance.
- Keep the DIGIMIKE at a minimum distance of 10 cm (4 inches), and avoid direct contact between the DIGIMIKE and your mouth.
- The DIGIMIKE will also work optimally with VOX usage ,
(if your CB radio is equipped with the VOX feature).
ENJOY THE PUREST SOUND WITH YOUR PRESIDENT DIGIMIKE.
|
|
|
Features
| : Microphone socket | 6 pins |
| : UP/DOWN | |
| : Microphone type | Electret |
| : NRC | |
| : Size (mm) | 85 (H) x 64 (L) x 38 (P) micro seul |
| : Weight | 230g |
| N° | CABLES |
|---|---|
| 1 | Modulation |
| 2 | RX |
| 3 | TX - UP/DOWN |
| 4 | |
| 5 | Ground |
| 6 | Power supply |
WARNING: This is an electret microphone. Do not replace the electret microphone with a dynamic one (and vice versa).
On the CB radio, the 6 pin is supplied with 13.2 V.
