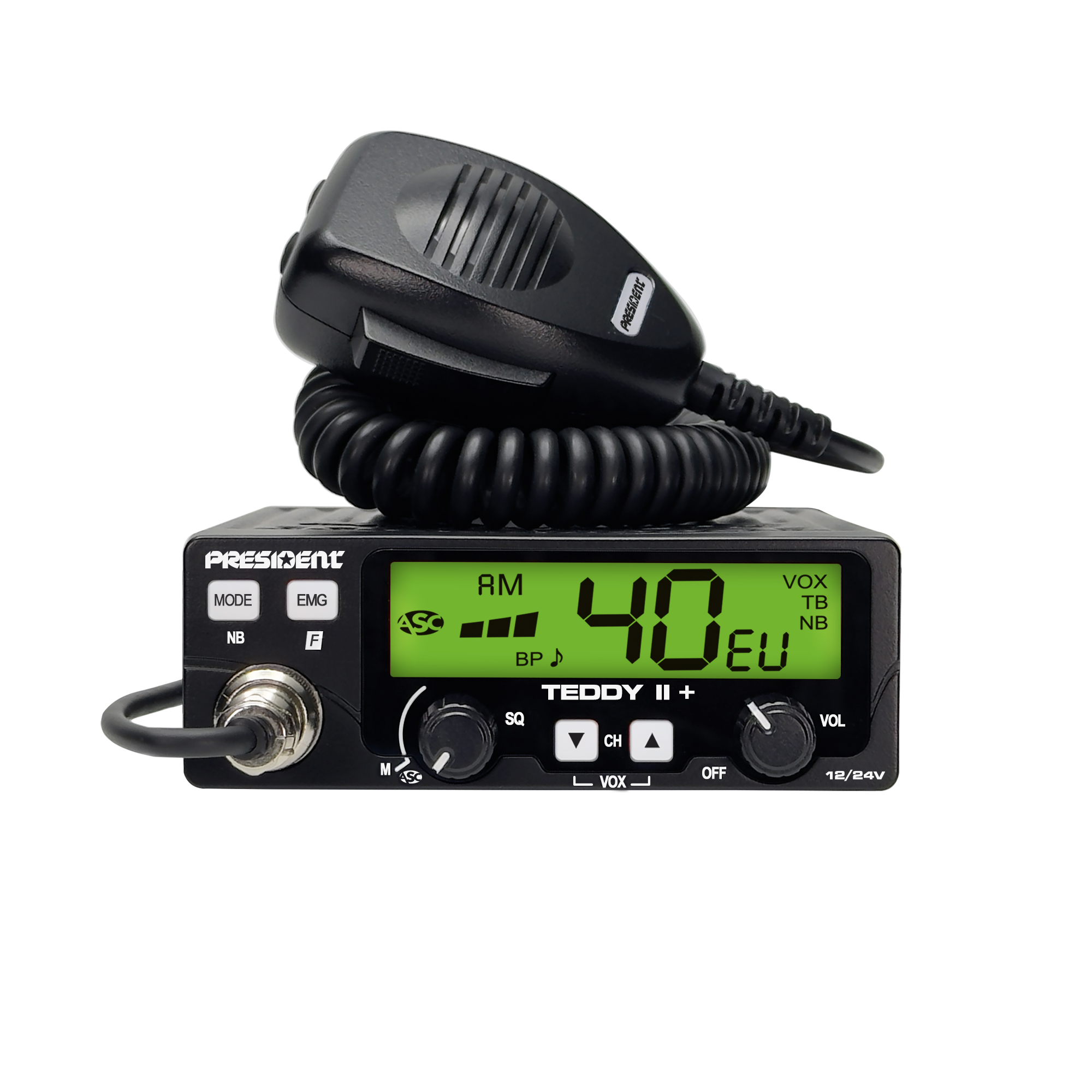

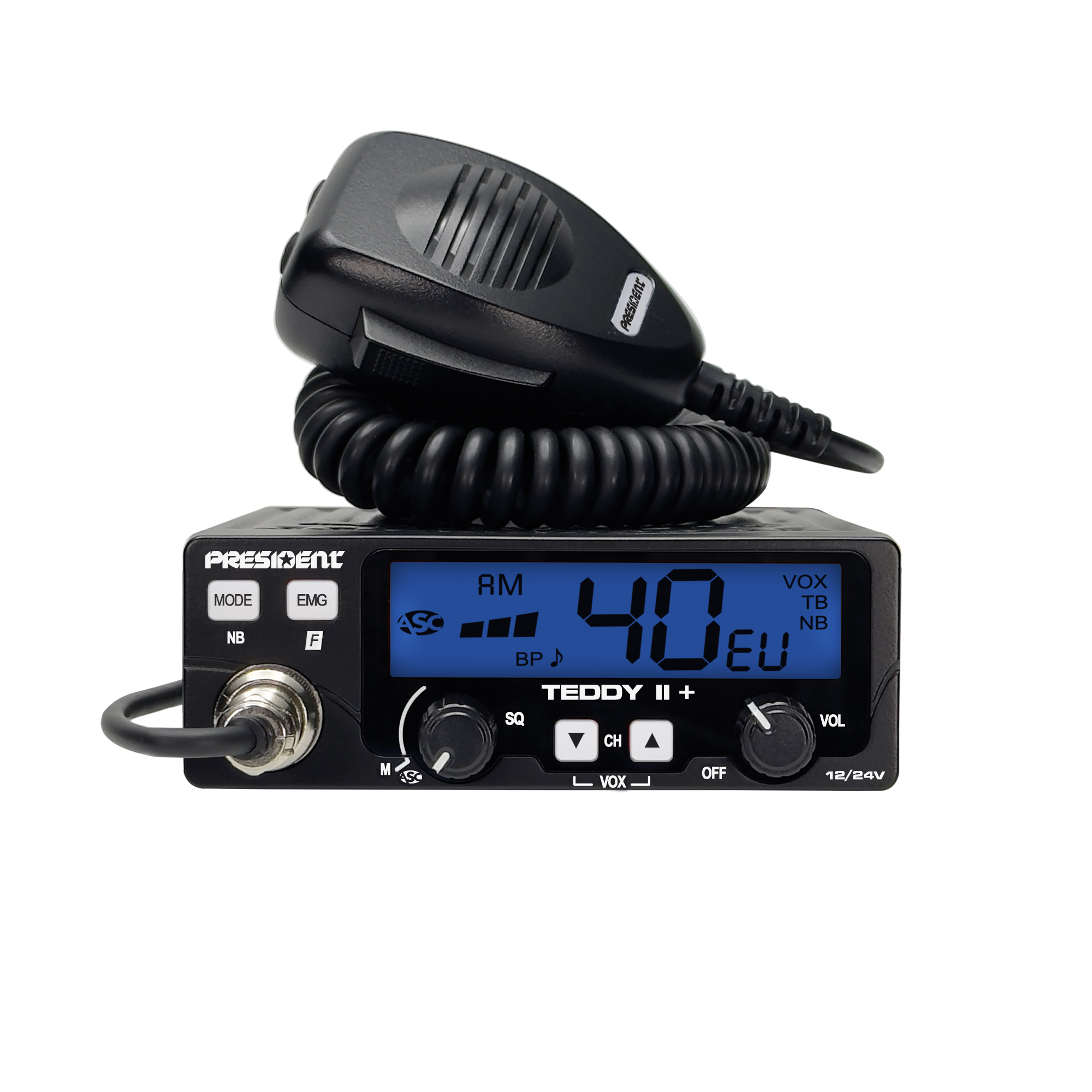

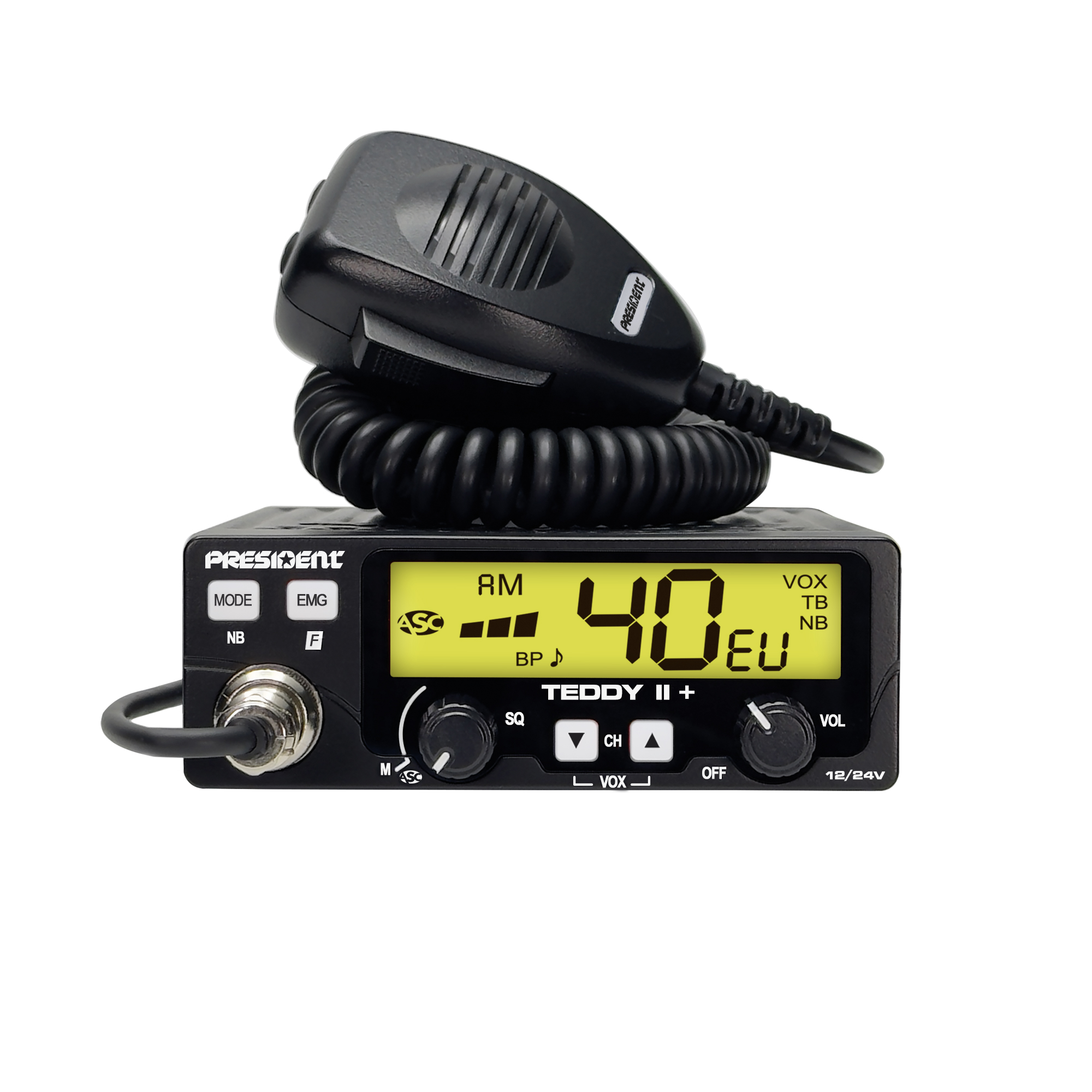

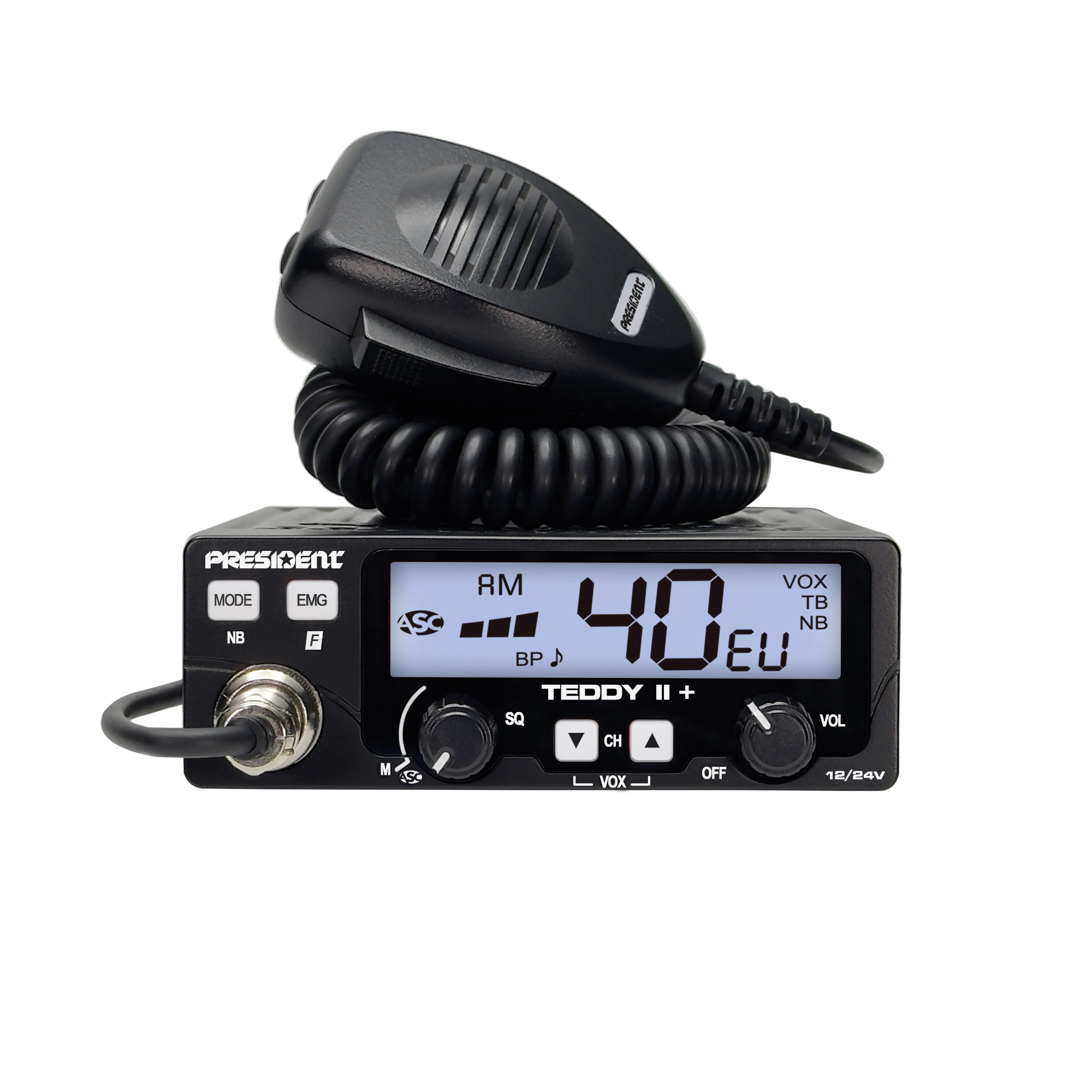

TEDDY II + NEW

Art. N°: TXPR376
Size (mm) : 125 (W) x 151 (D) x 45 (H) Supply : 12 V / 24 V AM : FM : Filter ANL : Built-in Filter NB :

Features

: Size (mm)   125 (W) x 151 (D) x 45 (H)
: Weight   0.9 kg
: Accessories supplied   1 microphone UP/DOWN and its hanger , 1 mounting bracket with fixing screws , power cord with fuse
: Antenna socket   SO-239
: Antenna impedance   50 ohms
: Multiconfiguration   EU / U / D / PL / IN
: Number of channels   40
: Frequency ranges   from 26.965 MHz to 27.405 MHz
: Power supply   13.2 V / 26.4 V
: Microphone Up/Down   Activate / Deactivate
: Microphone plug   front (6 pins)
: Compatible microphone type   Electret
: External Vox microphone jack
: External loudspeaker jack
: Display   LCD multifunction
: Channel display
: S-meter   Digital
: Modulation modes   AM / FM
: Volume adjustment and ON/OFF
: Squelch   Manual squelch
: ASC
: Channel selector   Up / down
: Mode switch
: F / Menu function key
: Key Beep   , Switchable
: Roger beep   , Switchable
: Channel preselection   2 , emergency channel (EMG) programmable
: Talkback
: Vox
: TOT
: Filter ANL   Built-in
: Filter NB
:Frequency allowance  ± 200 Hz
:Carrier power  4 W (AM/FM)
:Transmission interference  < 4 nW (-54 dBm)
:Audio response   300 Hz to 3 kHz
:Emitted power in the adj. channel  < 20 μW
:Microphone sensitivity  7 mV
:Drain  1,7 A (with modulation)
:Modulated signal distortion  2%
:Max. sensitivity at 20 dB sinad  0.5 μV - 113 dBm (AM) / 0.35 μV - 116 dBm (FM)
:Frequency response  300 Hz to 3 kHz
:Adjacent channel selectivity  60 dB
:Maximum audio power  2,5 W
:Squelch sensitivity  min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
:Frequency image rejection rate  60 dB
:Intermediate frequency rej. rate  70 dB
:Drain  160 ~ 420 mA
