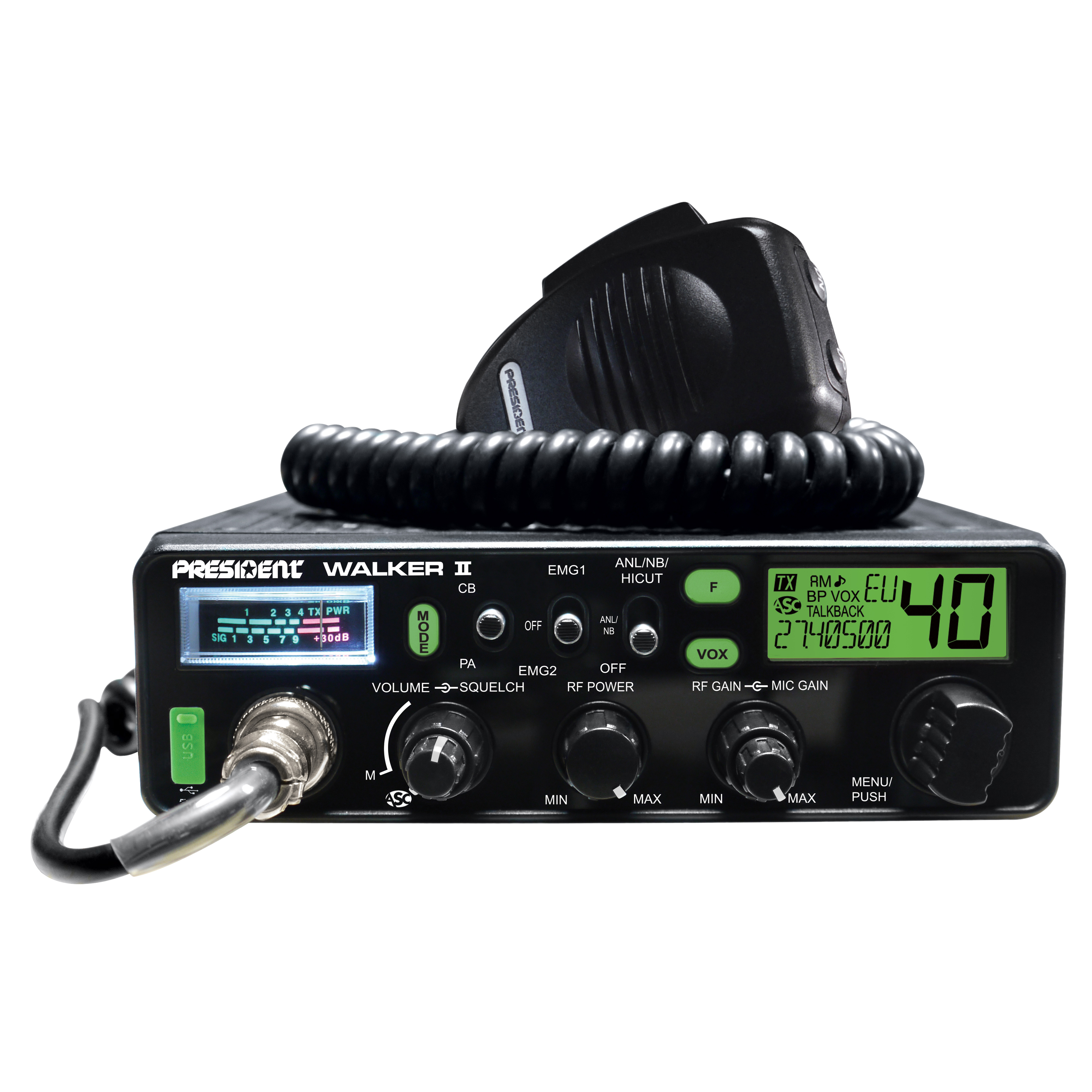

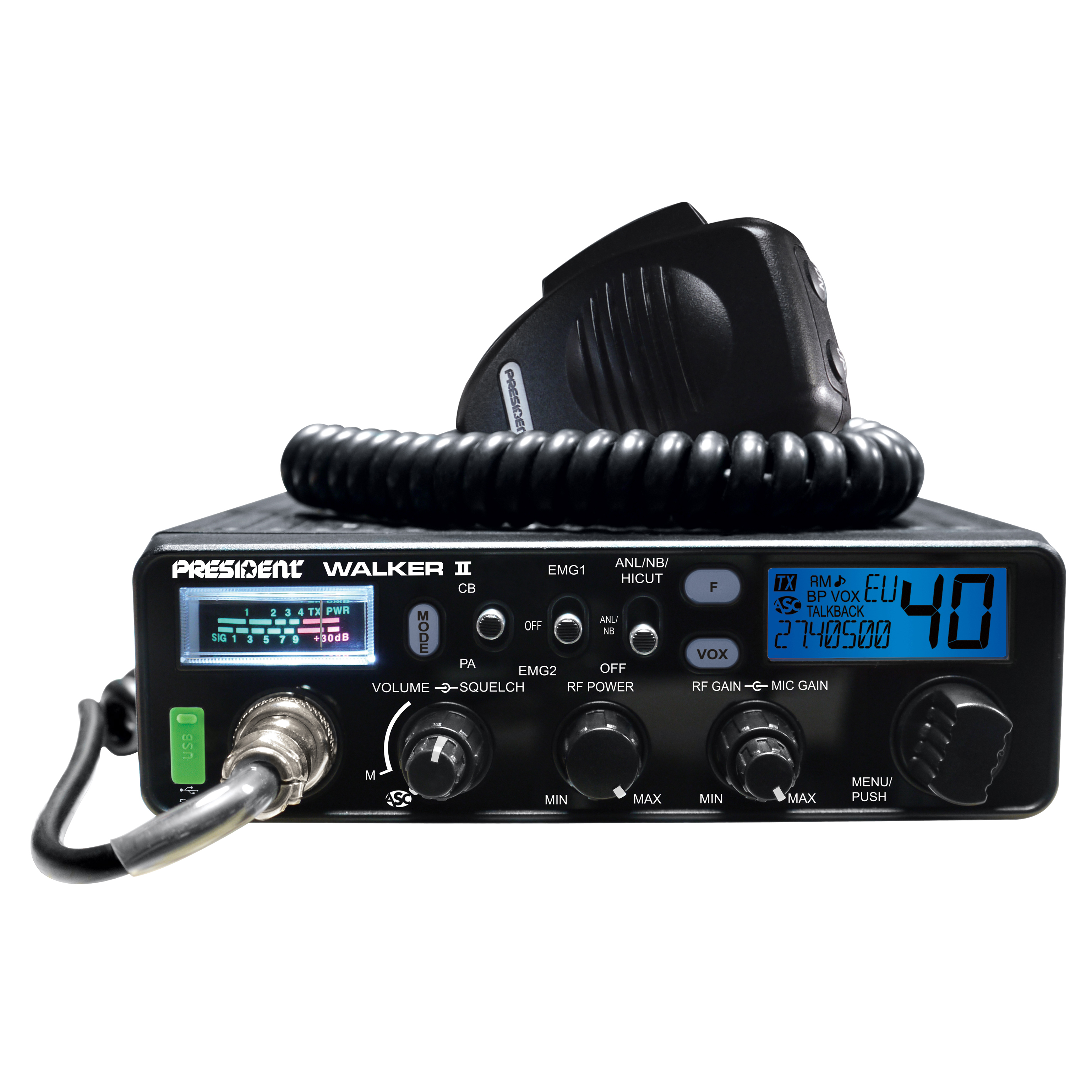

WALKER II

Art. N°: TXPR100
Size (mm) : 170 (W) x 160 (D) x 52 (H) DIN Size : Supply : 12 V AM : FM : Scan : channels Filter ANL : Filter NB : Filter HI-CUT :

Features

: Size (mm)   170 (W) x 160 (D) x 52 (H)
: DIN Size
: Weight   1.1 kg
: Accessories supplied   1 microphone UP/DOWN and its hanger , 1 mounting bracket with fixing screws , power cord with fuse
: Antenna socket   SO-239
: Antenna impedance   50 ohms
: Multiconfiguration   EU / U / D / PL / IN
: Number of channels   40
: Frequency ranges   from 26.965 MHz to 27.405 MHz
: Power supply   13.2 V
: Microphone plug   front (6 pins)
: Compatible microphone type   Electret , Dynamic
: External Vox microphone jack
: External loudspeaker jack
: Public address
: External HP PA socket
: USB socket (front)   5 V / 2,1 A
: Display   LCD multifunction
: Dimmer
: Channel display
: Frequencies display
: S-meter   Vu-meter
: Modulation modes   AM / FM
: Volume adjustment and ON/OFF
: Squelch   Manual squelch
: ASC
: Channel selector   Rotary
: Mode switch
: F / Menu function key
: Key Beep   , Switchable
: Roger beep   , Switchable
: Tone
: Channel preselection   2 , emergency channel (EMG) programmable
: Scan   channels
: RF Power
: RF Gain
: Mike-Gain
: Talkback
: Vox
: Automatic SWR meter
: SWR (Power Reading /SWR)
: TOT
: Filter ANL
: Filter NB
: Filter HI-CUT
:Frequency allowance  ± 200 Hz
:Carrier power  4 W (AM/FM)
:Transmission interference  < 4 nW (-54 dBm)
:Audio response   300 Hz to 3 kHz
:Emitted power in the adj. channel  < 20 μW
:Microphone sensitivity  3 mV
:Drain  < 2 A (with modulation)
:Modulated signal distortion  1.8%
:Max. sensitivity at 20 dB sinad  0.5 µV - 113 dBm (AM) / 0.35 µV - 116 dBm (FM)
:Frequency response  300 Hz to 3 kHz
:Adjacent channel selectivity  60 dB
:Maximum audio power  3 W
:Squelch sensitivity  min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
:Frequency image rejection rate  60 dB
:Intermediate frequency rej. rate  70 dB
:Drain  180 ~ 500 mA maximum
