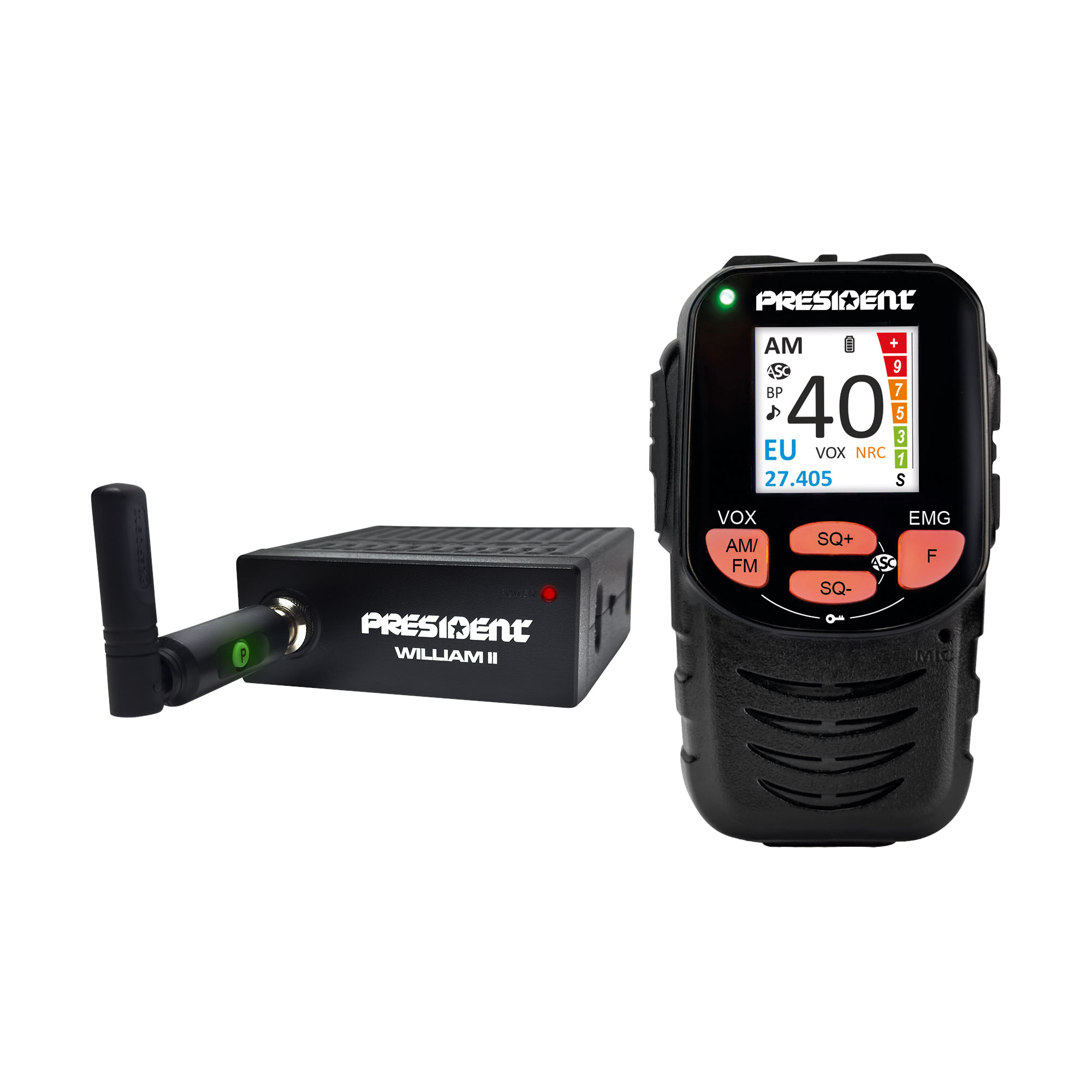

WILLIAM II

Art. N°: TXPR194

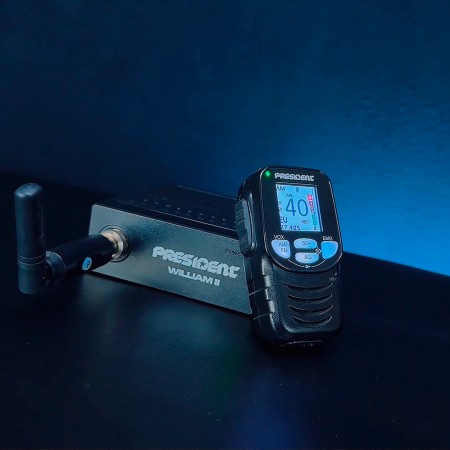

Size (mm) : 115 (L) x 140 (W) x 45 (H) (Black box) / 58 (L) x 40 (W) x 100 (H) (microphone) Supply : 12 V / 24 V AM : FM : Scan : channels Scan Skip : Filter ANL : NRC :

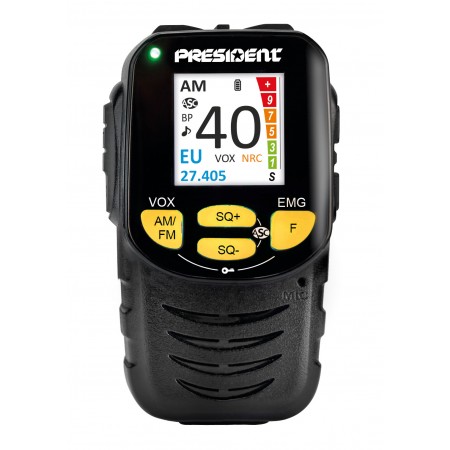

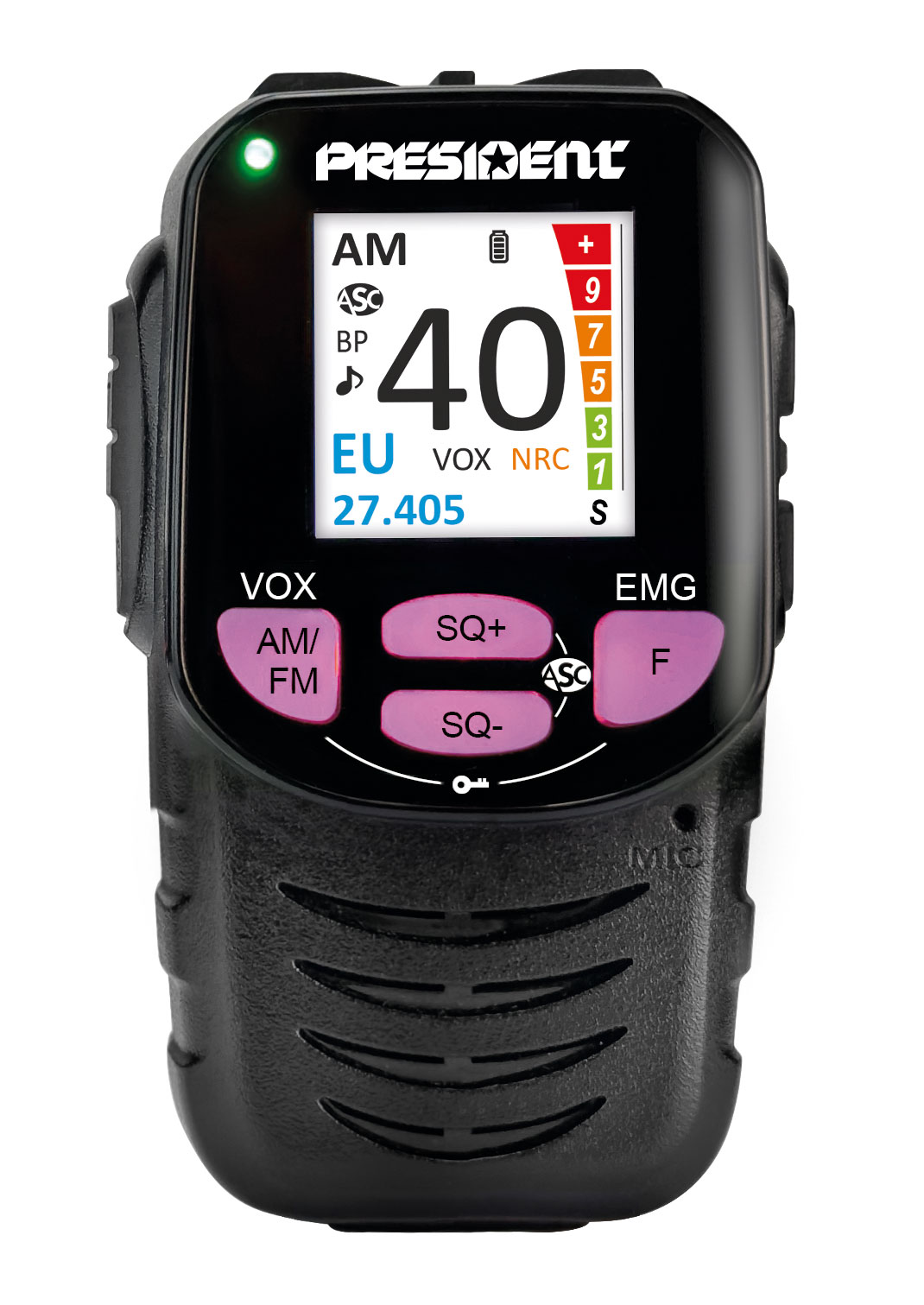

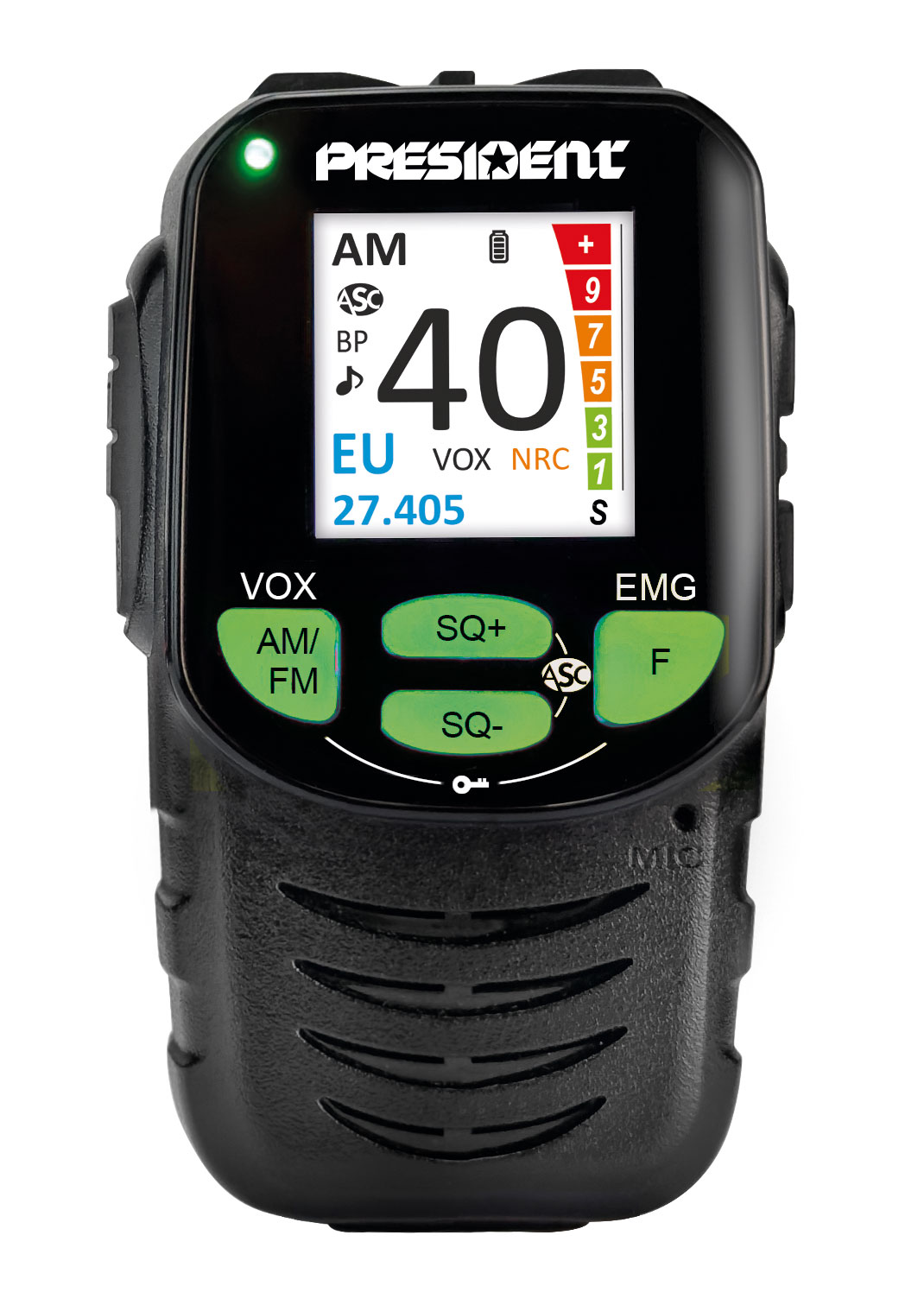

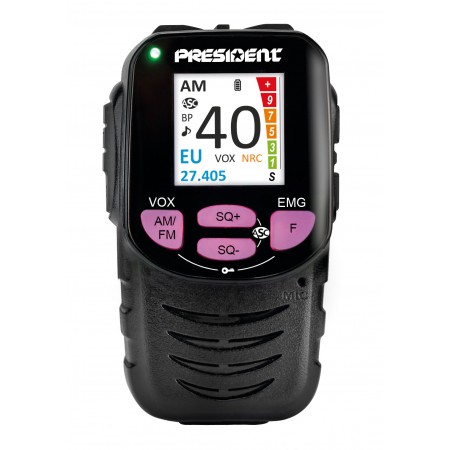

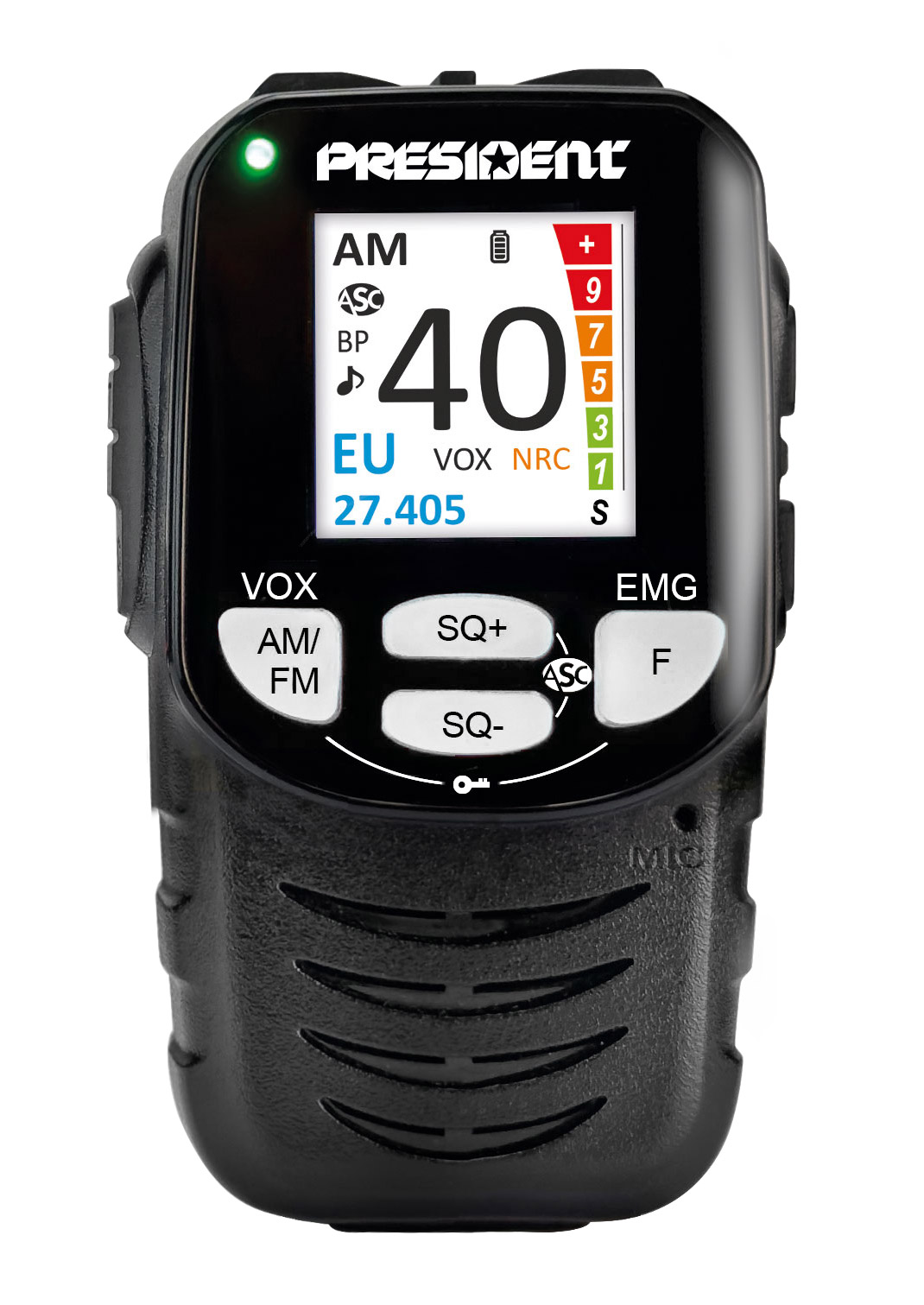

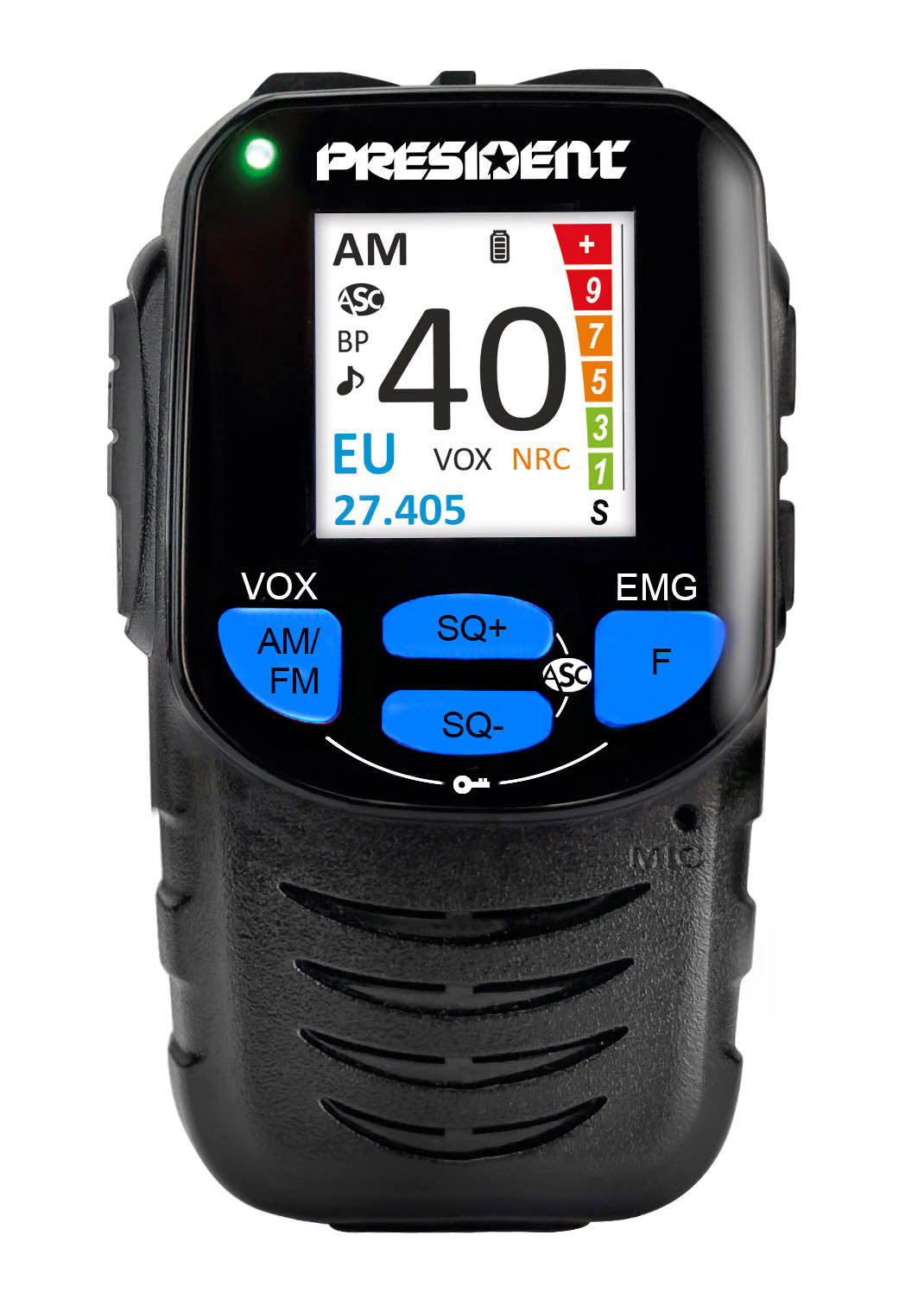

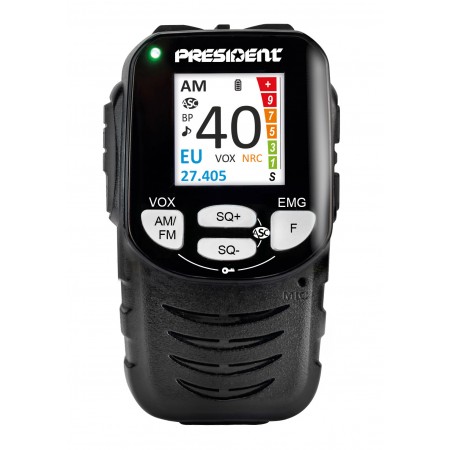

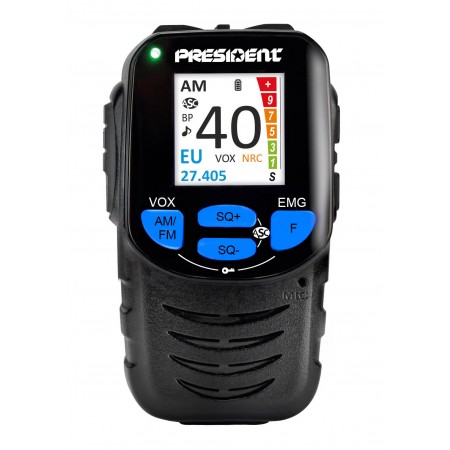

Cordless microphone

Features

: Size (mm)	115 (L) x 140 (W) x 45 (H) (Black box) / 58 (L) x 40 (W) x 100 (H) (microphone)
: Weight	~ 600 g (Black box) / ~ 130 g (microphone)
: Accessories supplied	1 microphone and its hanger , 1 mounting bracket with fixing screws
: Antenna socket	SO-239
: Antenna impedance	50 ohms
: Multiconfiguration	EU / PL / d / EC / U / In / RU
: Number of channels	40
: Frequency ranges	from 26.965 MHz to 27.405 MHz
: Power supply	13.2 V / 26.4 V
: External Vox microphone jack
: External loudspeaker jack
: USB type C
: Display	Digital
: Channel display
: Frequencies display
: S-meter	LED
: Modulation modes	AM / FM
: Squelch	Manual squelch
: ASC
: Channel selector	Up / down
: Mode switch
: Key Beep	, Switchable
: Roger beep	, Switchable
: Key locking
: Channel preselection	2 , emergency channel (EMG) programmable
: Scan	channels
: Scan Skip
: Vox
: TOT
: Filter ANL
: NRC

:Frequency allowance	± 200 Hz
:Carrier power	4W
:Transmission interference	< 4 nW (-54 dBm)
:Audio response	300 Hz to 3 kHz
:Emitted power in the adj. channel	< 20 μW
:Microphone sensitivity	7 mV
:Drain	≤ 2,3 A (13,2 V) / ≤ 1,3 A (26,4 V)
:Modulated signal distortion	2%

:Max. sensitivity at 20 dB sinad	0.5 μV - 113 dBm AM / 0.35 μV - 116 dBm FM
:Frequency response	300 Hz to 3 kHz
:Adjacent channel selectivity	60 dB
:Maximum audio power	2,5 W
:Squelch sensitivity	min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
:Frequency image rejection rate	60 dB
:Intermediate frequency rej. rate	70 dB
:Drain	210 ~ 620 mA (13.2 V) / 110 ~ 310 mA (24.6 V)
