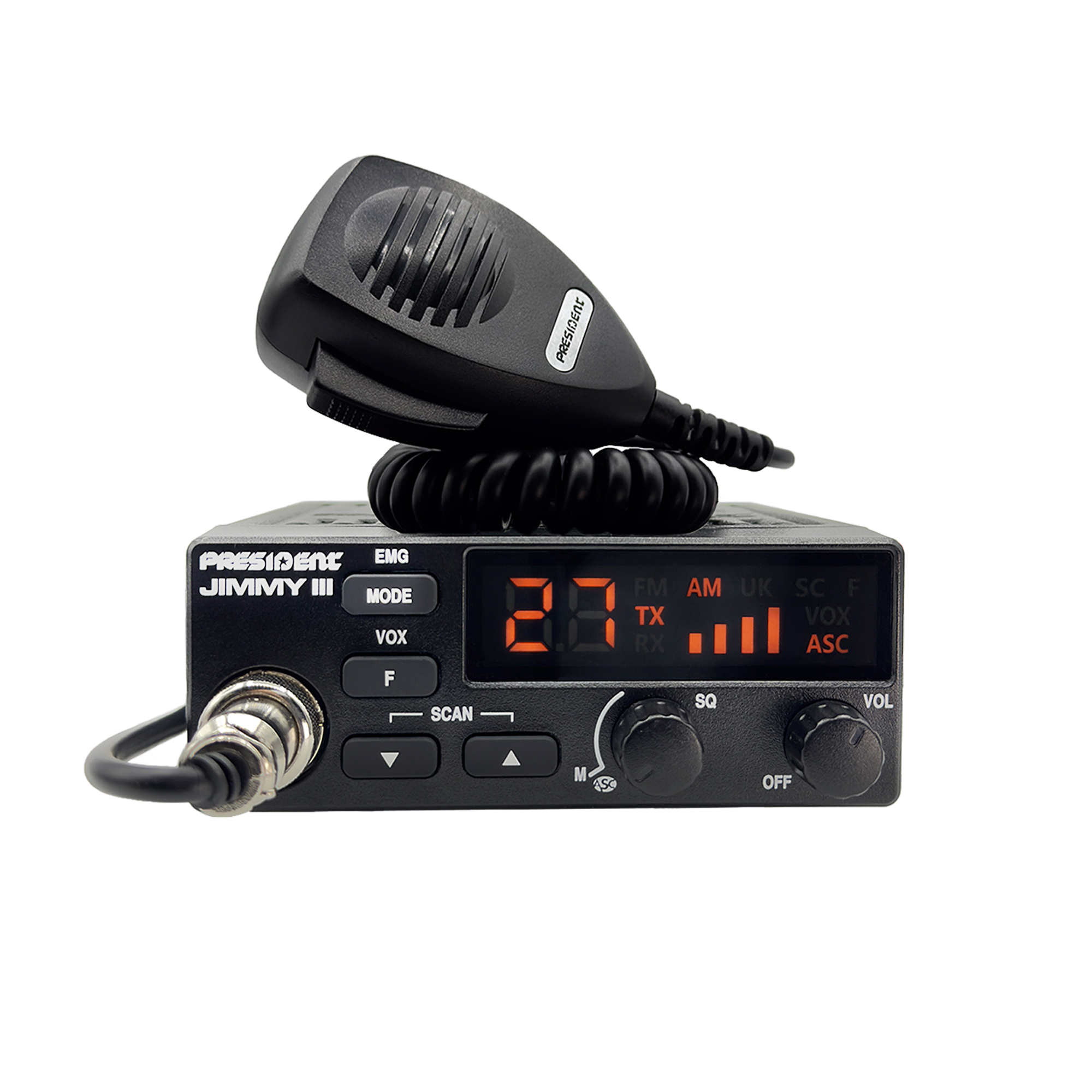

JIMMY III NEW

Art. N°: TXPR046
Size (mm) : 115 (L) x 130 (W) x 45 (H) Supply : 12 V AM : FM : Scan : channels

Features

: Size (mm)   115 (L) x 130 (W) x 45 (H)
: Weight   0.560 kg
: Accessories supplied   1 microphone and its hanger , 1 mounting bracket with fixing screws , power cord with fuse , User manual
: Antenna socket   SO-239
: Antenna impedance   50 ohms
: Multiconfiguration   EU / U / D / PL / IN
: Number of channels   40
: Frequency ranges   from 26.965 MHz to 27.405 MHz
: Power supply   13.2 V
: Microphone plug   front (6 pins)
: Compatible microphone type   Electret
: External loudspeaker jack
: Channel display
: S-meter   LED
: Modulation modes   AM / FM
: Volume adjustment and ON/OFF
: Squelch   Manual squelch
: ASC
: Channel selector   Up / down
: Mode switch
: F / Menu function key
: Key Beep   , Switchable
: Scan   channels
: Vox
:Frequency allowance  ± 300 Hz
:Carrier power  4 W (AM/FM)
:Transmission interference  < 4 nW (-54 dBm)
:Audio response   300 Hz to 3 kHz
:Emitted power in the adj. channel  < 20 μW
:Microphone sensitivity  3 mV
:Drain  < 2 A (13.2 V)
:Modulated signal distortion  2%
:Max. sensitivity at 20 dB sinad  0.5 µV - 113 dBm (AM) / 0.35 µV - 116 dBm (FM)
:Frequency response  300 Hz to 3 kHz
:Adjacent channel selectivity  60 dB
:Maximum audio power  3 W
:Squelch sensitivity  min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
:Frequency image rejection rate  60 dB
:Intermediate frequency rej. rate  70 dB
:Drain  180 ~ 500 mA (13.2 V)
