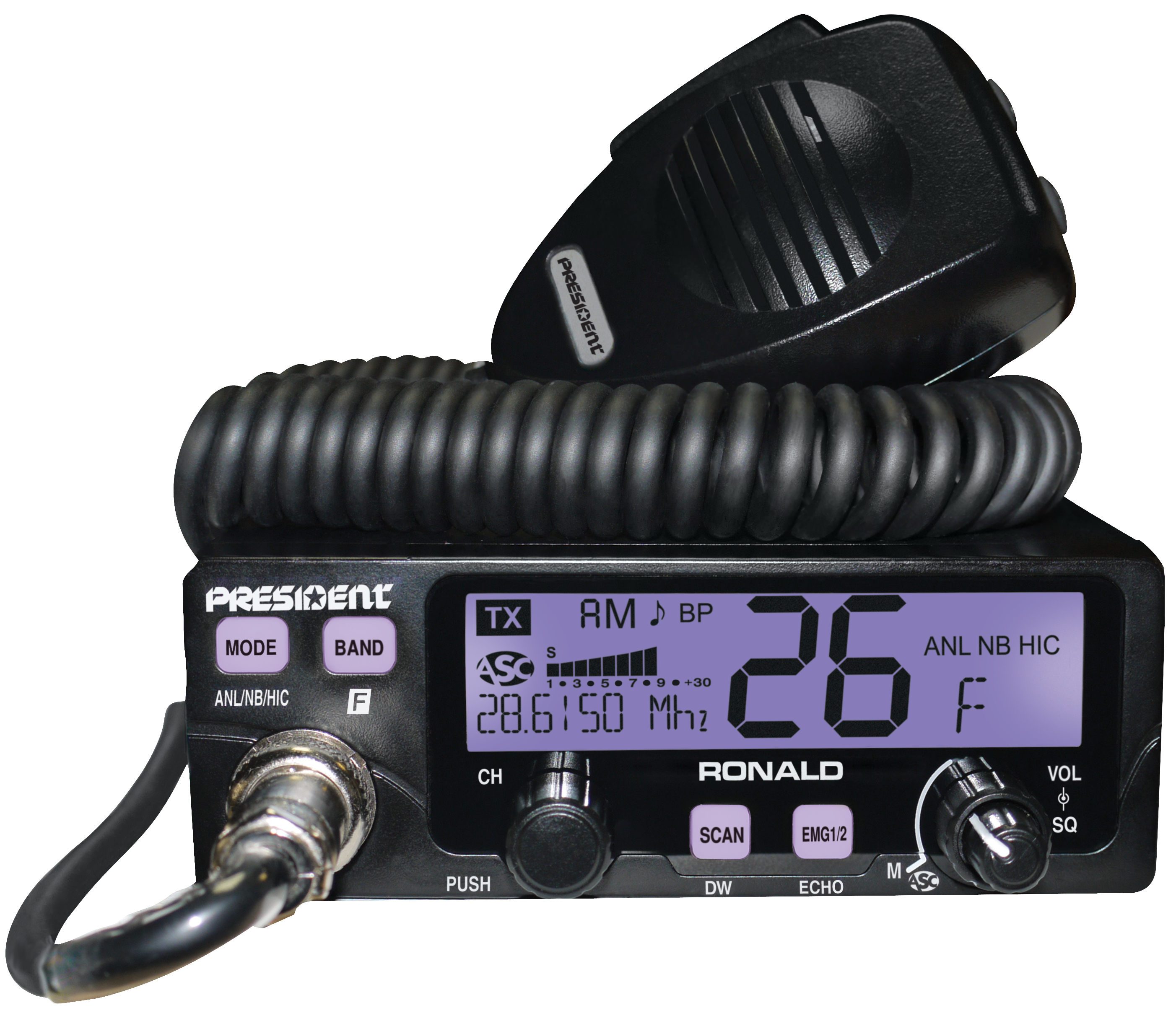

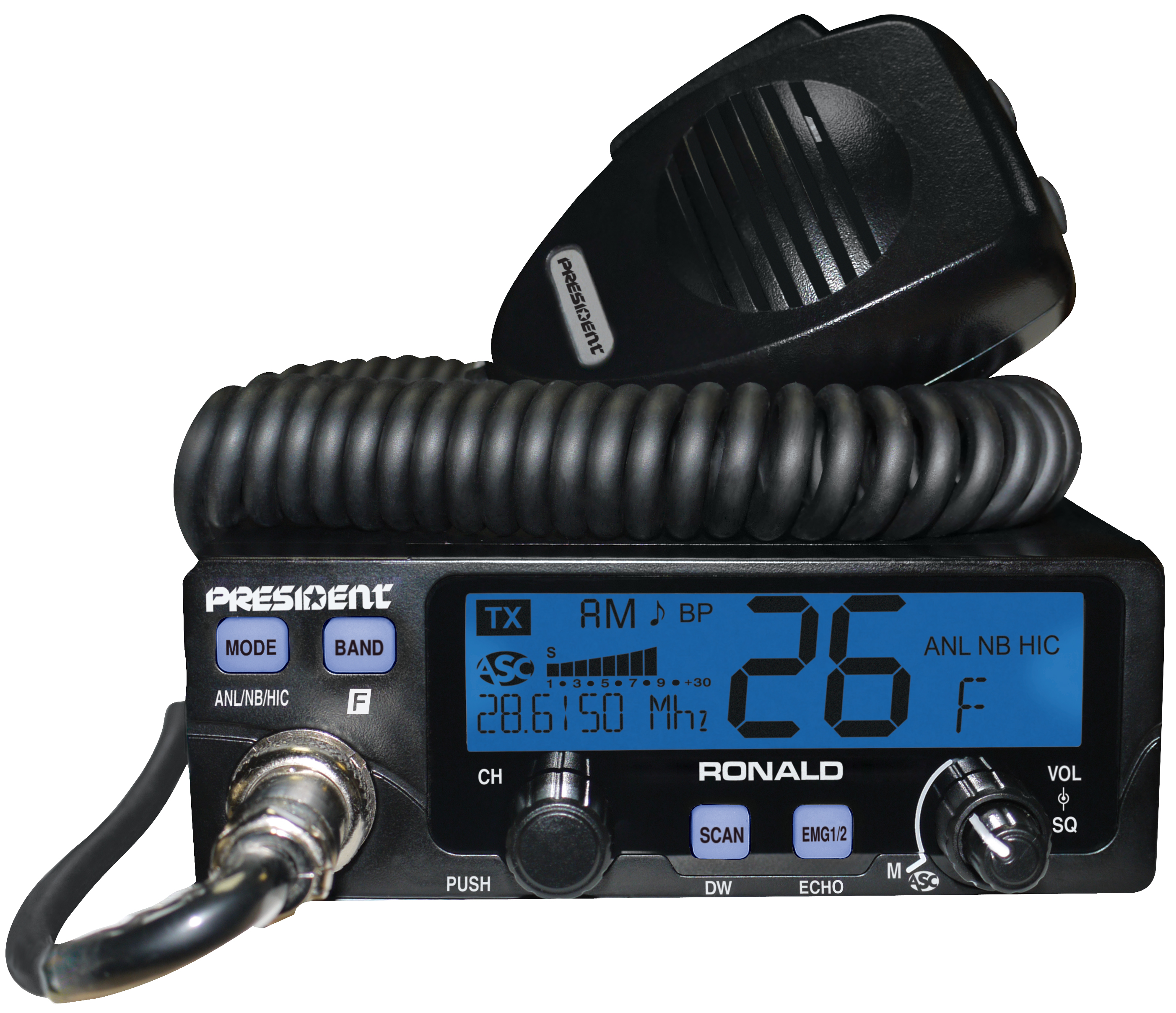

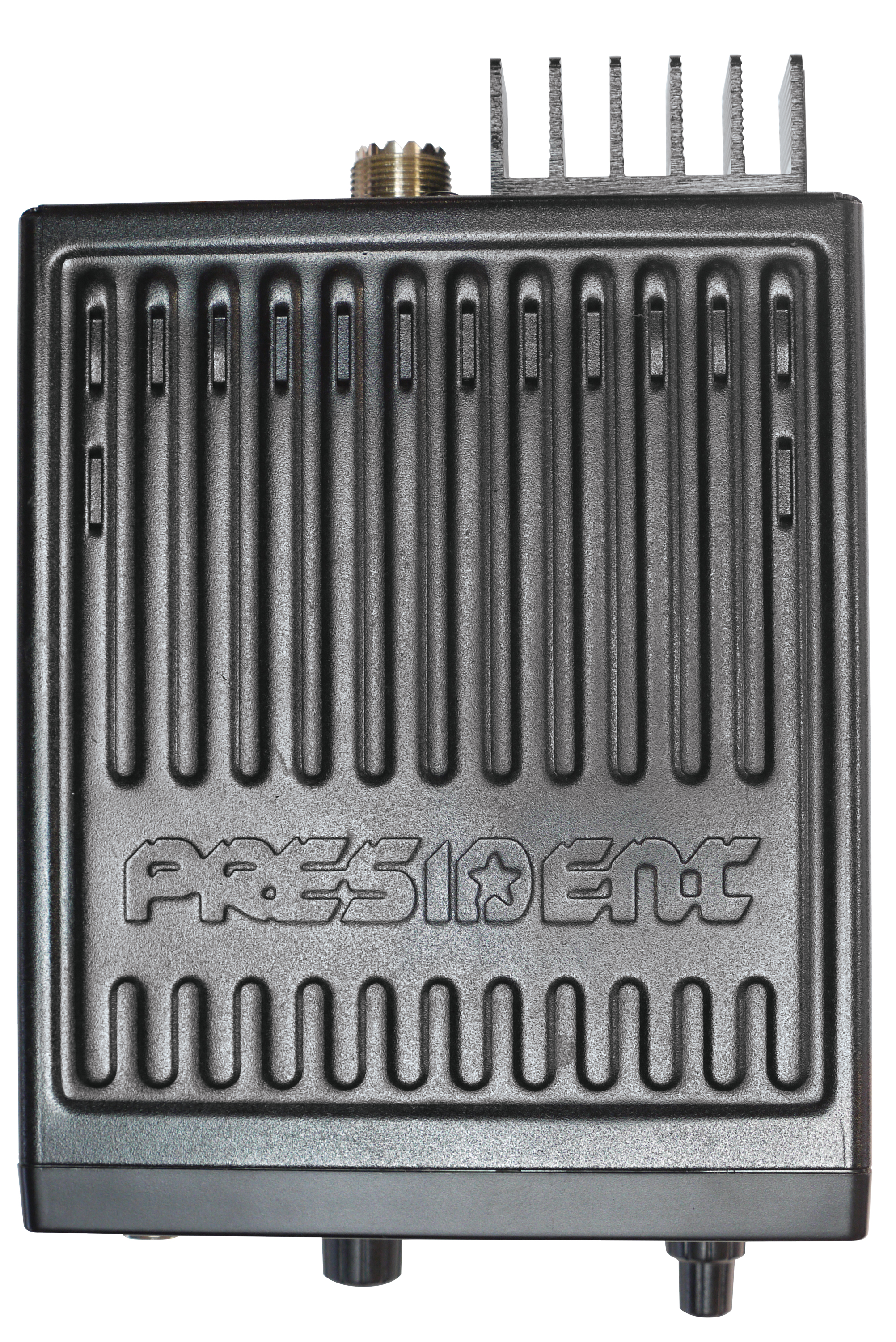

RONALD

Art. N°: TXPR500
Size (mm) : 125 (W) x 175 (D) x 45 (H) mm Supply : 12 V AM : FM : Scan : channels Filter ANL : Filter NB : Filter HI-CUT :

Features

: Size (mm)   125 (W) x 175 (D) x 45 (H) mm
: Weight   0,9 kg
: Accessories supplied   1 microphone UP/DOWN and its hanger , 1 mounting bracket with fixing screws , power cord with fuse
: Antenna socket   SO-239
: Antenna impedance   50 ohms
: Multiconfiguration   EU / U / D / PL / IN
: Frequency ranges   from 28.000 MHz to 29.700 MHz
: Power supply   13.2 V
: Microphone plug   front (6 pins)
: Compatible microphone type   Electret , Dynamic
: External loudspeaker jack
: Public address
: External HP PA socket
: Display   LCD multifunction
: Channel display
: Frequencies display
: Band name
: VFO mode
: S-meter   Digital
: Modulation modes   AM / FM
: Volume adjustment and ON/OFF
: Squelch   Manual squelch
: ASC
: Channel selector   Rotary
: Mode switch
: F / Menu function key
: Key Beep   , Switchable
: Roger beep   , Switchable
: Channel preselection   2 , emergency channel (EMG) programmable
: Span
: Dual watch
: Scan   channels
: RF Power
: RF Gain
: Mike-Gain
: Talkback
: SWR (Power Reading /SWR)
: Echo
: TOT
: Filter ANL
: Filter NB
: Filter HI-CUT
:Frequency allowance  ± 300 Hz
:Carrier power  13 W AM (50 W PEP) / 35 W FM
:Transmission interference  < -50 dBc
:Audio response   300 Hz to 3 kHz
:Emitted power in the adj. channel  < 20 μW
:Microphone sensitivity  3 mV
:Drain  7 A max. (with modulation)
:Modulated signal distortion  2%
:Max. sensitivity at 20 dB sinad  0,7 μV -110 dBm (AM) / 0,35 μV -116 dBm (FM)
:Frequency response  300 Hz to 3 kHz
:Adjacent channel selectivity  60 dB
:Maximum audio power  3 W
:Squelch sensitivity  min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
:Frequency image rejection rate  60 dB
:Intermediate frequency rej. rate  70 dB
:Drain  500 mA max
